Einleitung

Is a smattering of dead pixels totally harshing your videos' mellow? Replace that bad image sensor with a new one and get all of your resolution back.

  1. iKxmSaprI5WQlJBG
    iKxmSaprI5WQlJBG
    k4NOxtlEJWlIQmdQ
    • In the next few steps, you will be releasing the clips that hold the lens in place. Do not try to completely remove the lens until all the clips have been released.

    • Hold the iON in your hands with your thumbs on the clips next to the middle of the lens.

    • Pull the rubber housing apart to release the first two clips.

  2. ZCe2ox1cglhnnKrk
    ZCe2ox1cglhnnKrk
    SBH2mQQKDGmCrvFE
    • Grab the inside of the plastic nose rest with your thumb and index finger.

    • Rotate the nose rest upwards until you feel that it is free from the lens.

  3. fQpG4HRxXIebH6qH
    fQpG4HRxXIebH6qH
    f1K1STWgJp1neYkC
    • Rotate the device 180 degrees.

    • Grab the top of the goggle frame that holds the camera assembly.

    • Rotate the frame outwards until you feel that the clips inside it are free.

  4. i1JNLPNawmTORMVC
    i1JNLPNawmTORMVC
    f3BFTtHOCLdDbfHL
    • While firmly holding the goggles with the palm of one hand, grab the top right corner of the frame and rotate it away from the lens.

  5. ZXDNLCn2oyCe6IZW
    ZXDNLCn2oyCe6IZW
    qmotDjKo3vbgSkLg
    • The lens should now be barely attached to the frame. If it still feels firmly attached, repeat any necessary steps to free the clips.

    • While holding the goggles in one hand, use the other to grab the lens from opposite ends, and rotate it out of the housing and away from any remaining clips.

  6. BOKPVMrKZsBALWjY
    • Remove the four 7.1 mm Phillips screws securing the camera housing to the goggle frame.

  7. urjIlYSScEwVCJ4d
    urjIlYSScEwVCJ4d
    vHooTlaR2tHDtSTM
    X12mCJjkt2MLHbEM
    • Peel back the rubber battery cover from the inner left side of the frame.

    • While firmly holding the battery cover, pull the bottom of the strap mount cover up and off of the frame

  8. 35SCVriqAopuMvWf
    35SCVriqAopuMvWf
    SnHLvRpiphWoFeeV
    • Once the bottom is free, continue pulling to free the top of the strap mount cover from the frame.

  9. lAOIcIrLBTjIT6jk
    lAOIcIrLBTjIT6jk
    WNd1kl2vnkEXCjAI
    • Pull the battery out of its recess in the frame.

    • The battery is connected to the entire camera assembly and cannot be completely removed by itself.

  10. KJUhUCUPPdlWFxnv
    KJUhUCUPPdlWFxnv
    BJXo5VvhU6IUoRqy
    KRNteFfLeNKEXZJV
    • Peel the rubber keypad cover up from the inner right side of the frame.

    • While firmly holding the keypad cover, pull the top of the strap mount cover up and off of the frame

  11. tHXwISvOIoZOtEUI
    tHXwISvOIoZOtEUI
    EJYcUSbgEYPvU1Og
    • Once the bottom is free, continue pulling to free the bottom of the strap mount cover from the frame.

  12. YnugdKEqG5CaddBR
    YnugdKEqG5CaddBR
    dTUqKYbHg4lL34PF
    • Hold the strap mount cover away from the frame and remove the keypad.

  13. p3weOTkSrmSYuAlS
    p3weOTkSrmSYuAlS
    PFBH2VnDF3WoYoZ1
    r4ClA4akUfunYqqQ
    • Grab the viewfinder housing and pull it out of its recess.

    • Just like the battery, the viewfinder housing is connected to the rest of the camera assembly and cannot be removed by itself.

  14. HFmSwuMTkhVIGpSi
    HFmSwuMTkhVIGpSi
    5BnuWwhPyLaLfV2h
    OmEEUVgXshjYmkJv
    • Place one of your hands near the center of the frame with your thumb next to the camera housing.

    • With your other hand, grab the camera housing and pull it up and out of the frame.

  15. GVTlaHfrnRomHh5g
    GVTlaHfrnRomHh5g
    ibtEPV4Wh6LbQkKH
    • Remove the viewfinder assembly by pulling it through the opening in the top of the frame.

  16. pfJARiHf4UxPn6fG
    pfJARiHf4UxPn6fG
    IgYqIPs1pKMUDfcE
    • In the same manner described above, remove the battery from the frame.

  17. qrNRvjvV4Cl3kawy
    • Remove the following four screws securing the back cover of the camera housing:

    • two silver 8.5 mm screws,

    • two black 8.8 mm screws.

  18. WUVOgLmFotekqAGr
    WUVOgLmFotekqAGr
    vcyNQlxTuSHknXWp
    • Peel the white sticker off the bottom of the camera housing.

  19. saKSjWRVNA2gnVdX
    saKSjWRVNA2gnVdX
    t6vJC2EM111EwYAb
    D2KkUAw6BEagO5iY
    • Lift the back cover off the camera housing and remove it.

  20. Z6BNcsWbpLiTZcRS
    Z6BNcsWbpLiTZcRS
    NgpFRO3ZO5MM3mfe
    • Use the tip of a spudger to pry up the retaining flap of the camera sensor cable ZIF connector on the motherboard.

    • Be sure that you are prying up on the hinged flap, not the connector itself.

  21. xcVFGXlUhjZHRGXL
    xcVFGXlUhjZHRGXL
    PfGjjk5DEaccpcch
    • Pull the camera sensor ribbon cable straight out of its connector on the motherboard.

  22. fSLuFbnglcOUVNYa
    fSLuFbnglcOUVNYa
    2KYxuL6bHPk5uUWW
    GSO2ivjivYTh3DZx
    • Grab the edge of the motherboard and gently slide it out of the camera housing.

    • There may be some resistance due to the foam pad along the bottom of the camera housing.

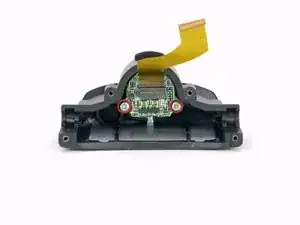

  23. 1jBOQ1qJNUwruCmG
    • Remove the two 9.3 mm screws securing the camera sensor board to the camera lens housing.

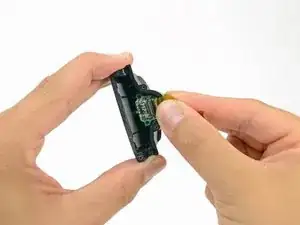

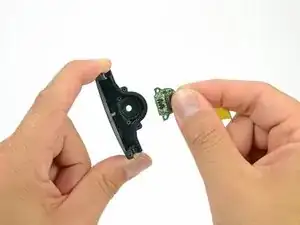

  24. qQ5udSVriPZDZ6Zw
    qQ5udSVriPZDZ6Zw
    sZD4WaGUumsugvHA
    • Grab the camera sensor ribbon cable and remove the sensor board from the camera lens housing.

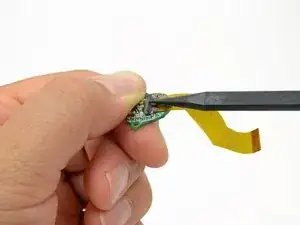

  25. TDTZiESmZSxDbVxr
    TDTZiESmZSxDbVxr
    4WYaEuxNfBmIndSo
    • Use the tip of a spudger to flip up the locking tab on the camera sensor ribbon cable ZIF connector.

    • Be sure to pry up on the locking tab and not the connector itself.

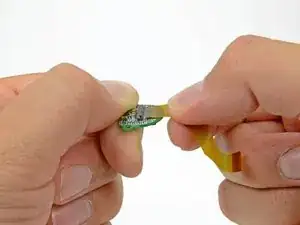

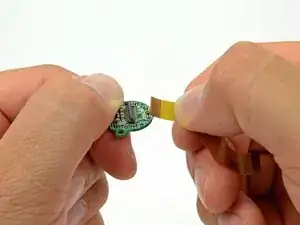

  26. VL1GMAsDx2IOxn1u
    VL1GMAsDx2IOxn1u
    CvghnkWyCVbEQ12m
    • Pull the camera sensor ribbon cable straight out of its socket on the camera sensor board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
