This guide is going to explain the process of deconstruction of the Zeepad 7DRK and eventual removal of the device's battery for easy replacement.
Werkzeuge
-
-

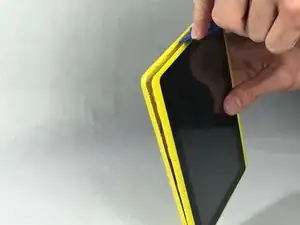

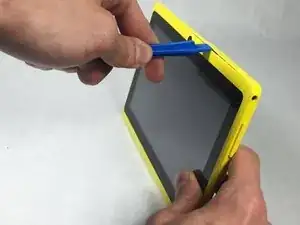

Begin the process by prying off the back of the Zeepad using the opening tool.
-
Start by edging the corner of the opening tool into the edge of the device and work your way from there until the back cover is removed.
-
-
-
Once the back casing has been removed, identify the location of the battery inside the device, marked with the red circle.
-
-
-

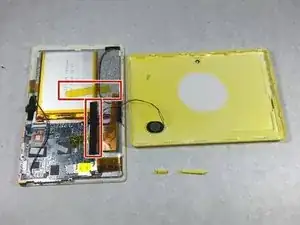

Identify the pieces of tape holding the battery to the back of the screen, and peel them off to remove them.
-
-
-

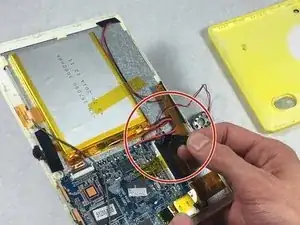

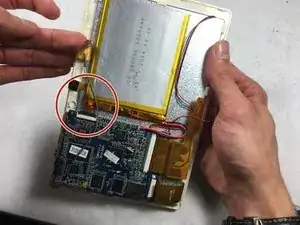

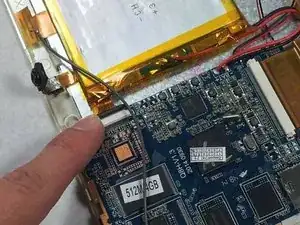

Locate the connection between the battery and motherboard, and disconnect it by pulling the two apart.
-
-
-

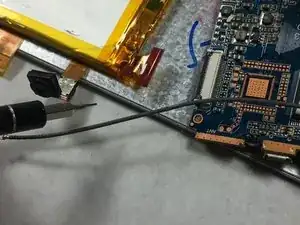

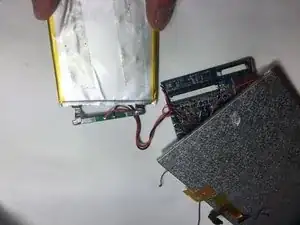

To finally finish removing the battery, the two wires connecting to it must be separated.
-

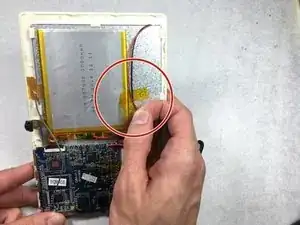

Peel back the tape covering the origin of the wires.
-

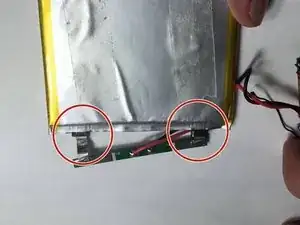

Finally, remove the two metal connectors attached to the green piece from the battery with a tug.
-

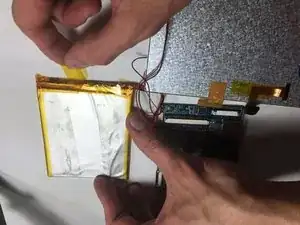

The battery has now been successfully removed.
-
To reassemble your device, follow these instructions in reverse order.
