Einleitung
This guide is going to explain how to take the device apart to remove the speaker for eventual replacement.
Werkzeuge
-
-

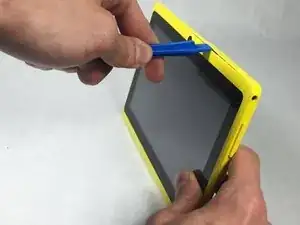

Begin by popping off the plastic yellow device casing with the soft tip prying tool.
-
Start by using the wedging the tip of the tool in and working your way around the device to make things easier.
-
-
-

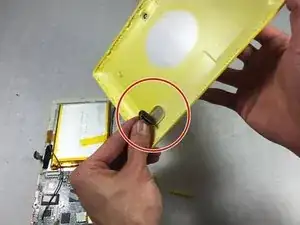

Once the device is opened, the speaker should fall out of its position.
-

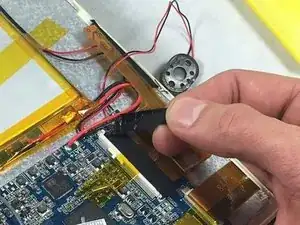

Follow the red and black wires attached to the speaker to find the location of connection.
-
-
-

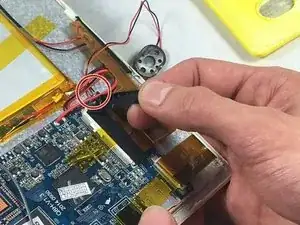

The red and black wires are attached by a solder, in order to be replaced this connection must be broken.
-
Once the wires are disconnected, the speaker will be successfully removed and ready for replacement.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
