Zeki Droid Tablet Front Screen Replacement

Geschrieben von: Kyla

Kommentare: 0

Zeki Droid Tablet Front Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

1 - 2 Stunden

Einleitung

Use this guide to replace the screen on the Zeki Droid TBDC1093B.

Follow these instructions to disassemble the Zeki Droid and gain access to the broken screen. To prevent injury, I recommend following this guide to reinforce the broken glass.

Werkzeuge

Schritt 1

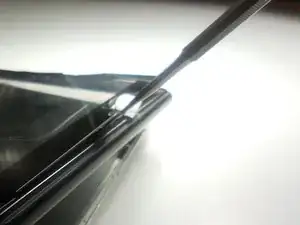

Remove the back casing by slowly popping each tab out with a plastic opening tool.

Schritt 2

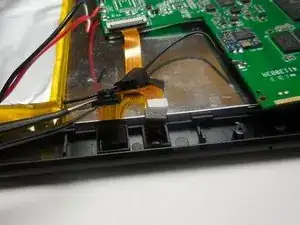

Remove the tapes one by one from the connecting wires with tweezers.

Schritt 3

Remove the black clips from both sides of the casing with a plastic opening tool.
The clips should pop off separate from the speakers.

Schritt 4

Remove the speakers from the back casing.
Do not tug on the speakers because they are connected to fragile wires.

Schritt 5

Pull the speakers away from the back casing carefullly.

Schritt 6

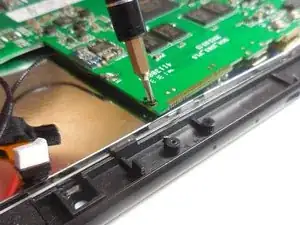

Detach the motherboard from the framing by removing the four screws using a Phillips #000 screwdriver.

Schritt 7

Lift the camera and flash components from their fittings using tweezers.

Schritt 8

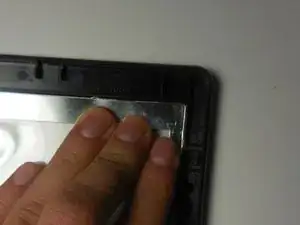

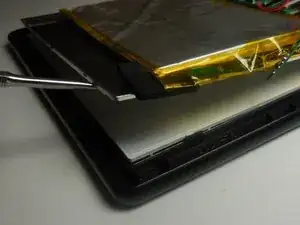

Lift the metal framing to reach the components at the front of the device.
Do not pull the framing completely off. There is a ZIF connecter holding it in place.
