Zenithink ZTPAD ZT280 C91 Screen Replacement

Geschrieben von: Nicholas Davis
  • Kommentare: 0
Zenithink ZTPAD ZT280 C91 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

20 - 25 Minuten

Einleitung

Be sure to follow the prerequisites to this guide. Skipping steps can lead to damage to your device.

  1. RlFagdAehwjopZqk

    • Remove the two screws on the bottom using a Phillips #00 screwdriver.

    • For differentiation purposes, these screws are 4mm long.

  2. LCdXYb2rPWsRodtm
    LCdXYb2rPWsRodtm
    WfE5cobJL2yiLxdB
    DgswXUx2LnQvTKZA

    • Using a spudger, start prying the case apart by working around the edge slowly.

    • Be careful not to damage any of the latches that hold the back panel in place, especially if you are using a metal spudger.

    • While prying, be careful to not lose the power and volume buttons; the case is the only thing holding them in place so they will easily come out once the panel has been removed

    • Be careful to not damage the speaker cables, they will still be connecting both panels.

  3. 2Sa2MKTAtyUy2h61

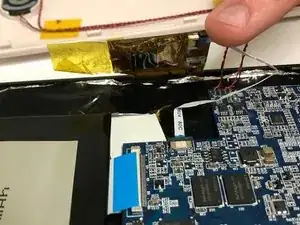

    • Peel back the touch interface chip (which is on the top right of the motherboard, covered in yellow tape.)

  4. FgYjUpHBxGCxqn31

    • Flip up the small gate and unplug the ribbon cable shown.

  5. yVNyS2oHdiZEAjHX

    • Using a Phillips #00 screwdriver, remove the screws highlighted with the orange rings as shown in the picture.

    • For differentiation purposes, these screws are 3.5mm long.

  6. OjlswMTZDSRLKsKu

    • Slide back the plastic latch for the main display cable.

    • Carefully unplug the cable with tweezers.

  7. LyRAPnpPpxFaNsiT
    LyRAPnpPpxFaNsiT
    gyEteNdWXVLrvE5v

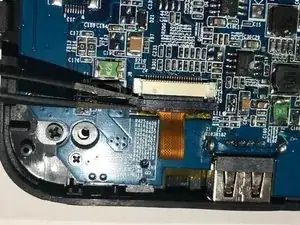

    • Slide back the plastic latch for the camera cable.

    • Carefully unplug the cable with tweezers.

  8. EvqmSsJOapbwMutw

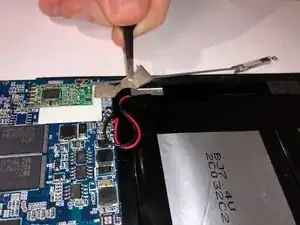

    • Peel back the reflective tape.

  9. TrLNG3xGhMIZdxXS
    TrLNG3xGhMIZdxXS
    IPES4eBpDCAI6LD1

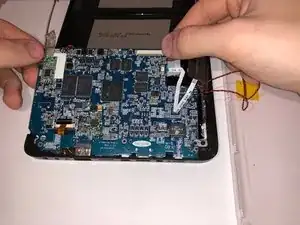

    • Lift up the motherboard assembly, starting by lifting up the top.

    • Be careful not to damage any of the ports on the underside of the tablet.

    • The camera cable will slide through a small notch and end up underneath the board.

  10. 3bIPwOJqCHBAQFwG

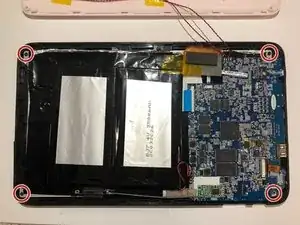

    • Remove the four highlighted screws using a Phillips #1 screwdriver.

    • For differentiation purposes, these screws are 4mm long and have a larger head than the rest of the screws.

  11. hyPgl4j1wBHBfWW4

    • Starting from the top, slowly lift everything up out of the front panel.

    • Remove the front panel off of the device.

    • Be careful not to damage the ports along the bottom.

  12. ef6gQZe6KKpGCllV

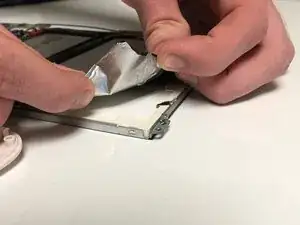

    • Peel back the adhesive from one of the top corners.

    • We recommend to use only your hands to avoid damage to the battery.

  13. NxDtfywGP5MBWPEU

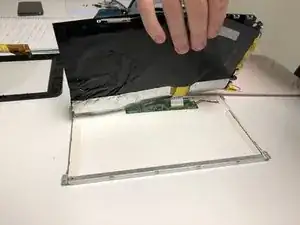

    • While you're peeling the adhesive back, be careful because the display is connected by a cable on the right.

  14. IaqGJAENglalQpO3

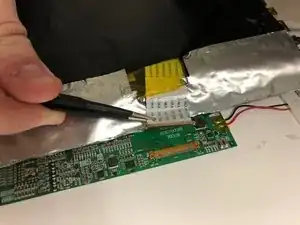

    • Using tweezers, slide back the latch and unplug the ribbon cable.

    • Remove the display from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
