Zoll Impact Uni-Vent 731 Gas Output Kit Replacement

Geschrieben von: Peter Bishop
  • Kommentare: 0
Zoll Impact Uni-Vent 731 Gas Output Kit Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

20 Minuten

Einleitung

This information can be found on page 58 of the Zoll Impact Uni-Vent 731 Ventilator Guide on the iFixit page for the ventilator. This is one of the simplest repairs that can be done on this model of Zoll ventilator and should be done whenever there is a leak in the gas line on the ventilator and you have already identified that the hose is still in good condition.

  1. bQJRJrIlXjFtPvKt

    • Remove the damaged fitting by unscrewing with a 1-inch deep socket wrench.

  2. yJFgrB2gRfPMgqOn

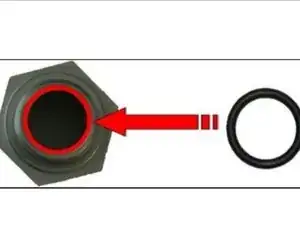

    • 2 Place O-ring unto underside of outlet fitting.

  3. 6DcLoBHkZ5Vfs2SC

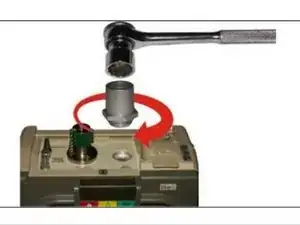

    • Place fitting and O-ring unto Gas Output and tighten with a 1” deep socket wrench. (Do not cross thread).

  4. YSoYCg4E1MeURBgj

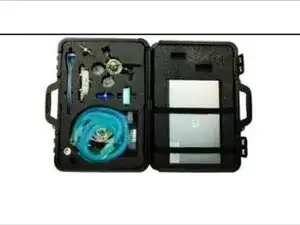

    • Perform HiPot Testing then perform Functional Test using the RCS.
