Zoom H1 Handy Recorder Battery Terminal Replacement

Geschrieben von: Alex
  • Kommentare: 8
Zoom H1 Handy Recorder Battery Terminal Replacement

Schwierigkeitsgrad

Difficult

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

Outline what you are going to teach someone how to do.

  1. dIqWkNAjIaniGPso

    • Place the device so the display is down.

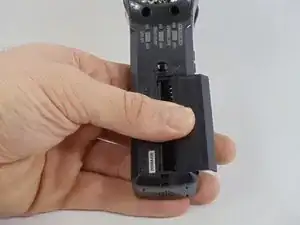

  2. EAKFmBfuEIXEUgUh

    • Remove the battery cover, pressing down on the tabs and sliding.

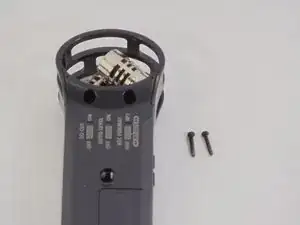

  3. K3NIcfgjZvYoEW1T

    • Unscrew the two (2) #00, 10 mm screws located below the mic on the back cover

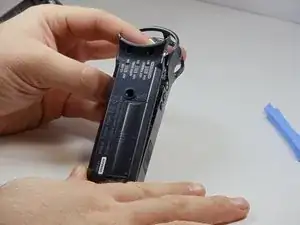

  4. K5Cq6ESvdVUSRhk3

    • Carefully pry up the top end of the back cover using one finger

    There is a third screw right next to the serial number sticker on mine.

    Ricardo Teixeira -

  5. ngKAH4WUMY1jiDG5

    • Remove the back plate by using a plastic removal tool to pry the back cover up around the edges.

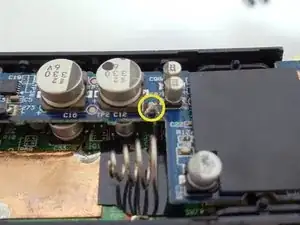

  6. 3Q5tkJpDWvMvvEIe

    • De-solder at terminal point one.

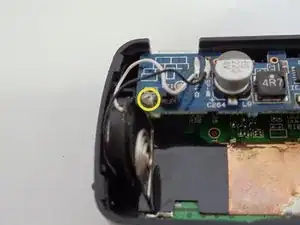

  7. RHtD3ISqWnreWYEK

    • De-solder at the second terminal point.

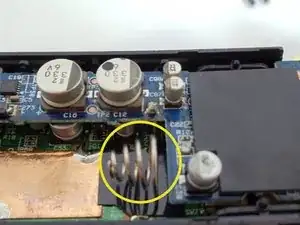

  8. MUoMOrwFfnFduXMi
    MUoMOrwFfnFduXMi
    N1KpuLPAnNTh5YBH

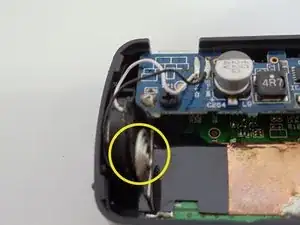

    • Remove the faulty terminals

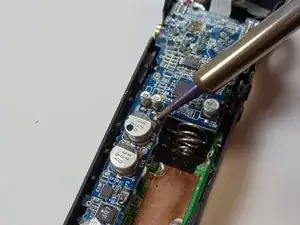

  9. dKfnE3VvKGJaRvBO

    • Place new lead in at point one and re-solder at the point.

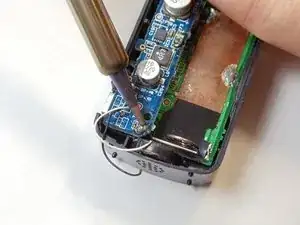

  10. ckcGQgfiK41FKK1b

    • Place second lead at point 2 and re-solder.

Abschluss

To Re-construct device, perform these steps in reverse order.

Tinte & Feder

Alex

Mitglied seit: 28/10/13

809 Reputation

7 Kommentare

Caution is needed with step 5. My backside broke off using a spudger to attempt to remove.

Joe Vaughan -

Mine has third screw under the serial-number sticker.

halluciana -

Can anyone advise where to find replacement terminals? My zoom h1 has bad corrosion of its battery terminals and I would like to follow this guide to fix them! Thanks!

Dylan St John -

My zoom h1 is just dead with no reason , can i fix my zoom h1 with this guide ??

Jas Jes! -

Same problem, without any reason it is dead

eevilcute -

Where can i find the replacement battery terminals?

krissie_prime -

My zoom h1 just dead exactly after 2 years with no reason. It doesn’t turn on. The battery terminals are in good condition. Any ideas?

btw yes there is a third screw under the serial-number sticker.

Paco Raya Morales -
