Einleitung

  1. CtFvUEhkhdcydHPb

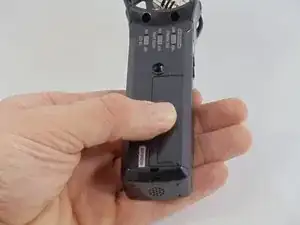

    • Turn the device over with its display down.

  2. YTsfHgkBqmWmxhMG

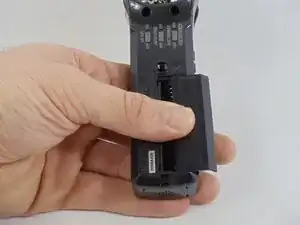

    • Remove the battery cover, pressing down on the tabs and sliding.

  3. FIddpfhYZHbil3N5

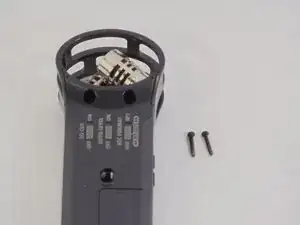

    • Unscrew the two (2) #00, 10 mm screws located below the mic on the back cover.

  4. NZ2wklsW5W52Nbg3
    • Carefully pry up the top end of the back cover using one finger.

  5. vVWacZfeSZQqELEx

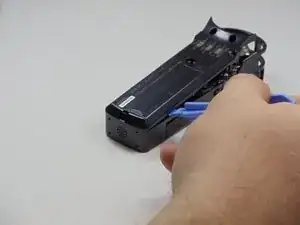

    • Remove the back plate by using a plastic removal tool to pry the back cover up around the edges.

  6. EUFUhLAabPP2XjQd

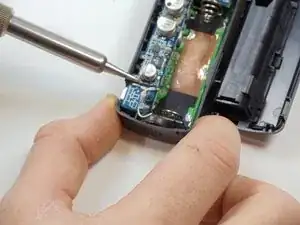

    • De-solder the white and black speaker wires from their soldering points.

    • Speaker soldering points are located on the thin section of the blue circuit board, and are marked with “SP+” and “SP-”.

    • Keep in mind which color wire was connected at which terminal.

  7. YKvT2OBbVhChMaI4
    • Remove the damaged speaker from its place at the very bottom of the case, just below the battery input.

    • You will have to break the glue holding the speaker in place before removing it.

  8. NtyrAQSd5Wx15Twj
    • Replace the damaged speaker and re-solder to the original solder points.

    • Ensure that the negative wire is soldered to the “SP-” while the positive wire is soldered to the “SP+” point.

Abschluss

To reassemble your device, follow these instructions in reverse order.
