  1. NKTEhKH5hjWEiRWL
    • Turn the device over with its display down.

  2. 1OFtmPMjVE65vQGM

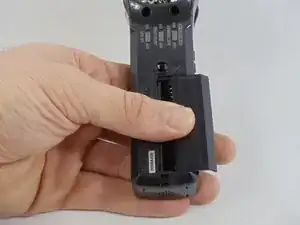

    • Remove the battery cover, pressing down on the tabs and sliding.

  3. LYhFJMOwDxWieQIm

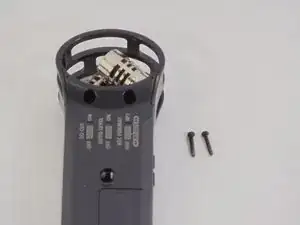

    • Unscrew the two (2) #00, 10 mm screws located below the mic on the back cover.

  4. wrNvFTCxfyWSoBOi

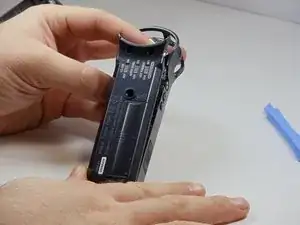

    • Carefully pry up the top end of the back cover using one finger.

  5. r3dxhHFVsIdMZfdX
    • Remove the back plate by using a plastic removal tool to pry the back cover up around the edges.

  6. XSEPPsewd2ZpyBlT
    • Unscrew the circuit board screw.

    • This screw is located down near the bottom of the device on the blue circuit board. It is just to the right of the USB port.

  7. kpmDeAi2CTEXUsHk

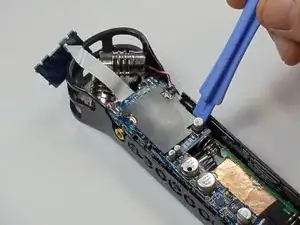

    • Use a plastic removal tool to disconnect the blue circuit board from the green circuit board underneath.

  8. BoY3EOoYhL2welsJ

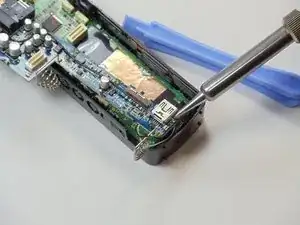

    • Turn the circuit board on its side to reveal the USB soldering points.

  9. O2SooQDZHCGImORy

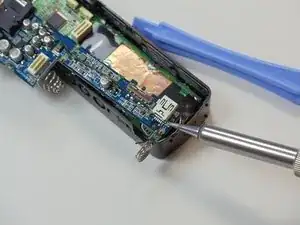

    • De-solder the USB port from its four soldering points.

    • Be careful not to damage the wire connected to the USB port during de-soldering.

  10. SZexghwDLJhOtZeV

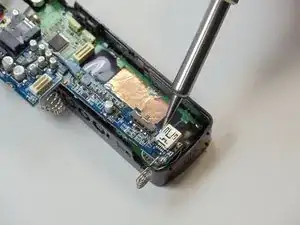

    • Place the new USB port in the same spot on the board, and re-solder at each of the four points.

    • Ensure you re-solder the wire into the same connection you removed it from during desoldering

  11. Yv126qfIBIfONtZp
    • Rotate the circuit board back to its initial position, with the port on the underside of the board.

  12. viPdNAFE3CWWkBBi
    • Replace the circuit board screw.

Abschluss

To reassemble your device, follow these instructions in reverse order.
