Einleitung

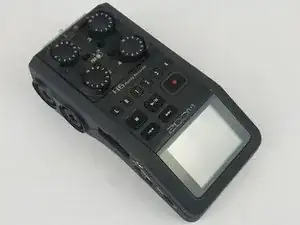

The requirements for this guide are the right tools and the device itself. The casing should be removed when trying to access the internal components of the recorder.
-
-

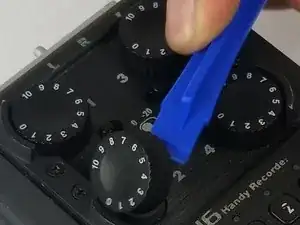

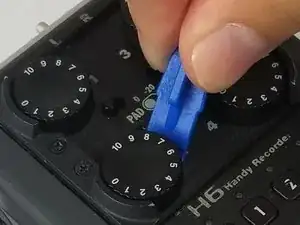

Place device face up and pry off the four knobs using the flat end of the plastic opening tool.
-
-
-

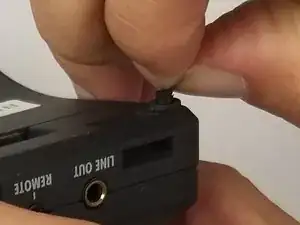

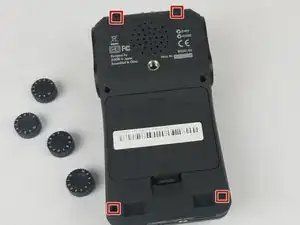

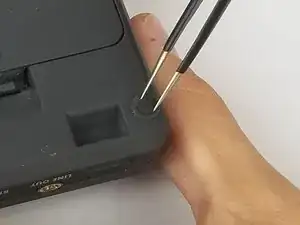

With device facedown, lift the four rubber feet from the device using tweezers or fingernails.
-
-
-

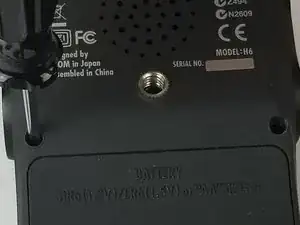

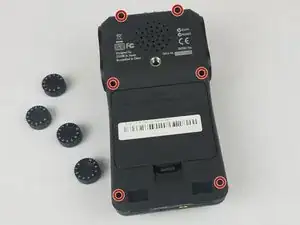

With device still facedown, unscrew six (PH #1), 9mm screws; two located in center of back side of device right above the battery cover, and four under the rubber feet.
-
-
-

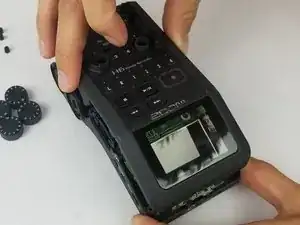

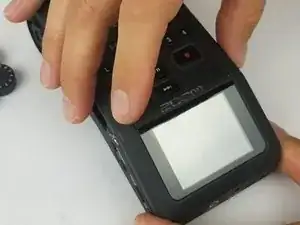

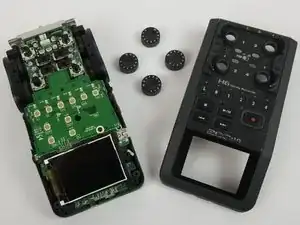

With the bottom of the device on a table, lift the top of the device and gently place it aside.
-
To reassemble your device, follow these instructions in reverse order.
