Zoom Q3HD Handy Video Recorder Lens Cleaning

Geschrieben von: Grace Bently
  • Kommentare: 3
Zoom Q3HD Handy Video Recorder Lens Cleaning

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 - 15 Minuten

Einleitung

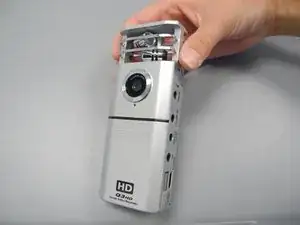

The Zoom Q3HD is a handy video/audio recording device released in 2010 How to clean the lens from inside

  1. RtSDmfRYYLgyFlXU

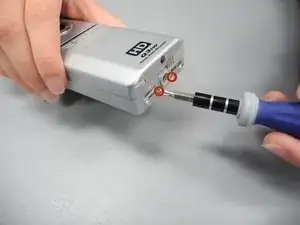

    • Remove the two screws from the bottom of the device.

    • Make sure to put your screws in a safe place.

  2. LCFDbKQiNZfVVErh

    • Flip the device over and remove the four screws bordering the grate of the device.

  3. 6ElX23Y1AnKahprb

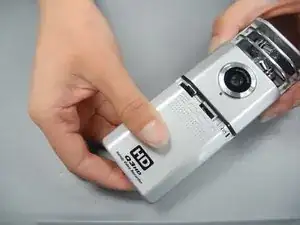

    • On the front of the device, slide the battery compartment cover off by pushing inward and sliding downward.

  4. Eh2b3m41EXaEO5Yd

    • Remove the two screws from the lip of the battery compartment.

  5. VZB4XYZZx21J1YcF

    • Remove the final screw from the bed of the battery compartment.

  6. NLpZ1AKon51I5Js5

    • WARNING: Pieces may become loose when you separate the device in half!

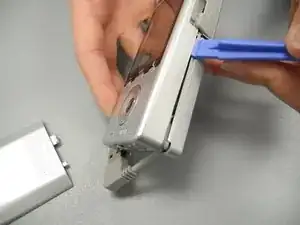

    • Run the pry tool along the edges of the device to begin separating the device in two halves.

  7. w2v55uROJrsOHM2f
    w2v55uROJrsOHM2f
    QokDneTvTDWVEeVI

    • REMINDER: Pieces may become loose when you separate the device in half!

    • Apply upward pressure to fully separate the device into two halves.

  8. C2mQP1GH6AJQPYak

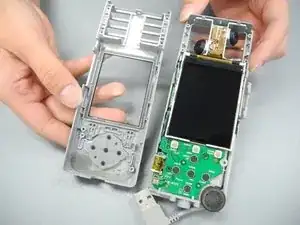

    • WARNING: If you’re not careful with keeping the screen close to the board, you will rip off the ribbon attaching the screen to the circuit board.

    • Lift display screen keeping the top half close to the board.

  9. JcyQIB6BlIbJJGD1

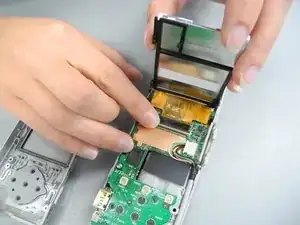

    • Gently flip the black clip up attaching the ribbon of the screen to the circuit board.

  10. lyOJ1SfdXMaVRSlH

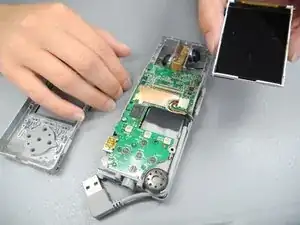

    • Gently slide the ribbon from the circuit board, removing the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
