Zoomer Dino Boomer Back Button Replacement

Geschrieben von: Lauren Mannix
  • Kommentare: 0
Zoomer Dino Boomer Back Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

3 - 7 Minuten

Einleitung

This guide involves taking apart the Zoomer Dino Boomer in order to disconnect the sensor button from the main circuit board for replacement.

  1. jOEIBwoLGRHKGwy5

    • Power off Zoomer Dino Boomer before disassembly.

    • Remove the eight 9.3mm Phillips #1 screws.

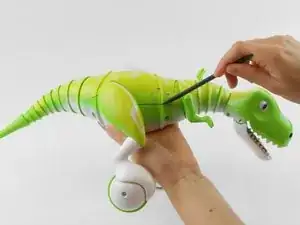

  2. tTVUEIBD4thjeUGn
    tTVUEIBD4thjeUGn

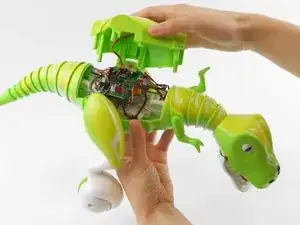

    peNTyYHHaWXTRgAB

    • Turn dinosaur over and hold upright.

    • Use the spudger to pry apart the back cover from the remainder of the Zoomer Dino Boomer.

    • Be gentle while removing the back cover. The back cover of the Zoomer Dino Boomer is still connected to the electronic system by a wire.

  3. SBHPrxGkhfYtMOot
    SBHPrxGkhfYtMOot

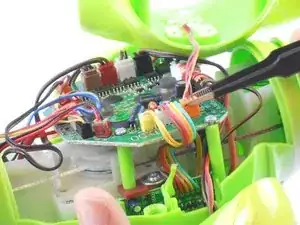

    rGXewVNCmShhWq6W

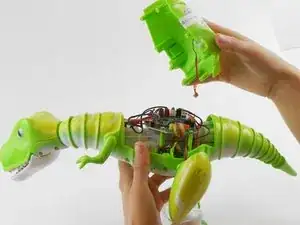

    Qd5iF5kiBQQmEa2G

    • Disconnect the wire that connects the back cover of the dino to the main circuit board by carefully pulling on the orange wire connector with tweezers.

    • Remove back cover.

    • If you are having difficulty removing the connector from its socket, push in the small tabs on the side of the connector with the tweezers. This step may take some work.

    • Do not damage the wires or circuit board.

  4. wKEBItO2jCQ3i4fQ

    • Where the button is largest, squeeze the two white tabs together.

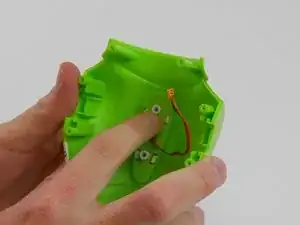

  5. GrKybUYuCgXbhuYJ

    • Push in the white circular piece between these tabs as far as it will go.

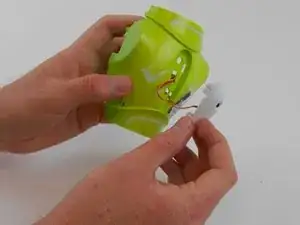

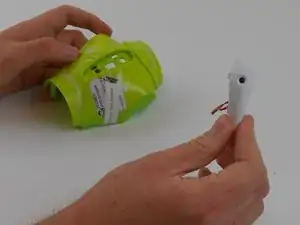

  6. fhGGAvfJYvLvmJn1
    fhGGAvfJYvLvmJn1
    eKAZVtHcCZQY24vN

    • Where the button is smallest, squeeze the two white tabs together and press the circular tab in-between them until the button comes loose.

    • Remove the back button.

Abschluss

To reassemble your device, follow these instructions in reverse order.
