Zoomer Dino Boomer Nose Sensor Replacement

Geschrieben von: Lauren Mannix

Kommentare: 0

Zoomer Dino Boomer Nose Sensor Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

5 - 10 Minuten

Einleitung

Before removing and replacing the sensor of Zoomer Dino Boomer, check the Troubleshooting Page to make sure the issue with gesture mode cannot be fixed without removing the sensor.

Werkzeuge

Schritt 1

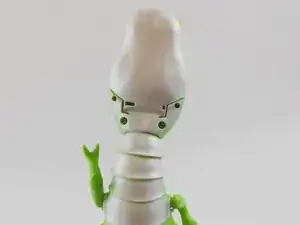

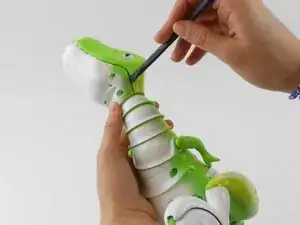

Unscrew the two 7.5 mm Phillips #0 screws at the base of the neck.
Remove the two 7.2 mm Phillips #0 screws above these at the base of the mouth.

Schritt 2

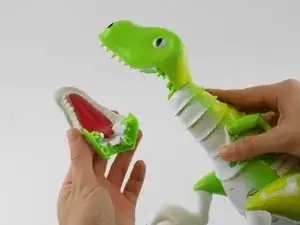

Use the spudger to pry Zoomer Dino Boomer's lower jaw from its mouth.

Schritt 3

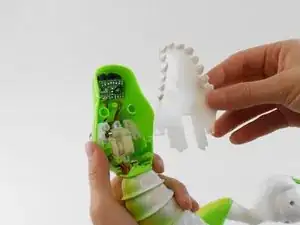

Remove the roof of Zoomer Dino Boomer's mouth by unscrewing the 7.5 mm Phillips #0 screw.

Schritt 4

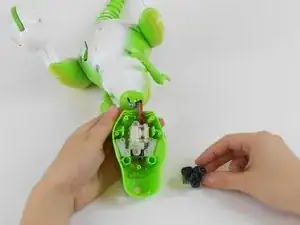

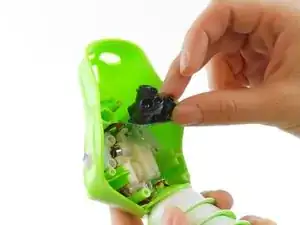

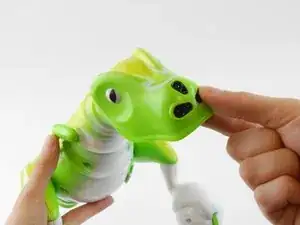

Carefully push the sensors out of the nose socket with your fingers.

Schritt 5

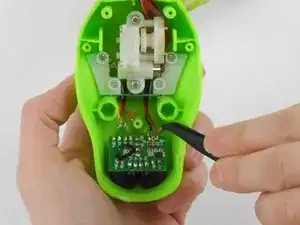

Use a soldering iron to remove the wires from the sensor chip by melting the metal joints on the chip.
Use the tweezers to remove the wires as you are soldering them.
Do not touch any parts of Zoomer Dino Boomer or yourself when using the soldering iron. The soldering iron will be very hot.
When reassembling, extra solder may be required to reconnect the wires with the circuit board.
