Zoomer Dino Boomer Tail Tip Replacement

Geschrieben von: Lauren Mannix
  • Kommentare: 3
Zoomer Dino Boomer Tail Tip Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

This guide will assist the reader in replacing the tip of Zoomer Dino Boomer's tail.

  1. ftOI2nkML6OWFEhS
    ftOI2nkML6OWFEhS
    piRmCyGhdQJhxslT

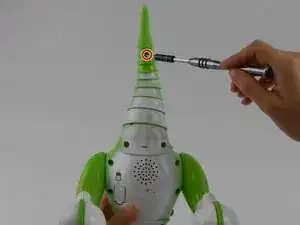

    • Remove the 9.4 mm Phillips #0 screw from the bottom of the tail of Zoomer Dino Boomer.

  2. 2BhnnWyjCx3Ffrle
    2BhnnWyjCx3Ffrle
    V1iSciBppAtqW11C

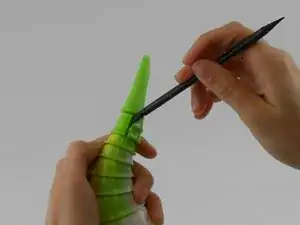

    • Use the spudger to pry open the two ridges on the last segment of the tail.

  3. FGuMy3LomT4dpoXa
    FGuMy3LomT4dpoXa
    R1YDjNWGobRuPkDF

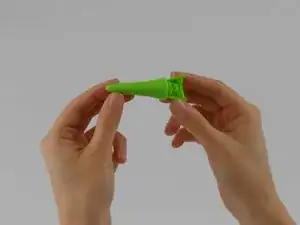

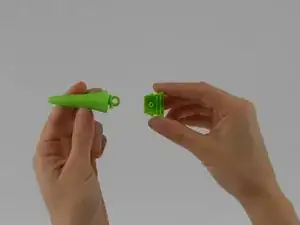

    • Remove the rubber tail tip from the plastic connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
