Zoomer Meowzies Back Button Contact Replacement

Geschrieben von: Mitchell Gentry
  • Kommentare: 0
Zoomer Meowzies Back Button Contact Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

7 Minuten

Einleitung

The button on the device's back may sometimes become damaged or dirty and therefore need replacement. This guide will go over how to access the back button's contact in order to clean or replace.

  1. ag5mEDPYX2fV6SY2
    ag5mEDPYX2fV6SY2
    FyxEgcLDoXCCoGHA
    KL5tfXRHfwwN5W2u

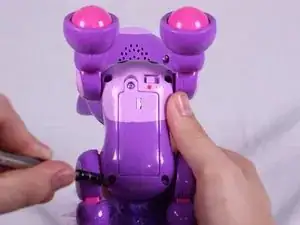

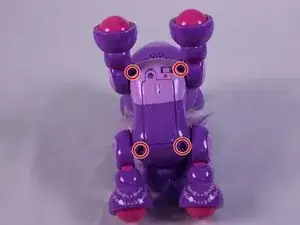

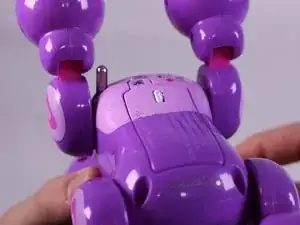

    • Using the Triangle driver remove the four 7.5 mm screws.

    • The two front screws are deeper than the two on the back legs which may cause difficulties. These can be reached by putting the bit in first then carefully putting the driver on slightly (not all the way)

  2. J15eLRAgDHSRTD4M
    J15eLRAgDHSRTD4M
    w126E6RVPdNqe3bk

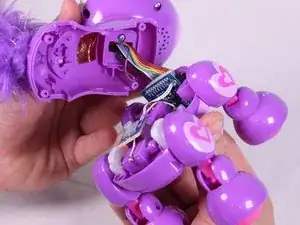

    • Turn the device so that the the device is on its side.

    • Hold the back and belly on the device and gently pull apart.

    • Pulling with too much force might damage a few cables inside, so caution is needed.

  3. 3JlmK5qW2AZUAVht
    3JlmK5qW2AZUAVht
    pBaE4BEbrsQLnIUF
    pAiQ6sIf3AZRol6j

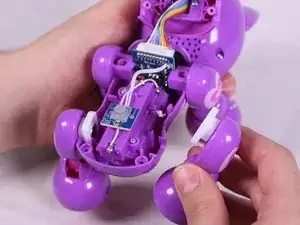

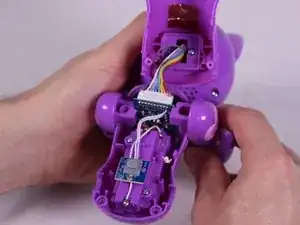

    • With insides exposed, grab leg and gently pull up and away from the body to detach them. Repeat for all legs needed.

  4. WDYKAeKWuqhdarKe
    WDYKAeKWuqhdarKe
    5Li5CYMTl1RurUSZ
    1Qje51vu1qve5Erx

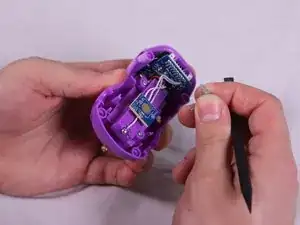

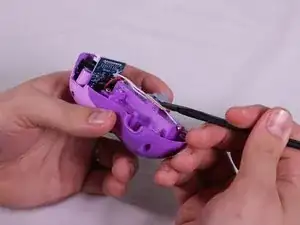

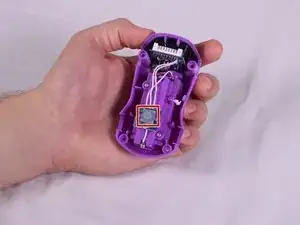

    • Locate the gray rubber contact in the middle of the bottom half of the device. Using the spudger, lift one corner of the contact until it pops loose.

    • Grab the contact and gently pull until the other side detaches.

    • When replacing the contact pad, use the narrow leads on the pad to pull it into place by twisting around the tips of the tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
