Zoomer Meowzies Chest Senor Replacement

Geschrieben von: Mitchell Gentry
  • Kommentare: 0
Zoomer Meowzies Chest Senor Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

7 - 15 Minuten

Einleitung

The chest sensor is needed for many of the device's functions, making it one of the device's most important features. This guide will go over the steps to remove and replace the sensor in case it becomes damaged.

  1. ag5mEDPYX2fV6SY2
    ag5mEDPYX2fV6SY2
    FyxEgcLDoXCCoGHA
    KL5tfXRHfwwN5W2u

    • Using the Triangle driver remove the four 7.5 mm screws.

    • The two front screws are deeper than the two on the back legs which may cause difficulties. These can be reached by putting the bit in first then carefully putting the driver on slightly (not all the way)

  2. J15eLRAgDHSRTD4M
    J15eLRAgDHSRTD4M
    w126E6RVPdNqe3bk

    • Turn the device so that the the device is on its side.

    • Hold the back and belly on the device and gently pull apart.

    • Pulling with too much force might damage a few cables inside, so caution is needed.

  3. 3JlmK5qW2AZUAVht
    3JlmK5qW2AZUAVht
    pBaE4BEbrsQLnIUF
    pAiQ6sIf3AZRol6j

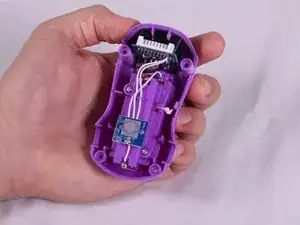

    • With insides exposed, grab leg and gently pull up and away from the body to detach them. Repeat for all legs needed.

  4. bDwFZkOcmQ4M5xsM
    bDwFZkOcmQ4M5xsM
    ZwxyLmaTE6WglCSr
    4KoCDFB2mS1lJxaI

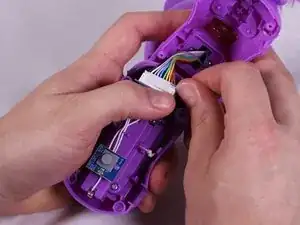

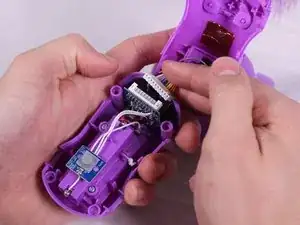

    • Carefully pry the ribbon cable from the connector.

    • Though we find it easier to use our fingers, the pry-tools may be useful.

  5. uCLLkF2LYCdoi15x
    uCLLkF2LYCdoi15x
    fqZPngQFPmUDk4wf
    TmFgsv1FDDwZ6Drq

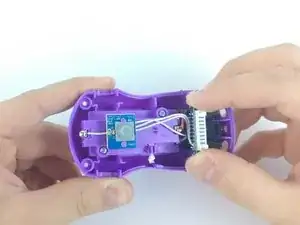

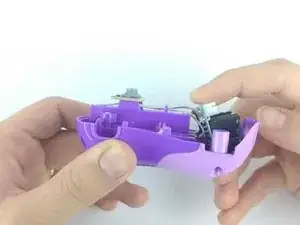

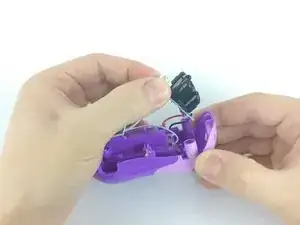

    • For easier access to the sensor, tilt and pull the sensor away from the body.

  6. yFEINGRKhF5ZOLTo
    yFEINGRKhF5ZOLTo
    MKYXyix2rf6NUbLp
    oeSJADxTuPBKfKJF

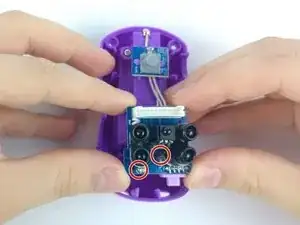

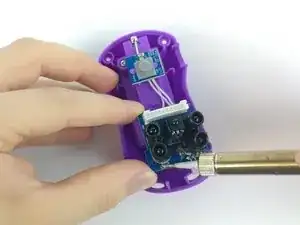

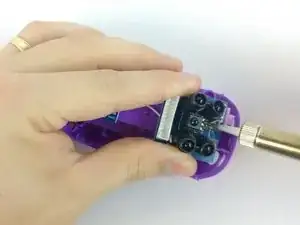

    • To remove the sensors, use a soldering iron to solder the two points and remove the red and black wires from the reverse side.

    • The soldering iron is very hot, so take caution not to touch it directly in order to avoid burns.

  7. qEfO1ojtSx1rOZvm
    qEfO1ojtSx1rOZvm
    sn1YLnlSwKPgXCJX

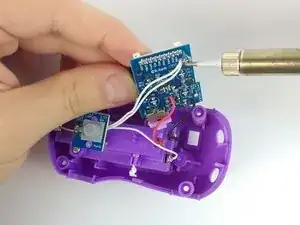

    • Turn the sensors over and locate the solder points of the remaining white wires. Heat the solder and remove the pair of wires.

    • The sensor should be completely detachable now.

Abschluss

To reassemble your device, follow these instructions in reverse order.
