Einleitung
We will be taking apart the main chassis, thigh section, and motor chassis to replace the front leg on the Zoomer Show Pony.
-
-
Disconnect all of the wires between the head and leg sections.
-

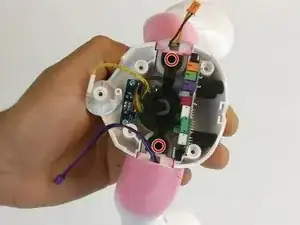

To replace the power/volume switch, remove the two Phillips #0 screws from the switch.
-
Lift the switch out to replace.
-
-
-

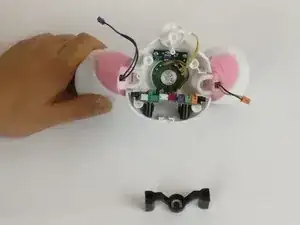

Remove the black bar by unscrewing the two triangle screws marked in yellow. These screws are recessed into the black bar so you may need an extender for your triangle bit.
-
-
-
If you are not replacing the pony's speaker, skip the next bullet point.
-

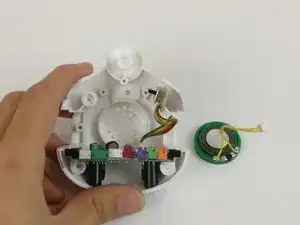

Lift out the speaker, again making sure that it is disconnected, and replace with a new one.
-
-
-

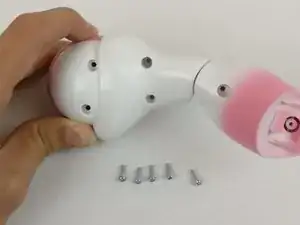

Remove all five triangular screws located on the backside of the leg.
-
Remove the Phillips head screw holding the white leg bracket.
-
Detach the plastic mount at the top of the leg by sliding it in a vertical motion from the position shown.
-
-
-
Lift up on the plastic housing located on the upper portion of the leg (where it connects to the body).
-

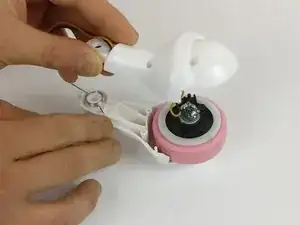

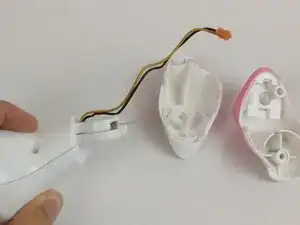

Carefully separate the plastic housing at the base of the leg.
-
-
-

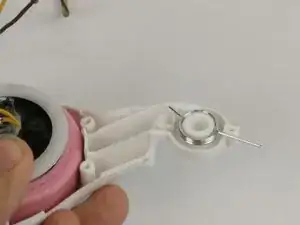

The spring will be exposed as shown. Remove the broken or damaged spring and replace it with a new one.
-
-
-

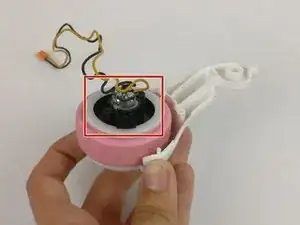

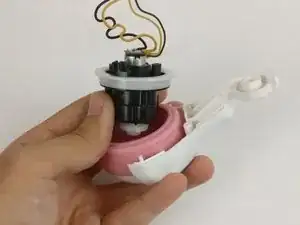

Pull motor out of pink wheel
-

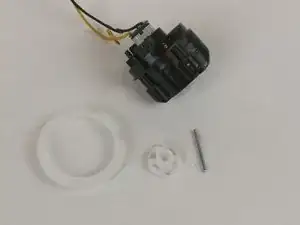

Remove pin (red), plastic piece connected to pin (orange), and plastic rim around motor (blue).
-
To reassemble your device, follow these instructions in reverse order.
