Einleitung
Is your phone’s touch screen not working correctly or not responding to your touch? Use this guide to replace your screen and return your device to a working state.
Werkzeuge
-
-
Remove the back cover using the notch at the bottom of the device.
-

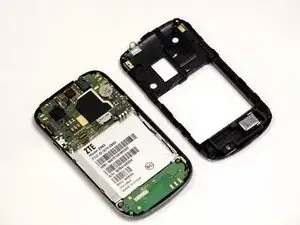

Pull the back cover from the front panel gently to remove it.
-
-
-
Using your J00 screwdriver, unscrew each of the 8 Philips head 1.19mm screws from the black plate of the device.
-
-
-
Using a spudger or plastic opening tool, pull up from underneath the back plate and pop off the piece.
-
-
-

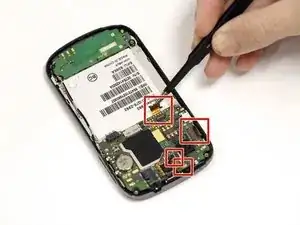

Using the tweezers remove the 4 orange ribbon cables. Do this by lifting their corresponding black connectors and pulling the ribbon out.
-
-
-

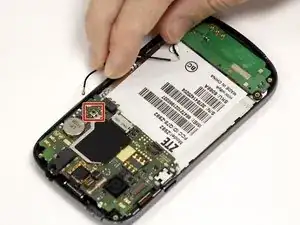

On the left side you will see a cellular antenna cable wire. Remove this wire by gently pulling it off.
-
-
-

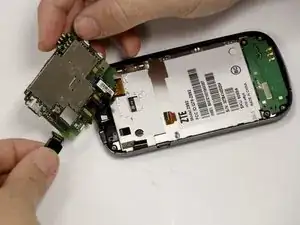

Lift and set aside the motherboard from lying on top of the silver plate (this may require some force because it is held on by adhesive).
-
-
-

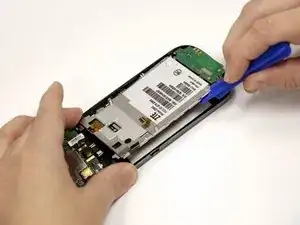

Using an opening tool, lift and remove the silver metal plate off the back of the device (use some force here).
-
-
-

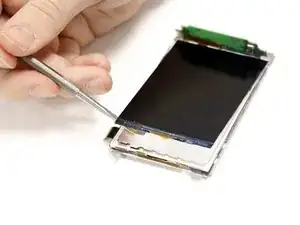

Pry open to separate the metal piece from the front screen attachment using a plastic spudger.
-
To reassemble your device, follow these instructions in reverse order.
