Einleitung

in this guide we will replace a broken lcd cable.

we will also see how to open the laptop , so you can replace other parts..

if you want to replace a broken screen , start at step 17 -18

  1. bZ1N2LIufxnYPePK
    bZ1N2LIufxnYPePK
    nFPjT4b4efnLJMRh

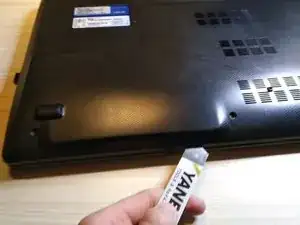

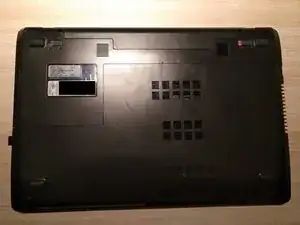

    • first remove the battery

  2. QBroCQCDYyVPGMCG
    QBroCQCDYyVPGMCG
    J2WU2lWnY6p11ZXL
    IVuTKDcUgq6aLGGR

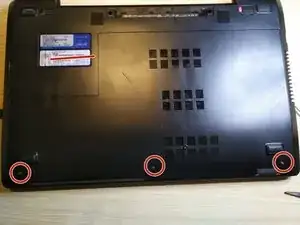

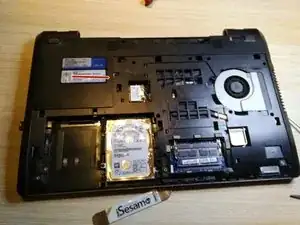

    • remove the big cover , removing 3 screws

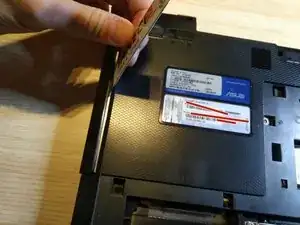

  3. wCsAy5hxHXnW4wdB
    wCsAy5hxHXnW4wdB
    Lk1pfJHOJngNCZAF
    UPx4eq3VmBUWWOHv

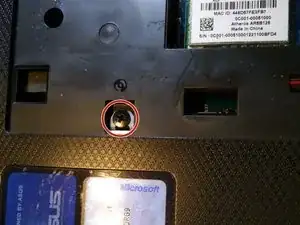

    • now , remove the DVD player by removing 1 screw.

    • keep track of the screws, make a map and tape the screws to your map..

    • Use a spudger to remove the dvd player.

  4. 3UXpr1q2fuEy4kYu
    3UXpr1q2fuEy4kYu
    hCDmtdLVwKacfgDj

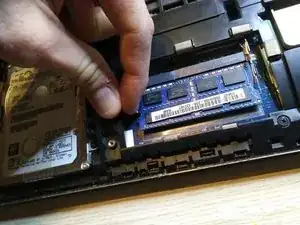

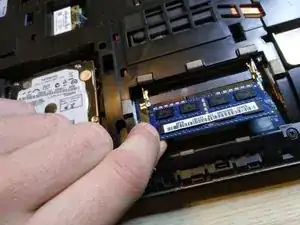

    • remove the RAM

  5. RhOjsYfT6IlSDVQO
    • remove the HDD bay and screws. ( 2 in my case..)

    • after removing the 2 black screws slide the HDD out.

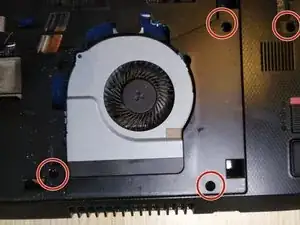

  6. XAFM44xB1FBC1Ywp
    XAFM44xB1FBC1Ywp
    wJEZbBN35FKgSphN
    cQcoi2UUrRVyYAfs

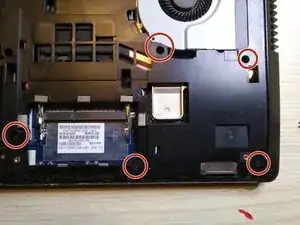

    • now we will remove the screws from the case.

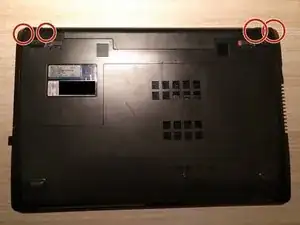

  7. VDCXcoZVKPdYyftN
    • other screws from the case..

    • there are also 3 small screws hidden under the dvd bay. if you remove the dvd bay ( like in step before) you will see the 3 small screws. i don't have a picture of it.

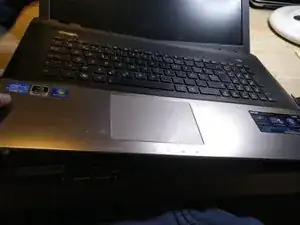

  8. QAQBNnjM1MeGWbUj
    QAQBNnjM1MeGWbUj
    JukW2r5XHPXkXGvS
    ISuHpp2bujUQpS5S

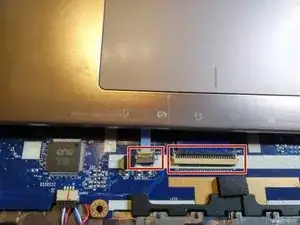

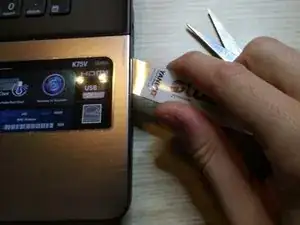

    • now turn the laptop again and use a spudger te remove the upper case with the keyboard attached to it.

    • while removing : be carefull for the keyboard and touchpad connectors and ribbon cables...

  9. WIEZkHMwUdJAMo3P

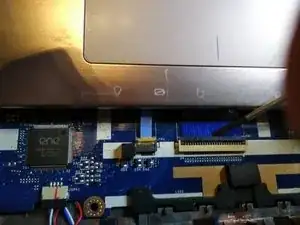

    • remove the ribbon cables from the connector on the main board.

    • use a flat head screwdriver or a small plastic spudger to lift the small plastic lever from the connector upwards.

    • slide the cables away from the connector when te lever is "open" , and close the small lever again.

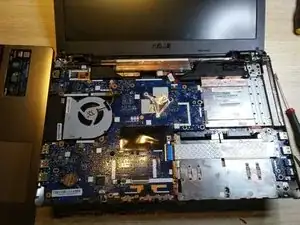

  10. Ctm5XMYnSEpJBYSw
    • after removing the upper case ( holding the keyboard) you will see the main board ...

    • if you want to replace the keyboard : the keyboard is attached to the upper case , remove the screws from the metal frame and remove the old keyboard. always be carefull with the ribbon cable..

  11. AVCwUnKke2fredpl
    AVCwUnKke2fredpl
    rmBfCRQ4JySyikos
    kiH6OfTQChmWPEod

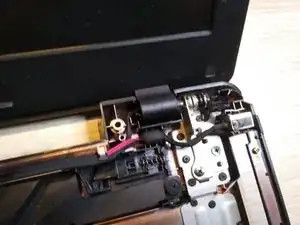

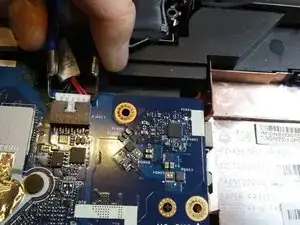

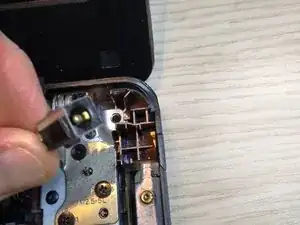

    • now we will loosen the cable's from the main board.

    • remove the DC jack cable connected to the connector on the main board.

    • Be careful when you do this, it is a very weak plastic connector ! i recommend using a small flathead screwdriver or a plastic spudger...

    • in the picture you see me using a IC axtractor, but i don't recommend it when you are not used to repair laptops...

    • when you are dealing with an broken DC jack , remove the whole cable ( black and red) running trough the plastic frame of the laptop...

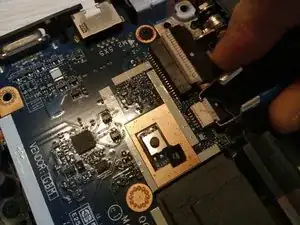

  12. FSuFuf1oaVRCnsJy
    FSuFuf1oaVRCnsJy
    SmCGTVHEEBxiayAo

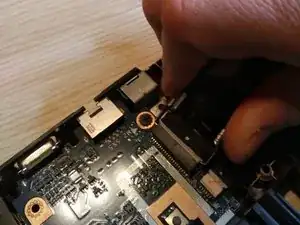

    • remvinf the LCD cable from the connector , use a IC extractor , be very gently doing this.. when you break or tear it , you will have screen problems...

    • remove the small connector next to the big lcd connector, it is the web cam connector.

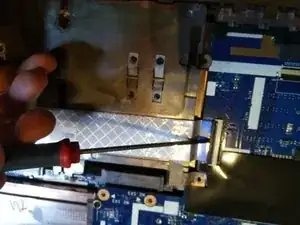

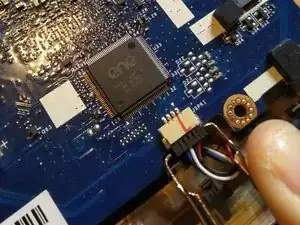

  13. yIauvwbtKVFOvoDC
    yIauvwbtKVFOvoDC
    DAN1DL2jYDYHPQgi
    I2RBFKTONPBgphW5

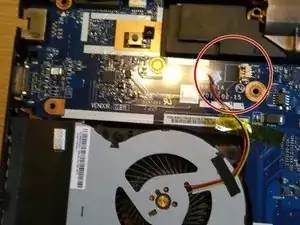

    • remove the white big flat ribbon cable attached to the USB ( on the right) PCB.

    • again be careful and use a flat head screwdriver or a spudger to lift up the lever..

    • remove the audio cable from the connector , be careful if you tear the cables , you will have audio problems and there is a possibility that you will have BSOD ( blue screen of death) ...

    • remove the FAN cable from the connector , be very carefull because it are very tiny and breakeble cables...

  14. nMcXQ5rnGijSWTWx
    nMcXQ5rnGijSWTWx
    eYb6DIuT4fQWbYVM
    2MsNR4lhZtLkAMYb

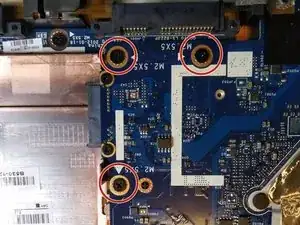

    • remove the 3 screws seen in picture 1

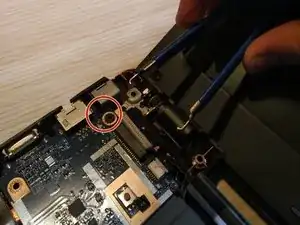

    • remove 1 screw on the left side from the LCD connector.

    • after that, you can slide the main board out. ( lift it up on the right side, then slide to the right and take it out. )

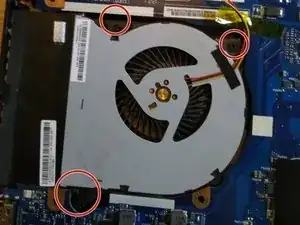

    • when you want to remove the fan as well ( or replace it) you have to remove 3 screws, see picture 3

  15. PaNZhbSaikVusy24
    PaNZhbSaikVusy24
    i3jQWxYyqLalNt1D
    5sXvo15aKxRT2yMJ
    • after removing the main board you have a view of the henges from the screen.

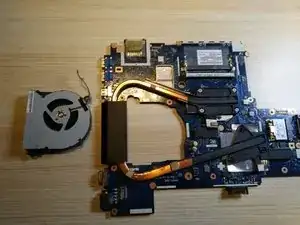

    • in picture 2 you will see the main board. , you can clean and or replace the CPU now.

    • to replace a cpu or clean the pads you will have to remove the screws seen in picture 3 .

    • clean the pads with isopropyl alcohol and always renew the CPU thermal paste . ( one drop on each spot is enough)

  16. QeT1LLrDnJR1lNtM
    QeT1LLrDnJR1lNtM
    yn25OYv6V3wCr1Bu

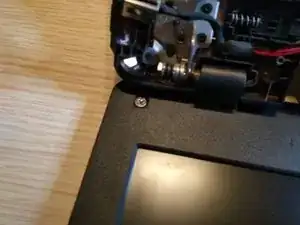

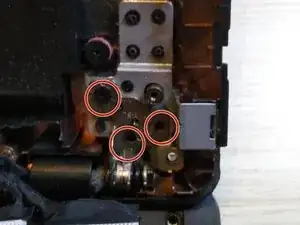

    • remove the 3 screws on each hinge

    • on the right hinge there is a metal hook attached on the hinge. this is attached to the bottom case .. just move the screen to release it.

  17. XWC41QGRLqyDLBYU
    XWC41QGRLqyDLBYU
    NLEvkmLrKDvNX4nY
    NipvUJpVpEJIiwfl

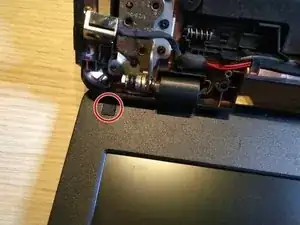

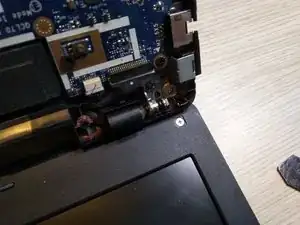

    • remove the black square rubber to reveal the hidden screws.

    • there are 2 screws one on the bottom left and one on the bottom right.

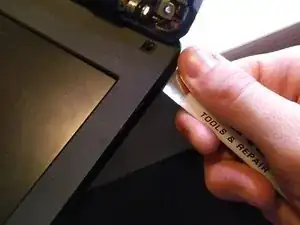

    • after removing the scrws you can slide a spudger or opening tool arround the plastic frame.

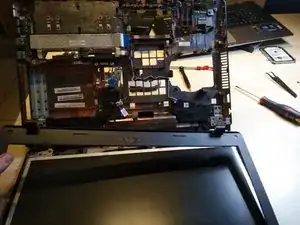

  18. UpTtbVU53DkBI2ZD
    • once the plastic frame is removed , you can replace the screen , the LCD cable..

    • i don't have pictures anymore when i was removing the screen .. my apologies for that. but you can follow other guides to do that , cause it is all the same...

Abschluss

To reassemble your device, follow these instructions in reverse order.
