This guide involves opening bObi Pet and separating the whole front bumper using a Phillips head screwdriver and a replacement bumper for bObi Pet.

  1. 4DluQbaZQB1oxeW1
    4DluQbaZQB1oxeW1
    ikCkmEBO5TIhYU5u
    Xos4Ap1Goq1iZJQl
    • Before we get started, turn bObi Pet OFF and flip her over onto a flat surface.

    • Next, remove bObi Pet's dustbin. Grip the small tab on the back of the bin, and pull to remove.

  2. p42Z2YXLlICP62Ce
    p42Z2YXLlICP62Ce
    GCFjyHr15kCB6Zow
    • Grip the front wheel and pull straight up, using the screwdriver for leverage.

    • The wheel will pop out and you will see two screws beneath it.

    • There is a larger screw set deeper in the wheel compartment. Use the screwdriver to remove it.

    • Remember to keep all screws and parts removed from bObi Pet safely aside during the repair. They may be needed for re-assembly.

  3. lNaYuC5SG5pPuNxI
    lNaYuC5SG5pPuNxI
    IFNo6LlGSSnmojMA
    tKbeTotG2DrsjTa1
    • Remove the screws on both sides of bObi Pet’s dustbin. Then, remove the corner pieces that were held down by the screws.

    • Grip the brush compartment and pull down to reveal two screws on a red fastener.

    • Remove them with the screwdriver.

  4. YDHRUynD4occhnOC
    YDHRUynD4occhnOC
    iloDCUuYxJWcoWML
    aDhtabpDZHQ5Hhx2
    • Pull the brush compartment up until the fastener is freed from bObi Pet. Then, detach the brush compartment's circuit plug and set it aside.

    • Remove the 4 screws located beneath the brush compartment.

  5. IvfOXkloTgnDruc4
    IvfOXkloTgnDruc4
    PKlfBonIjtb1OPaA
    • Remove the 2 screws on the dustbin’s red fastener.

    • Remove the fastener and set it aside for reassembly.

    • The cover is no longer secured, so carefully flip bObi Pet onto her wheels.

  6. MLVASPKhgEnSWnfX
    MLVASPKhgEnSWnfX
    eFCIOXUJkqDDXPKD
    xAThJcNwkLfOjMKS
    • Lift the cover to reveal the main board underneath.

    • Remove the two circuit plugs connecting the lid to the mainboard.

    • bObi Pet's cover is entirely separated, and you may now access any of her internal parts for replacement.

  7. Pp3mCVOupoCuGDS2
    Pp3mCVOupoCuGDS2
    1MEqDkYLP3ITDdcH

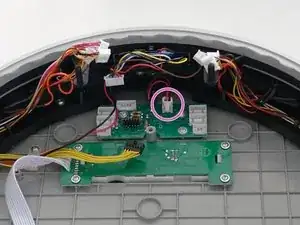

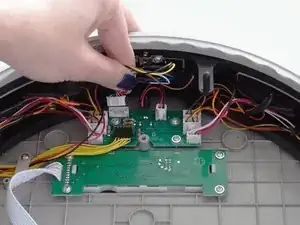

    • Flip bObi Pet’s cover over onto a flat surface so that you see 2 green circuit boards positioned at the top.

    • There are 8 circuit plugs that you will need to remove. Leave the smallest circuit plug at the top in place, and do not remove it.

    • If there is any glue holding down the other wires, you may scrape it off using a tool such as a screwdriver.

  8. IWatPSIEEdqRsnZa
    IWatPSIEEdqRsnZa
    RClpDBcDJysgLuIu

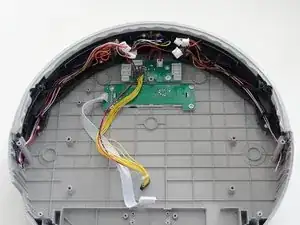

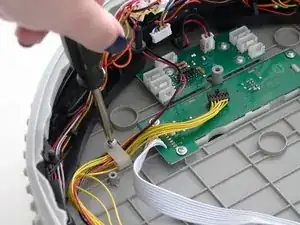

    • Remove the hook holding the yellow circuit plug against the lid. Keep the small hook and all screws safely aside for later reassembly.

    • Depending on your model, bObi Pet may have one of two hooks holding the yellow wire. In this case, remove and keep both aside for reassembly.

  9. moQOjoRdlbwbbLnX
    moQOjoRdlbwbbLnX
    FbwgXAILdqTvXTjM
    uKWqoqG4YWNuThDr

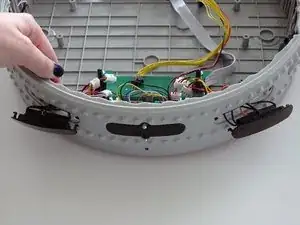

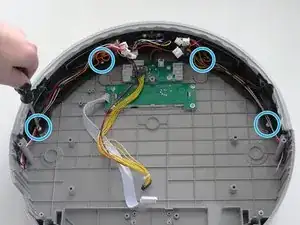

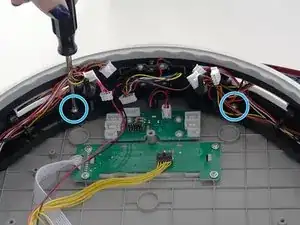

    • Next, remove the 4 screws connecting the bumper to bObi Pet’s lid.

    • You may nudge two of the oblong wall sensors out of their spot on bObi Pet to make room for your screwdriver. Be sure to replace them when done.

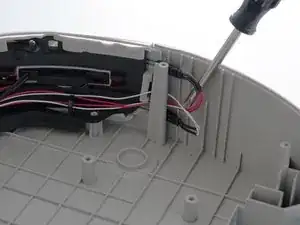

  10. tvlFniIvrfjplVX3
    tvlFniIvrfjplVX3
    plZOp6PHcVIWCZ2m
    FV3giiurajBfywSi

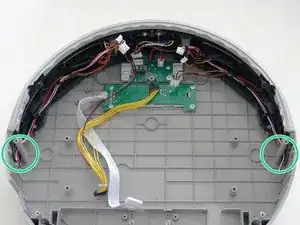

    • On the left and right sides of the bumper are bObi Pet’s sensor strips. They connect to the circuit board by red and white wires.

    • The sensor strips may be glued to the inside of the cover. Use a tool like a screwdriver to break off the glue.

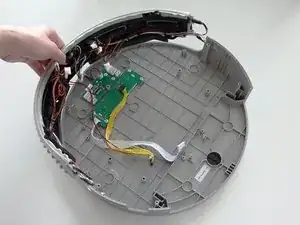

    • Then, lift the whole bumper up and out.

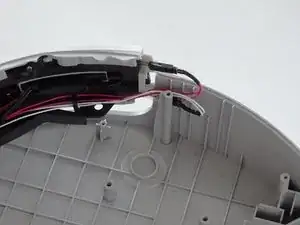

  11. EoOnftt3VEAH6AX6
    EoOnftt3VEAH6AX6
    KKkAFOWE5qJWl5Ve
    HFnVvhuObmCmPbla

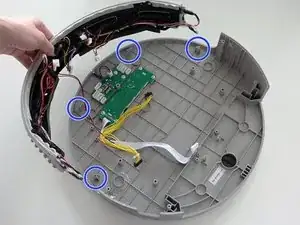

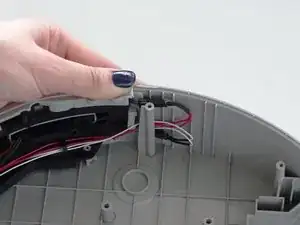

    • Now line up bObi Pet’s new bumper with the corresponding screw posts on her lid.

    • Make sure the sensor strips slide in behind the screw posts on both ends of the bumper.

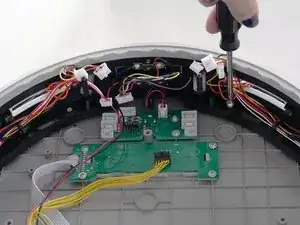

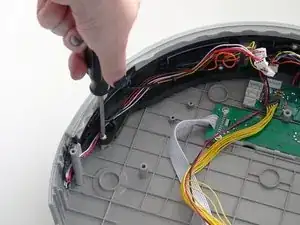

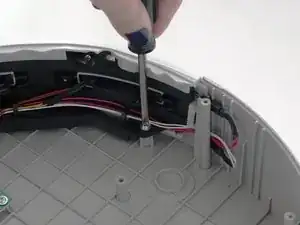

  12. DhCRi2uAmcGQcAwf
    DhCRi2uAmcGQcAwf
    thNdNVK4ckGasRWZ
    YX63rpDmJDVCHMC3
    • Once the bumper is positioned securely on the lid, reinstall the 4 screws around the inside of the bumper.

    • Once again, you may nudge 2 of the oblong wall sensors out to allow room for your screwdriver and then replace them when done.

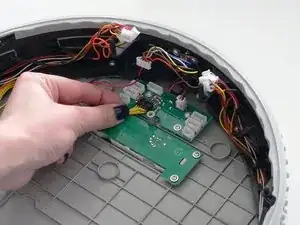

  13. ahyVlMarMBDye44b
    ahyVlMarMBDye44b
    EHUuElkUOhypkqD3

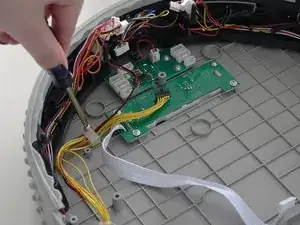

    • Next, you’ll need to replace the plastic hook removed previously. Place the yellow wire through it, and line the hook up with the screw post on the cover.

    • When aligned, install the screw on the hook.

    • Then, attach the thick yellow wire to the lower edge of the circuit board.

  14. r4Ao3xrvR4AJCmJ3
    r4Ao3xrvR4AJCmJ3
    IS6P1rIHg4REGoKJ

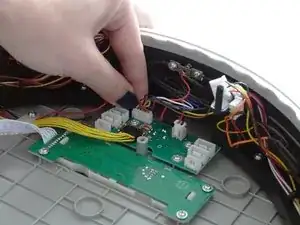

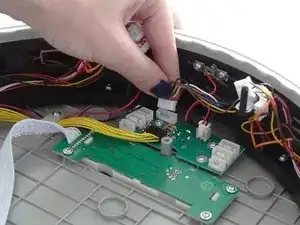

    • Continue reconnecting all circuit plugs.

    • In the middle of bObi Pet’s bumper is a circuit plug for one of the 5 wall sensors. Plug this one in at the topmost spot.

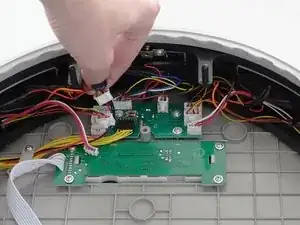

  15. 2s3fj2MEeoHtoNIq
    2s3fj2MEeoHtoNIq
    QVZvA3DMP424EuWw
    E3IErLBuTocoug1O

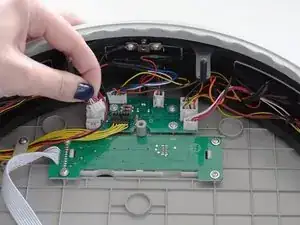

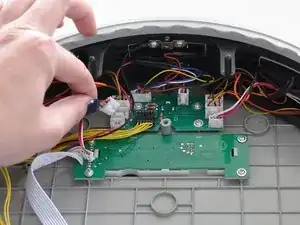

    • The rows on each side of the cover circuit board follow the same pattern for installation.

    • The left side of the circuit board has 3 spaces: The top space corresponds to the wall sensor with the shortest wire and no tab on the circuit plug.

    • Just below that is where the leftmost wall sensor plugs in. It has a longer wire and a small white tab on its circuit plug.

    • The space on the very bottom is for bObi Pet’s sensor strips. They have red and white wires.

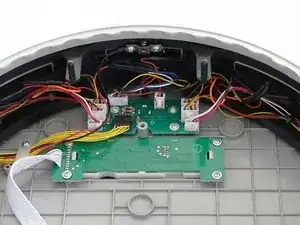

  16. RC4NvSsTEHiYj4nX
    RC4NvSsTEHiYj4nX
    HZmKSY2HeZPJuYBx
    abSWoeKQK5bEAPcy

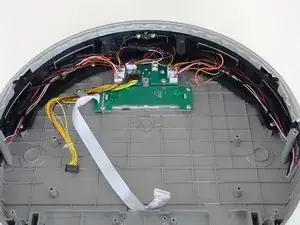

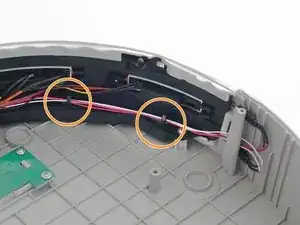

    • Repeat the previous process for the circuit plugs on the right and double check that all connections are secure.

    • Make sure the the red and white wires are tucked behind the screw posts at the ends of the bumper.

    • Make sure all the wires are tucked behind the black hooks lining the inside of the bumper before closing bObi Pet.

    • For assistance on reassembly, see: Assemble bObi Pet Post-Repair

Abschluss

To reassemble your device, follow the guide for closing bObi Pet: Assemble bObi Pet Post-Repair
