This replacement requires you to open bObi Pet, remove the bumper, and then replace the dock sensor. It may have similar steps to other replacements, but it is not the same repair.

  1. 4DluQbaZQB1oxeW1
    4DluQbaZQB1oxeW1
    ikCkmEBO5TIhYU5u
    Xos4Ap1Goq1iZJQl
    • Before we get started, turn bObi Pet OFF and flip her over onto a flat surface.

    • Next, remove bObi Pet's dustbin. Grip the small tab on the back of the bin, and pull to remove.

  2. p42Z2YXLlICP62Ce
    p42Z2YXLlICP62Ce
    GCFjyHr15kCB6Zow
    • Grip the front wheel and pull straight up, using the screwdriver for leverage.

    • The wheel will pop out and you will see two screws beneath it.

    • There is a larger screw set deeper in the wheel compartment. Use the screwdriver to remove it.

    • Remember to keep all screws and parts removed from bObi Pet safely aside during the repair. They may be needed for re-assembly.

  3. lNaYuC5SG5pPuNxI
    lNaYuC5SG5pPuNxI
    IFNo6LlGSSnmojMA
    tKbeTotG2DrsjTa1
    • Remove the screws on both sides of bObi Pet’s dustbin. Then, remove the corner pieces that were held down by the screws.

    • Grip the brush compartment and pull down to reveal two screws on a red fastener.

    • Remove them with the screwdriver.

  4. YDHRUynD4occhnOC
    YDHRUynD4occhnOC
    iloDCUuYxJWcoWML
    aDhtabpDZHQ5Hhx2
    • Pull the brush compartment up until the fastener is freed from bObi Pet. Then, detach the brush compartment's circuit plug and set it aside.

    • Remove the 4 screws located beneath the brush compartment.

  5. IvfOXkloTgnDruc4
    IvfOXkloTgnDruc4
    PKlfBonIjtb1OPaA
    • Remove the 2 screws on the dustbin’s red fastener.

    • Remove the fastener and set it aside for reassembly.

    • The cover is no longer secured, so carefully flip bObi Pet onto her wheels.

  6. MLVASPKhgEnSWnfX
    MLVASPKhgEnSWnfX
    eFCIOXUJkqDDXPKD
    xAThJcNwkLfOjMKS
    • Lift the cover to reveal the main board underneath.

    • Remove the two circuit plugs connecting the lid to the mainboard.

    • bObi Pet's cover is entirely separated, and you may now access any of her internal parts for replacement.

  7. bNWbS4lBw41MVINW
    bNWbS4lBw41MVINW
    EByj4AhNyrEAqmD2
    KRp6HpKArIGyS2pb

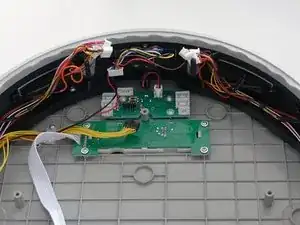

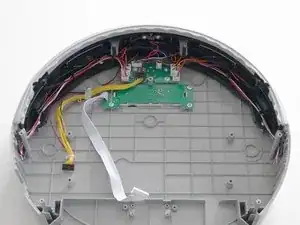

    • Flip bObi Pet’s cover over onto a flat surface so that you see 2 green circuit boards positioned at the top.

    • There are 8 circuit plugs that you will need to remove. Leave the smallest circuit plug at the top in place, and do not remove it.

    • If there is any glue holding down the other wires, you may scrape it off using a tool such as a screwdriver.

  8. BDK1GiLN4t2QZfoB
    BDK1GiLN4t2QZfoB
    UraOOV2k2HhuWhke

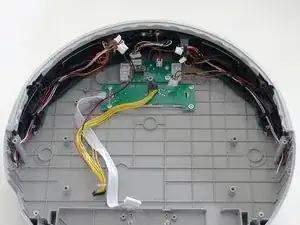

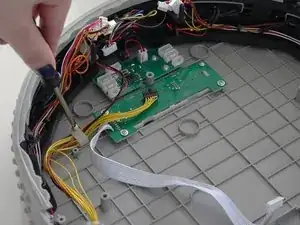

    • This step is optional because removing the wire makes removing the dock sensor easier. You may leave the hook on as long as the yellow wire is unplugged from the circuit board.

    • Remove the hook holding the yellow circuit plug against the lid. Keep the small hook and all screws safely aside for later reassembly.

    • Depending on your model, bObi Pet may have one of two hooks holding the yellow wire. In this case, remove and keep both aside for reassembly.

  9. qMUrQY5gqwhFafQF
    qMUrQY5gqwhFafQF
    2iPCMSWjYCikcEGi
    qIYXqNdOCDrBELSC

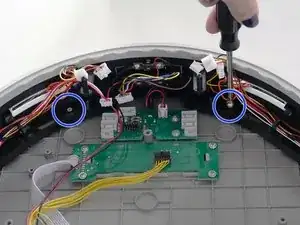

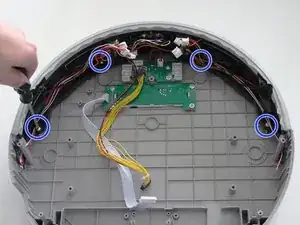

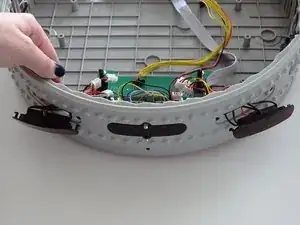

    • Next, remove the 4 screws connecting the bumper to bObi Pet’s lid.

    • You may nudge two of the oblong wall sensors out of their spot on bObi Pet to make room for your screwdriver. Be sure to replace them when done.

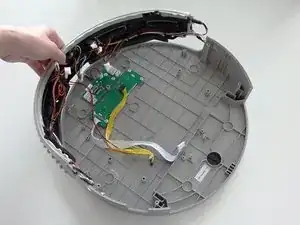

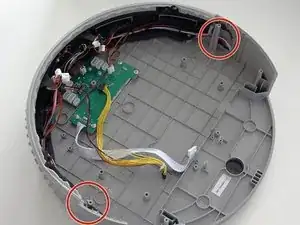

  10. R5SDVyv4tcAN6CPT
    R5SDVyv4tcAN6CPT
    hiejAeMkQ6iUYNpT
    Qg2bLgPVV3AB5VEZ
    • On the left and right sides of the bumper are bObi Pet’s sensor strips. They connect to the circuit board by red and white wires.

    • If the sensor strips are glued to the inside of the cover, use a tool like a screwdriver to break off the glue.

    • Then, lift the whole bumper up and put it aside while repairing the dock sensor.

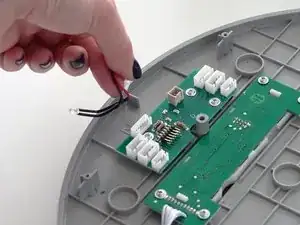

  11. wFQZvcZAXCjMHO5J
    wFQZvcZAXCjMHO5J
    OM5lAJixUqGIh5XD
    iwYShVbFKPgvAcYi

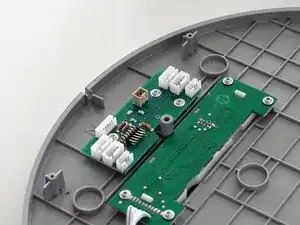

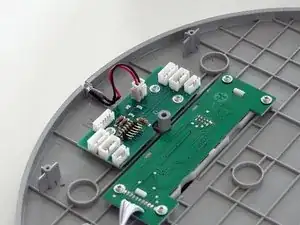

    • Remove the dock sensor from the circuit board. Grip the small white tab on the side and pull up.

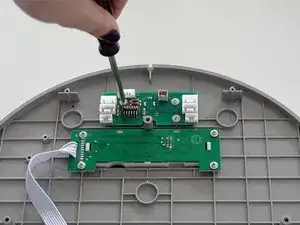

  12. SPR1Qp2MjqUYVSrV
    SPR1Qp2MjqUYVSrV
    1TSlNJvmkTMVFwKC
    SvfWvWfoskhGSHXZ

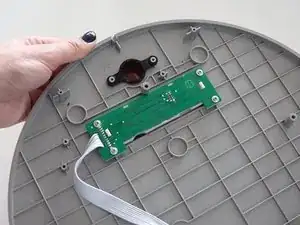

    • Remove the three screws from the circuit board on bObi Pet's cover.

    • Lift the circuit board out.

    • Lift bObi Pet slightly as you place the new circuit board so it can lie flat.

  13. IKPGGDywINCCVGMu
    IKPGGDywINCCVGMu
    WJEmsVQBmoEnvWTP
    ocaPcLVYHhRuE6jn

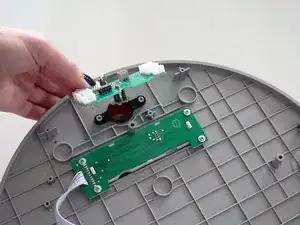

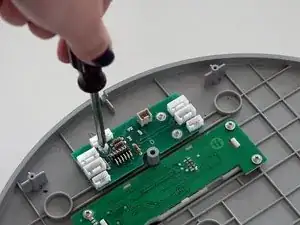

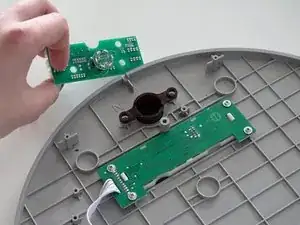

    • Make sure it lines up with the three screw posts inside bObi Pet and lies down flat against the lid.

    • Then install the 3 screws.

  14. TXHBGvsY4JKG2stL
    TXHBGvsY4JKG2stL
    MBMSa3VaqoRAoXPa
    TFE1CVEruNk4Rt4H

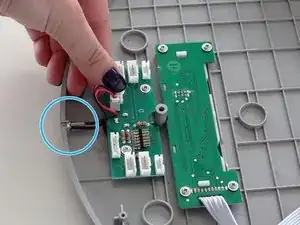

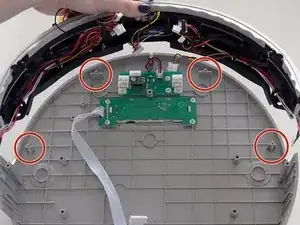

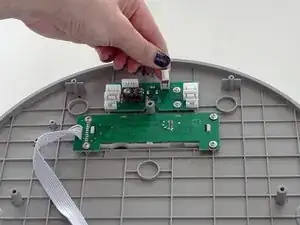

    • Attach the new dock sensor to the circuit board.

    • Then lay the bulb end down in the small space on bObi Pet's cover.

    • Then line up the bumper up with the screw posts on the lid.

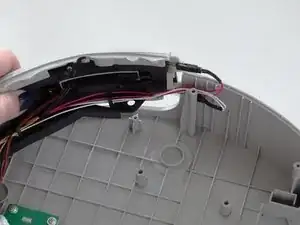

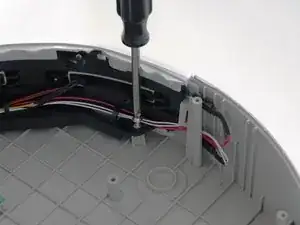

  15. L5VtwYuIhIKkB1DN
    L5VtwYuIhIKkB1DN
    otN1bySRrDusjNkB
    O6cEH3eTcv3qniD1

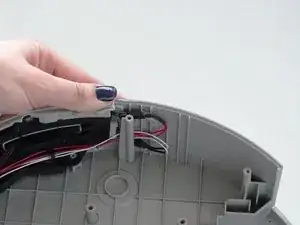

    • Make sure the sensor strips slide in behind the screw posts on both ends of the bumper as you align it on bObi Pet.

    • Once the bumper is positioned on the lid, reinstall the 4 screws around the inside of the bumper.

  16. SKPEvWMhmo5TIca2
    SKPEvWMhmo5TIca2
    ARRYjDW3HfMpDXHk
    2siNTIM1QVGPkkMu

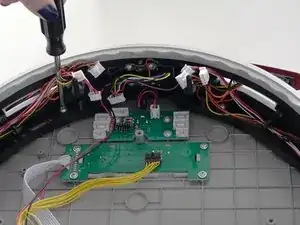

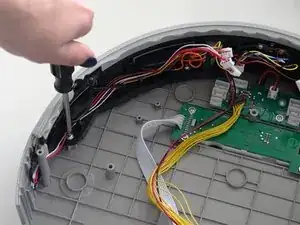

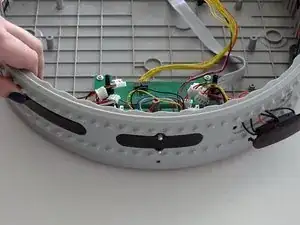

    • Once again, you may nudge 2 of the oblong wall sensors out to allow room for your screwdriver and then replace them when done.

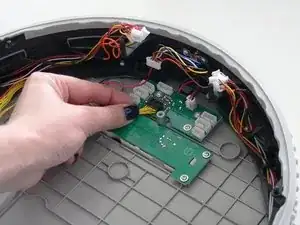

  17. WwP5wpU3LuitRXNd
    WwP5wpU3LuitRXNd
    vHRNZbZAM5RH56MC

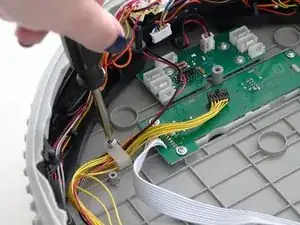

    • Next, you’ll need to replace the plastic hook removed previously. Place the yellow wire through it, and line the hook up with the screw post on the cover.

    • When aligned, install the screw on the hook. Then, attach the thick yellow wire to the lower edge of the circuit board.

  18. lscUYISpKCRQmXQc
    lscUYISpKCRQmXQc
    NQ16WFSDMS2RFida

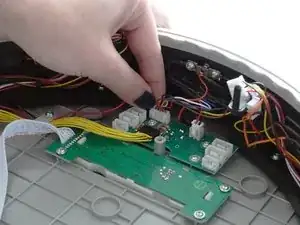

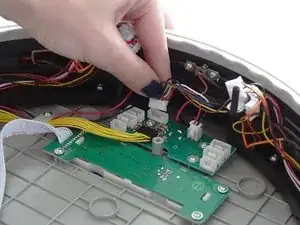

    • Continue reconnecting all circuit plugs.

    • In the middle of bObi Pet’s bumper is a circuit plug for one of the 5 wall sensors. Plug this one in at the topmost spot.

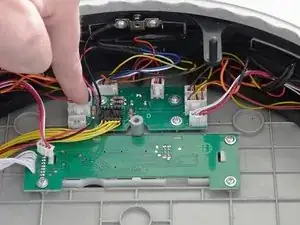

  19. OxjgXnyPDoOHMLrN
    OxjgXnyPDoOHMLrN
    2p66LiYRNkvRwGV2
    ELgL3LltLxk4cVZM

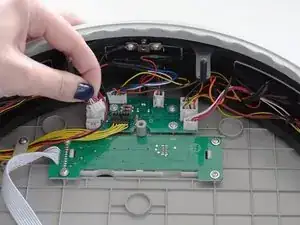

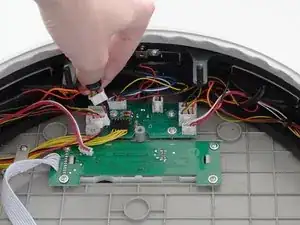

    • The rows on each side of the cover circuit board follow the same pattern for installation.

    • The left side of the circuit board has 3 spaces: The top space corresponds to the wall sensor with the shortest wire and no tab on the circuit plug.

    • Just below that is where the leftmost wall sensor plugs in. It has a longer wire and a small white tab on its circuit plug.

    • The space on the very bottom is for bObi Pet’s sensor strips. They have red and white wires.

  20. m4DULSaFVQFJYDyu
    m4DULSaFVQFJYDyu
    4RcDXAKHKQOipSVo
    6aFNraKLkcY5FLGC

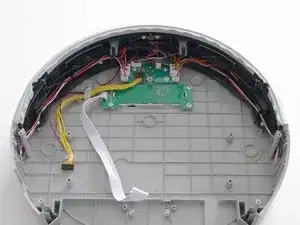

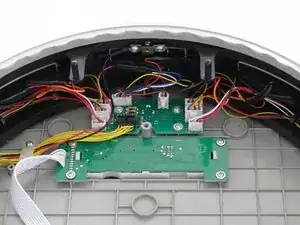

    • Repeat the previous process for the circuit plugs on the right and double check that all connections are secure.

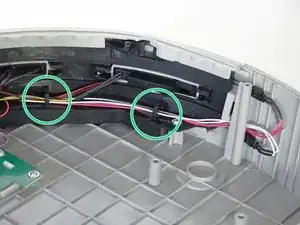

    • Make sure the the red and white wires are tucked behind the screw posts at the ends of the bumper.

    • Make sure all the wires are tucked behind the black hooks lining the inside of the bumper before closing bObi Pet.

    • For assistance on reassembly, see: Assemble bObi Pet Post-Repair

Abschluss

When finished, see the guide on closing bObi Pet to completely put the cover together: Assemble bObi Pet Post-Repair
