All you need for removal of the wheel is a Phillips head screwdriver and a few minutes. bObi Pet's cleaning tool, paper towel, and compressed air are optional if cleaning the wheel.

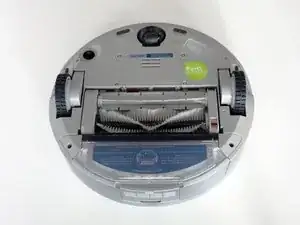

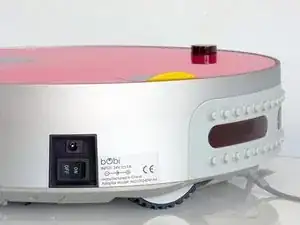

  1. LQqGK1kjduJPKIWS
    LQqGK1kjduJPKIWS
    RrCpuyR42GEtwPqA
    O1JRgUvT2GOuZHCm
    • To start, turn bObi Pet's side power switch to OFF and flip her over so the wheels point up.

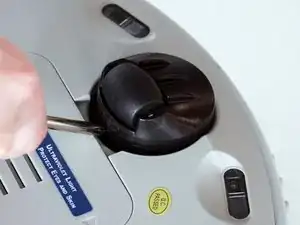

    • Remove bObi Pet’s front wheel. Grip it with your hand and pull up, using a screwdriver for leverage.

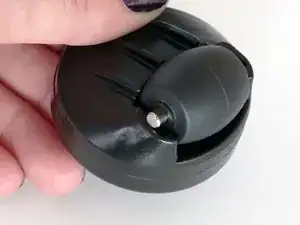

  2. wltTmG3QH33f5gZg
    wltTmG3QH33f5gZg
    BpRQdf1fWeNeJdH2
    nbwtETK6VlQIwqa6

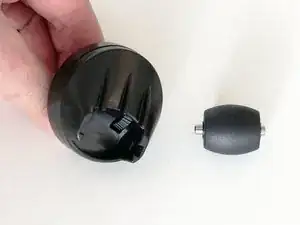

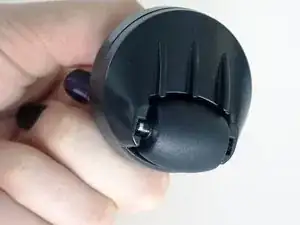

    • You may remove and clean the smaller wheel on bObi Pet’s wheel piece.

    • To detach it, grip firmly and pull. Once again, you may use the screwdriver for this step.

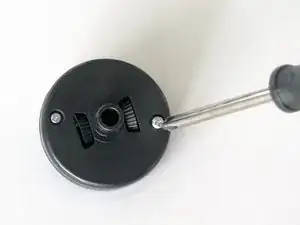

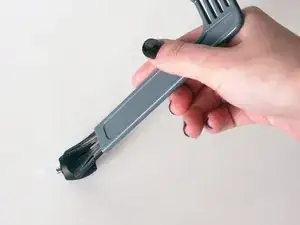

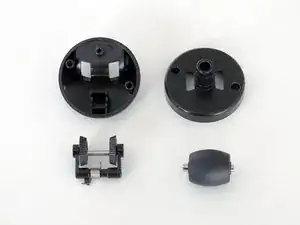

  3. hciUYkI52CdwaWJX
    hciUYkI52CdwaWJX
    hbiTpclnV6d3kIAd
    3BP3od1AXLQsrt3D
    • Flip the wheel over and remove the 2 screws holding the wheel piece together.

    • Remember to keep these screws for reassembly.

    • Then pop the outer casing open and you'll be able to clean the front wheel's interior with bObi Pet's cleaning tool or compressed air.

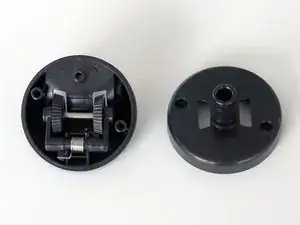

  4. nYccXytjZNYQgVKR
    nYccXytjZNYQgVKR
    3C5YUBuEPqomJtXi

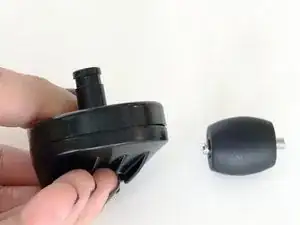

    • After cleaning the inside of the wheel piece, replace the spring inside.

    • Then, align the edges of its outer casing.

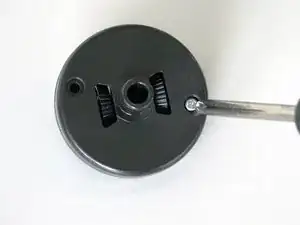

  5. pNZuuClr1XhLJWX3
    pNZuuClr1XhLJWX3
    Dh2QvkhQaJyTEFyr
    NtDqhDkxdaN66XpD

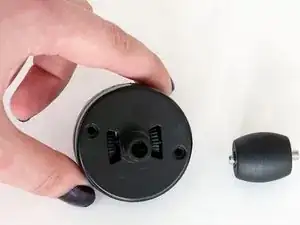

    • Hold the wheel piece together while you reinstall the 2 screws.

    • You may replace the small wheel on the other side of the front wheel piece, opposite the screws.

  6. oJgbISgYBBNtyZCc
    oJgbISgYBBNtyZCc
    bNDZyu4j61AdBSFP
    UM4AdHnDuVOvIXbv

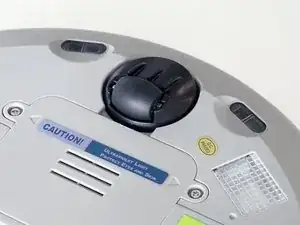

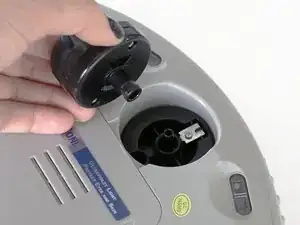

    • Lastly, place the front wheel back in its space on bObi Pet.

    • Push down firmly to lock the wheel in place.

Abschluss

Congratulations on completing bObi Pet's front wheel disassembly!
