Einleitung

This guide demonstrates the replacement of bObi Pet's right wheel, but is applicable for replacing either the left or right wheel on bObi Pet.

There is a similar the video guide found here: https://www.youtube.com/watch?v=iKn9qxmM...

  1. PJSfSToNIk1W32QQ
    PJSfSToNIk1W32QQ
    22fjUOk5WeQS6emL
    hKiY3FrAIWc1YbAf

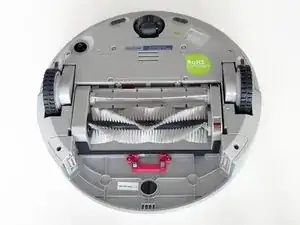

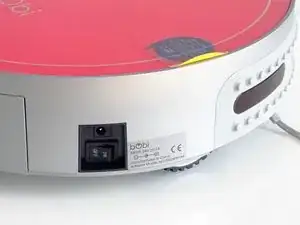

    • Before we get started, turn bObi Pet OFF and flip her over onto a flat surface.

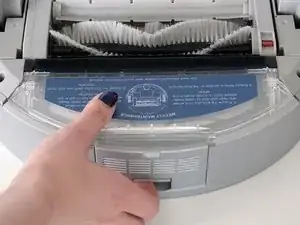

    • Next, remove the dustbin. Grip the button on the back of the bin and pull to remove.

  2. fqSQKwRXIrZx3GYn
    fqSQKwRXIrZx3GYn
    QIJPMTtgaMU6Xccb
    5BJMYYvmSAxgjABE

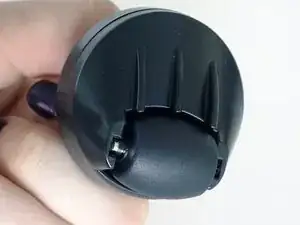

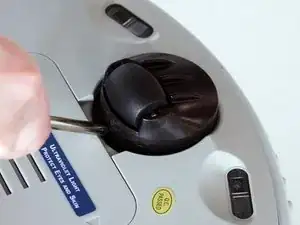

    • Then, remove bObi Pet’s front wheel. Grip the wheel with your hand and pull straight up, using the screwdriver for leverage.

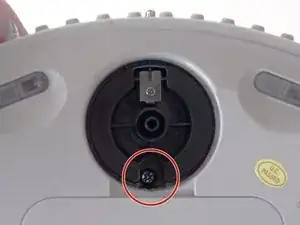

    • Behind the wheel are two screws. Use the screwdriver to remove the larger screw set deeper in the wheel compartment.

    • Keep the wheel, its screw, and all other screws removed from bObi Pet for later reassembly.

  3. FBxXXaWkZfH2nQoX
    FBxXXaWkZfH2nQoX
    WVN2fl6WiNFLEgQm
    C5dcRBwCQLlaD3PI

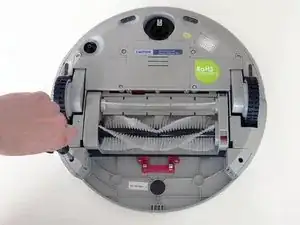

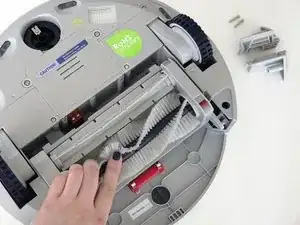

    • For the next step, remove the screws on both sides of the dustbin.

    • Then, remove the corner pieces that were held down by the screws.

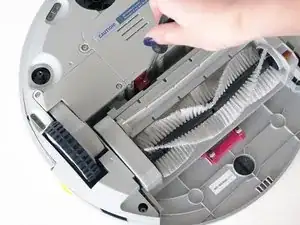

    • Grip the brush compartment and pull down to reveal two screws on a red fastener. Remove them with the screwdriver.

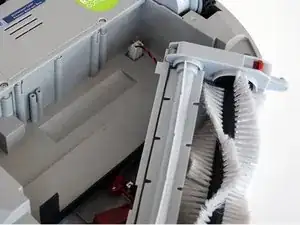

  4. koRxlFkRLPo4RuSM
    koRxlFkRLPo4RuSM
    BpnnyfL2ZxQVYgqD

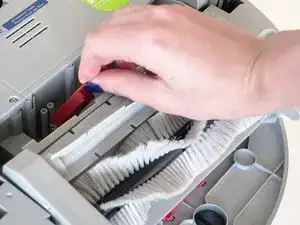

    • Pull the brush compartment up until it is freed from the red fastener. Then, detach the brush compartment and set it aside.

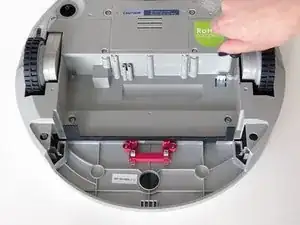

  5. GyNBBHKMFXYLLyim
    GyNBBHKMFXYLLyim
    5bnYu6AqJePS1qYn
    vJqLJfPbuDQuwUsj

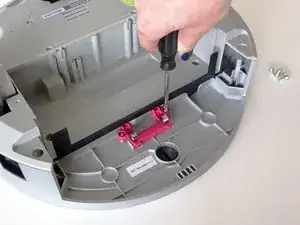

    • Remove the 4 screws located beneath the brush compartment.

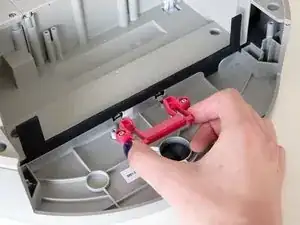

    • Next, remove the 2 screws on the dustbin’s red fastener.

    • Remove the fastener and set it aside for reassembly.

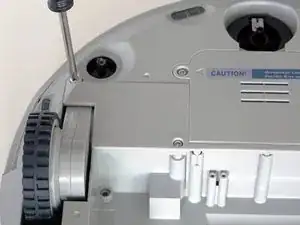

  6. vxodsAsLWeF4vDSn
    vxodsAsLWeF4vDSn
    OTMNqiYlutcAmsrc

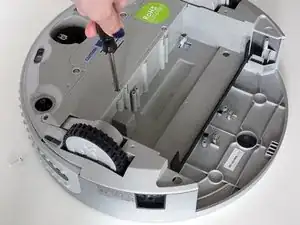

    • Remove the two screws holding the wheel you'd like to replace. In this case, bObi Pet's right wheel is being replaced.

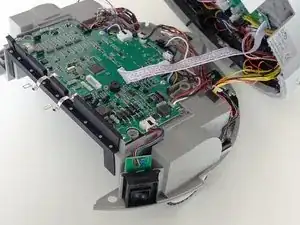

  7. q2LNdON152r2J4Lo
    q2LNdON152r2J4Lo
    VUKjDYanqovL1vSt
    Sh3iUlTZAg2YMu3J

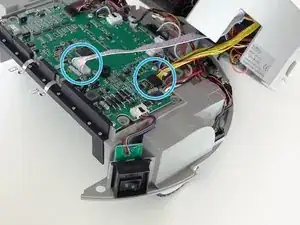

    • The cover is no longer secured, so carefully flip Bobi Pet onto her wheels.

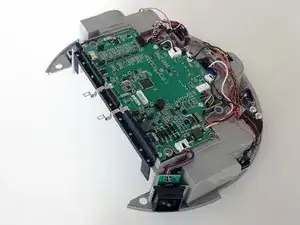

    • Lift the cover to reveal the main board underneath. Remove the two circuit plugs connecting the lid to the mainboard.

  8. Vf6ontjOoM4MFjbn
    Vf6ontjOoM4MFjbn
    oyK6dtAtZDTe6twm
    EKltrmhEu3tyiTbX

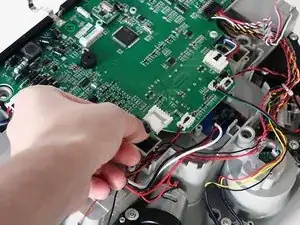

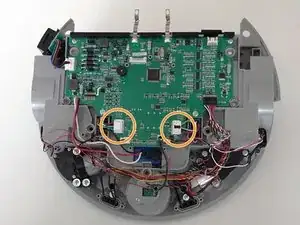

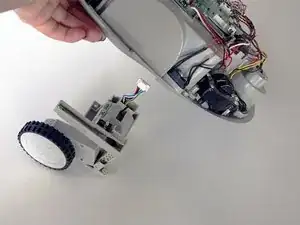

    • The wheels are attached to the top of the mainboard.

    • Unplug the wheel you wish to replace. If there is glue holding the circuit plug in place, you may scrape it off using your screwdriver.

    • Lift bObi Pet and feed the wheel's wires through the opening in her cover. The wheel will detach from underneath.

  9. IVB3eoFCv3jEhVSt
    IVB3eoFCv3jEhVSt
    vXPxCnErxykdrPGC
    SUtR4NPG1O5RJCOi

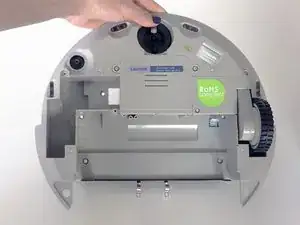

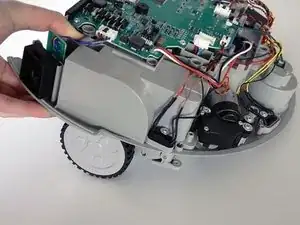

    • Place your new wheel in the open space underneath bObi Pet.

    • Ensure the circuit plug goes through the opening on bObi Pet and reaches the main board.

    • Plug your new wheel into the mainboard. You may add glue or electrical tape to the new wheel’s circuit plug for a more secure hold.

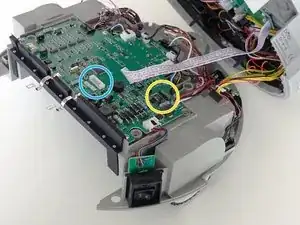

  10. elQgY5Y2F2PV2mhj
    elQgY5Y2F2PV2mhj
    ZPL5AlW2KtWMK4ZR
    SXWXhkQQPoNerMNb

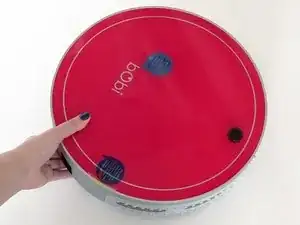

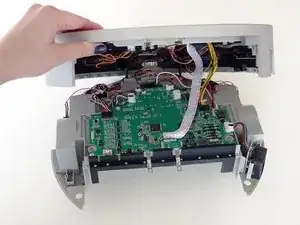

    • Attach the two circuit plugs from bObi Pet's cover back onto her main board.

    • The yellow-wired plug connects to the right side of the mainboard.

    • The white-wired plug on bObi Pet’s lid connects to the middle of the mainboard.

    • Lay down the cover and line up the edges precisely.

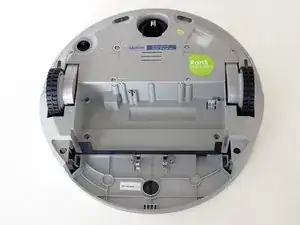

  11. cSQHWTyfgxpZAIhn
    cSQHWTyfgxpZAIhn
    EUEQ3PODuTSgGVnM
    6X6MdcLYUjFL6G1e

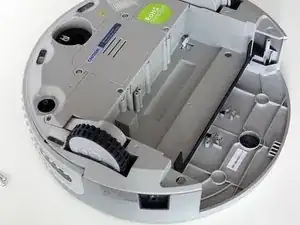

    • While holding bObi Pet’s top and bottom together, carefully flip her over onto a flat surface.

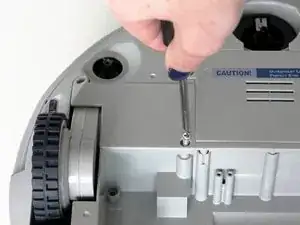

    • Then reinstall the 2 screws on the wheel you've just replaced.

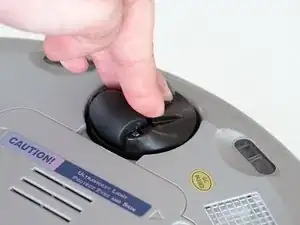

  12. ebQ4TeJd6JDxSrqm
    ebQ4TeJd6JDxSrqm
    uBUjbRcREAjCSTy3
    TGBgXrinGuuQtPSi

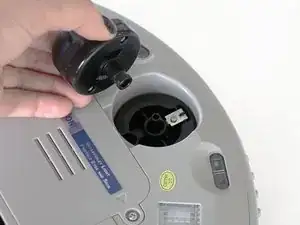

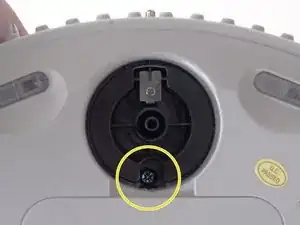

    • Next, reinstall the front wheel’s screw.

    • Place the front wheel on top and firmly push down to secure it.

  13. OJVZyZjIxJg2OqWy
    OJVZyZjIxJg2OqWy
    EDvrmX6iDJVPTUsJ
    iOyTLLAeF6tQHDSk

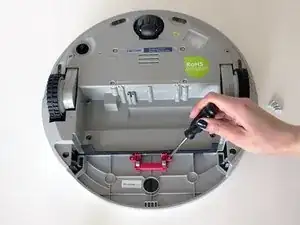

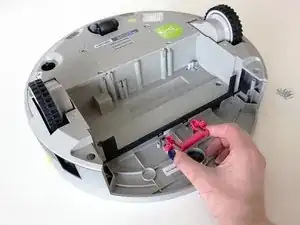

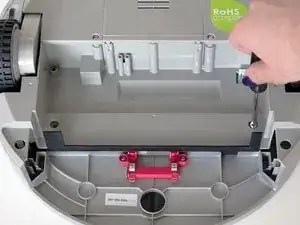

    • Replace the dustbin’s red fastener and install its 2 screws.

    • Next, install the 4 screws in the space beneath the brush compartment.

  14. 1tvrAGftoSdh5KoJ
    1tvrAGftoSdh5KoJ
    jGIGeP3CJkPXQmZp
    jgvKfy2Yg2hIPO3V

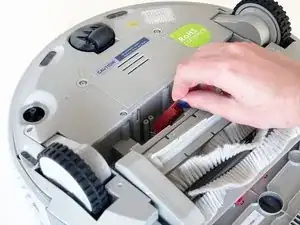

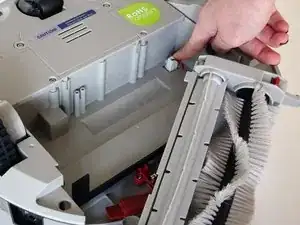

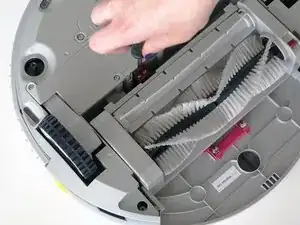

    • Plug in the brush compartment.

    • Then, replace its red brush fastener and install the 2 screws.

    • Position the brush compartment back in its original place.

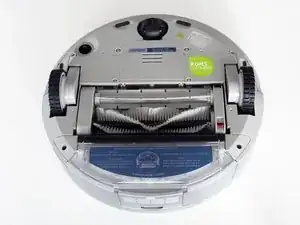

  15. 6aVJLK6kQDjcBCfv
    6aVJLK6kQDjcBCfv
    kNmsJGxlwVT5UmOa
    l3PwLbNajAyi5VES

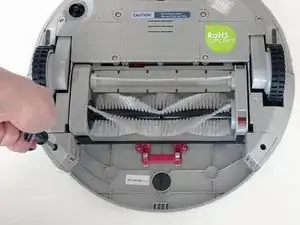

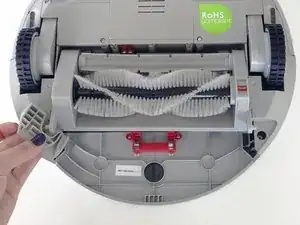

    • Reinsert the corner pieces on both sides of the dustbin, with the arms of the brush attachment linked.

    • Make sure the rubber strip is not stuck under the brush compartment before you reinstall the 2 screws in each of the corner pieces.

    • Make sure the bin can slide in easily before using bObi Pet again, and you've finished the repair.

Abschluss

Congratulations on completing bObi Pet's left or right wheel repair and happy cleaning!
