This guide allows you to repair bObi Pet's main brush motor yourself, and can help if the remote is showing an error 002.

You may also follow the video guide found here: https://www.youtube.com/watch?v=NUWf0k5y...

  1. NW11tphh3LUVHgAg
    NW11tphh3LUVHgAg
    UDRWCZK5SPHAVow2
    AsITsByP5KCWenFJ

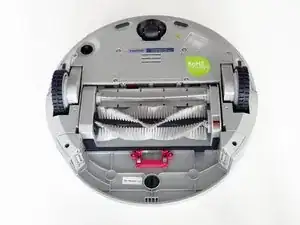

    • Before we get started, turn bObi Pet OFF and flip her over onto a flat surface.

    • Next, remove the dustbin.

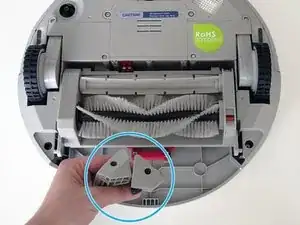

  2. 3PVCXXSb1GEDXwCp
    3PVCXXSb1GEDXwCp
    UtBw1qDj4jJMB5pj

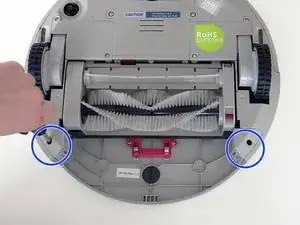

    • For the next step, remove the screws on both sides of the dustbin.

    • Then, remove the corner pieces that were held down by the screws.

    • Remember to keep all screws and parts removed from bObi as they may be needed for reassembly.

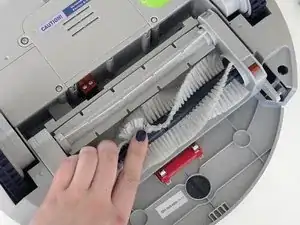

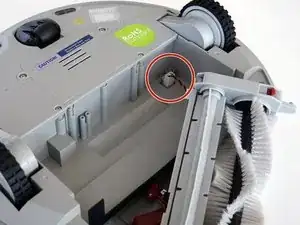

  3. 2UvyBhYmHPsSt3DA
    2UvyBhYmHPsSt3DA
    ijXgFPF5O5QuTXBB
    u3QSFJ3YqAjS2NAS

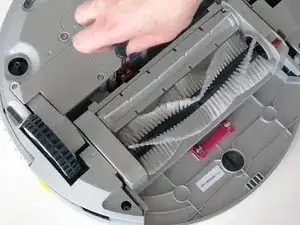

    • Grip the brush compartment and pull down to reveal two screws on a red fastener. Remove them with the screwdriver.

    • Pull the brush compartment up until it is freed from the red fastener.

    • Then, detach the brush compartment and set it aside.

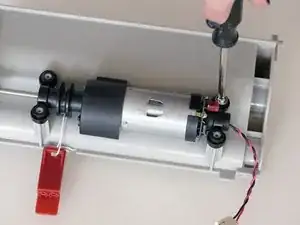

  4. G5ATMjk5VR6fZNxk
    G5ATMjk5VR6fZNxk
    fCyEWMDDt64tOsDR
    PdEyh2ixKtQpkrIm

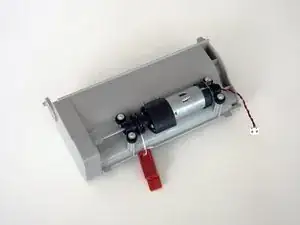

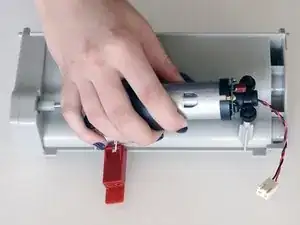

    • The main brush motor is located on the bottom of the brush compartment, the side opposite the main brushes.

    • Remove the 4 screws which secure it.

    • Then lift the motor up.

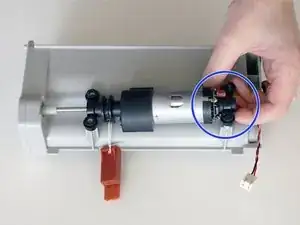

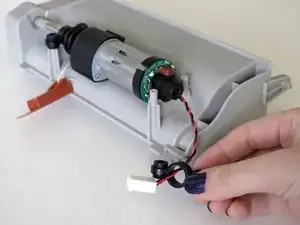

  5. A4dj1DclyN45bsmW
    A4dj1DclyN45bsmW
    XZieYDfRvS4tdHDM
    HOCShP1Eb6prfNnl

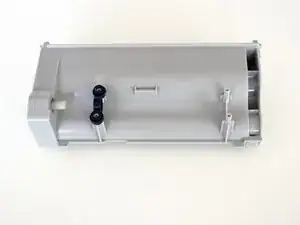

    • Remove the black stabilizer attached to the motor’s circuit plug end.

    • Then slide the motor out.

    • Now you’re ready to install bObi Pet’s new motor.

  6. Oj32ImTjVyrZRZdS
    Oj32ImTjVyrZRZdS
    ZwU6RxbNWbXBGVbj
    iwEwlxmBRoJB3CiN

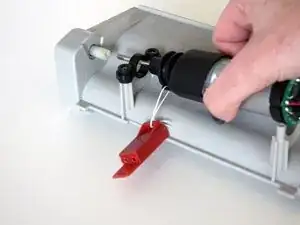

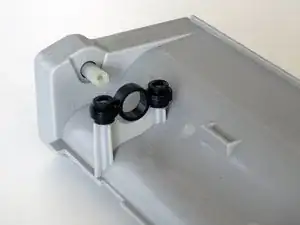

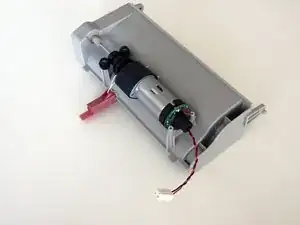

    • Slide the long metal end in through the first stabilizer.

    • The metal end should line up with a small holder on the brush compartment.

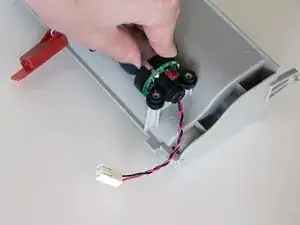

  7. nMAwvYtAtkILPhd2
    nMAwvYtAtkILPhd2
    3bXhRHUTHBrh1q1K
    5DTKFrAUOjZJIgLB

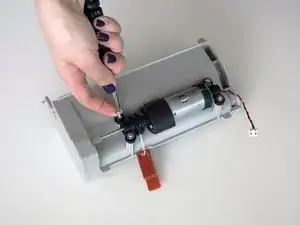

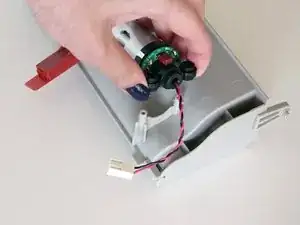

    • Place the stabilizer you removed previously onto the new motor so it lines up with the screw posts.

    • Push down so it holds securely. Then reinstall all four screws.

  8. sfsKaoSbc2wLKwZt
    sfsKaoSbc2wLKwZt
    VjQFB2oITCBMMgVM
    JEvZjdsSpEm1EJES

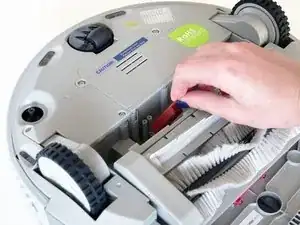

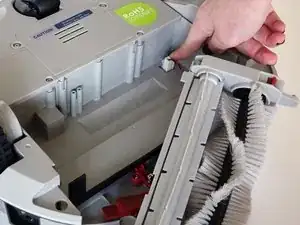

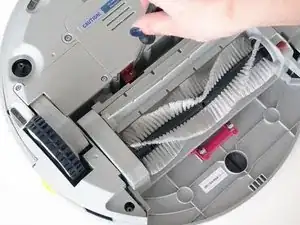

    • Now attach the brush compartment back onto bObi Pet. Plug it in first.

    • Then, replace its red brush fastener on the screw posts on bObi Pet and install the 2 screws.

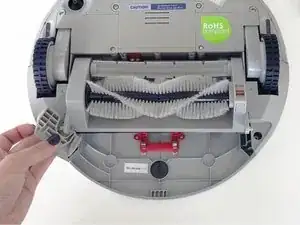

  9. qwksKRpJ4DEaL2DX
    qwksKRpJ4DEaL2DX
    GJfBFLVWGBRFYKd4

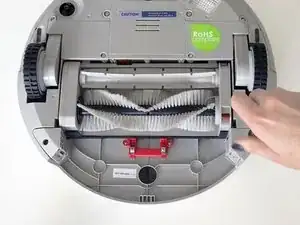

    • Position the brush compartment back in its original place.

    • Now reinsert the corner pieces on both sides of the dustbin, with the arms of the brush attachment linked.

    • Make sure the rubber strip near bObi Pet's dustbin is not stuck under the brush compartment.

    • Install the two screws on the corner pieces.

  10. o1uHxJifkGOMABnB
    o1uHxJifkGOMABnB
    GNCFBPaIdKa2gyGU

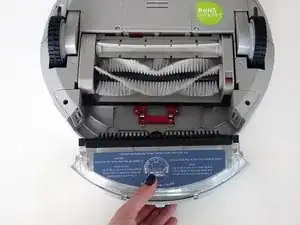

    • Ensure the bin slides in easily before using bObi Pet again, and your repair is complete.

Abschluss

When complete, bObi Pet's main brushes will be ready to sweep your floors again.
