How to remove and replace the motor for bObi's main brushes.
Werkzeuge
-
-

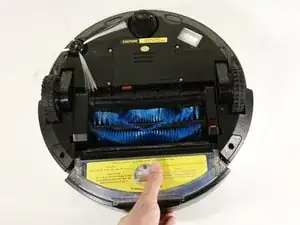

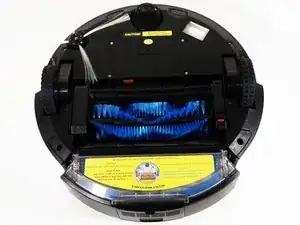

Remove bObi's dustbin. Press the small latch on the back and it will pop out.
-

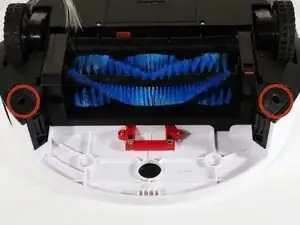

Uninstall the 2 screws close to bObi’s dustbin, plus 2 smaller screws above the main brushes.
-
-
-

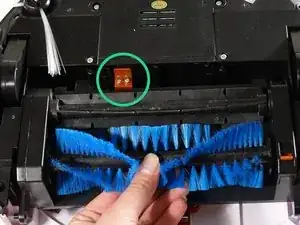

To detach the brushes completely, unplug them from bObi.
-

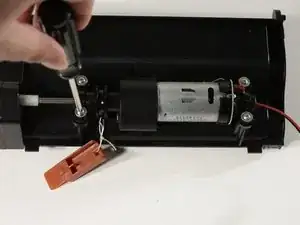

The motor is on the bottom of the main brush attachment. Uninstall the four screws which secure it, then lift the motor out.
-

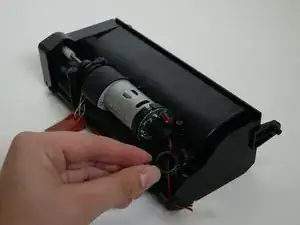

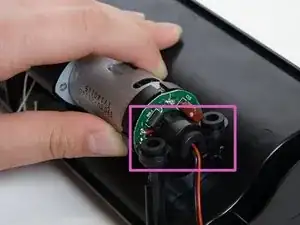

Remove the stabilizer attached to the motor’s end, closer to its circuit plug before pulling the whole piece out.
-
-
-

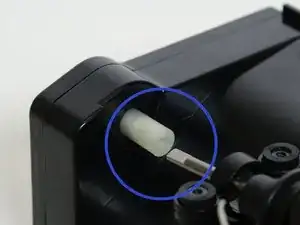

Slide the long metal end in first, through the second stabilizer, so the end fits inside the motor holder.
-
Place the stabilizer you removed previously on the new motor.
-
-
-
Align the stabilizer with the screw posts on the brush holder, then install all four screws.
-

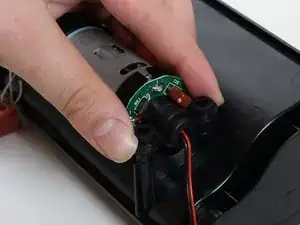

Connect the motor’s circuit plug.
-

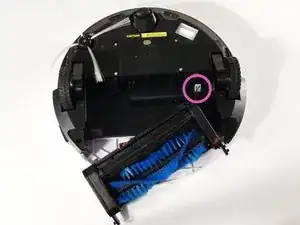

Place the main brush attachment in bObi so it sits flat.
-
Line up the red fastener on bObi, and replace its two smaller screws.
-
-
-
Lay the two screw holders down. Then install each screw.
-
Slide bObi's dustbin back in until it locks in place.
-
To reassemble your device, follow these instructions in reverse order.
