Einleitung

For assistance putting bObi back together, follow the guide on closing bObi: Closing bObi's Cover Post-Repair

  1. 1GvoAArbibk4rcTm
    1GvoAArbibk4rcTm
    QLlFfxfboPKlZrnR
    • Remove bObi’s front wheel to access one of the screws holding bObi together.

    • Make sure the wheel is turned closer to bObi's front touch sensors. Use your screwdriver for leverage, and the wheel will pop up and out.

    • Uninstall the larger screw that sits deeper in the wheel compartment.

  2. CZpGeablrEIsXC15
    CZpGeablrEIsXC15
    sByYDnIHVPaFdrra
    4XonlWeN6i5rXraD
    • Remove bObi's dustbin.

    • Uninstall the 2 screws close to the bin and 2 smaller screws above her main brushes.

  3. PlXT1SErYakasWKR
    PlXT1SErYakasWKR
    KXmP3ERGNicTauEK
    DcQqbN11goCwhWZI
    • Lift the brush holder. To detach completely, unplug it from bObi.

    • Remove the two screws on the dustbin contact point holder inside bObi.

    • There are 4 screws beneath the main brushes. Uninstall these, and open bObi up to expose her main circuit board.

  4. YoFKUGLaPOrvLEGv
    YoFKUGLaPOrvLEGv
    1FCZACIUR1sIX2UP
    BnjNqBsDKHNINyZY
    • Detach the two circuit plugs connecting bObi's cover to the main board and the cover will be completely removed.

  5. sxqQOdveGqac2qUF
    sxqQOdveGqac2qUF
    wrvGiOQRZGUAJrRF
    6fy1VU3wviTlZOcX

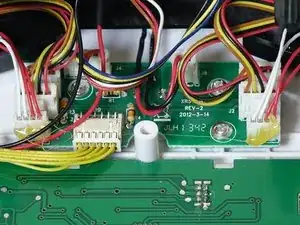

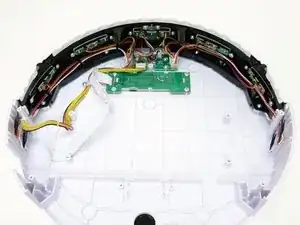

    • All of bObi’s wall detection sensors are plugged in to a small circuit board on the underside of the cover.

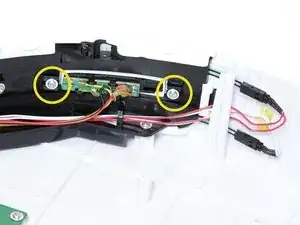

    • Refer to bObi’s check up test in order to determine which sensor is in need of repair. Then, remove the two screws holding it on the front bumper.

  6. InPxXDRJfZ1UfmNw
    InPxXDRJfZ1UfmNw
    NIwLn4Xtrnyn1Qvn

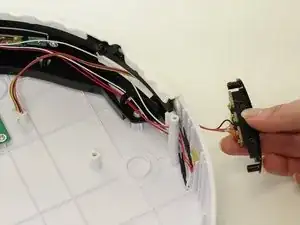

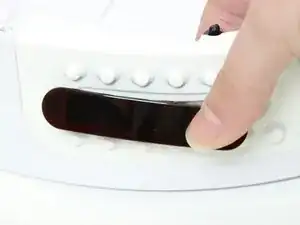

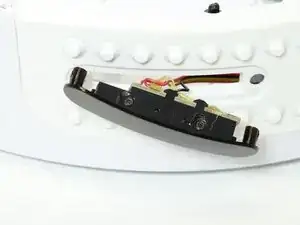

    • You will be able to push the sensor from the inside of the cover, so it pops out of its place on the bumper.

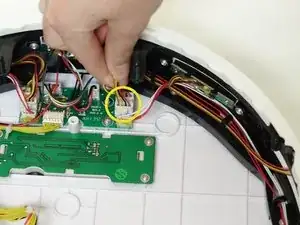

    • Unplug the appropriate circuit plug from the cover's circuit board.

  7. hUDeSEMabZWWelAH
    hUDeSEMabZWWelAH
    steifrnlsDSlCAsO
    FSG2caDwG6GdLSJ3

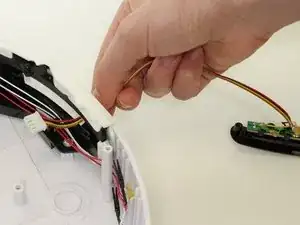

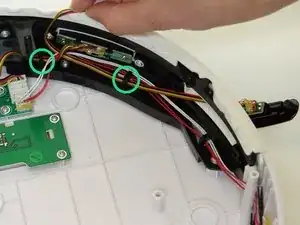

    • Unhook the wires from the holders on the inside of the bumper.

    • Feed the circuit plug and its wires through the open space in bObi’s bumper.

  8. iYWkhQImDqybPk1B
    iYWkhQImDqybPk1B
    pXtPQaQf2oQX6j4T
    iqTxVRxHX6CrZtZ2

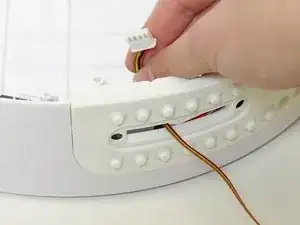

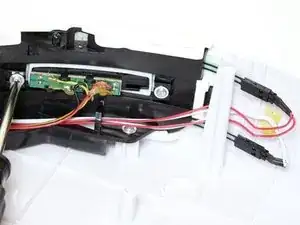

    • Put the circuit plug for your replacement part through the obstacle detection sensor’s open slot.

    • Place the actual sensor in its space on the bumper and install the two screws which secure it to bObi.

  9. bZP1DoDcJXUmuFHT
    bZP1DoDcJXUmuFHT
    gpWKmXt2gIAcXGRN

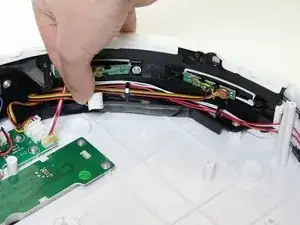

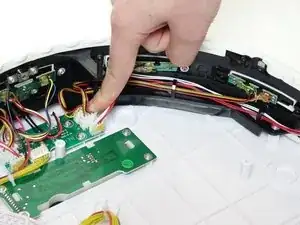

    • Feed the wires for the sensor's circuit plug back through the hooks on bObi's bumper.

    • Then, plug it into the empty spot on bObi’s cover circuit board.

    • To finish off this repair, follow the closing bObi manual: Closing bObi's Cover Post-Repair

Abschluss

To reassemble bObi, refer to the Closing bObi Guide.
