The step-by-step guide for removing bObi's cover and screen. For help putting bObi back together, refer to: Closing bObi's Cover Post-Repair
Werkzeuge
-
-

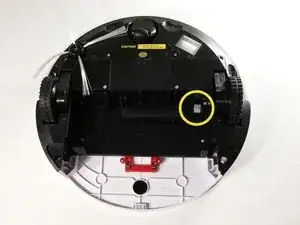

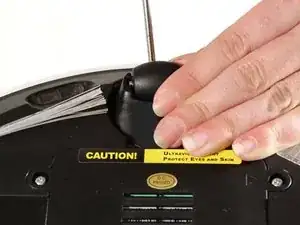

Remove bObi’s front wheel to access one of the screws holding bObi together.
-

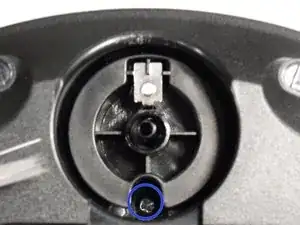

Uninstall the larger screw that sits deeper in the wheel compartment.
-
-
-

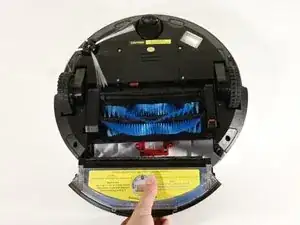

Remove bObi's dustbin.
-

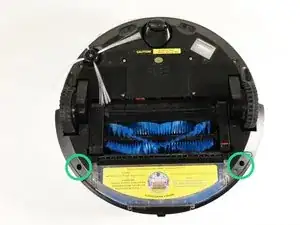

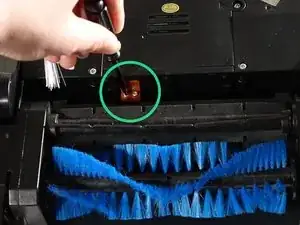

Uninstall the 2 screws close to the bin and 2 smaller screws above her main brushes.
-
-
-

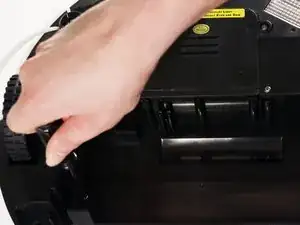

Lift the brush holder. To detach completely, unplug it from bObi.
-
Remove the two screws on the dustbin contact point holder inside bObi.
-

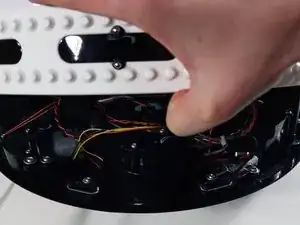

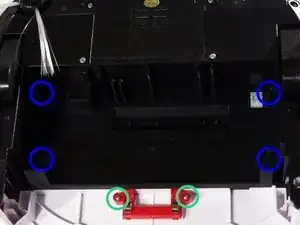

There are 4 screws beneath the main brushes. Uninstall these, and open bObi up to expose her main circuit board.
-
-
-

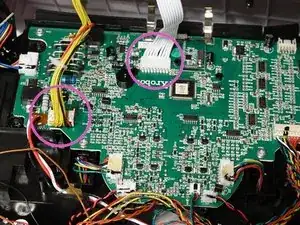

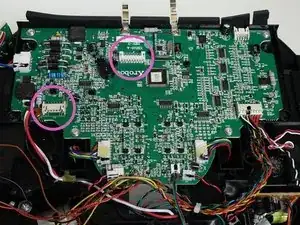

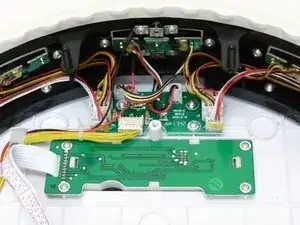

Detach the two circuit plugs connecting bObi's cover to the main board and the cover will be completely removed.
-
-
-

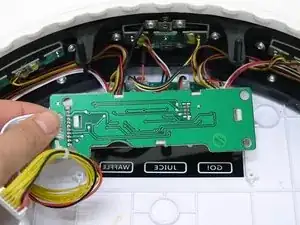

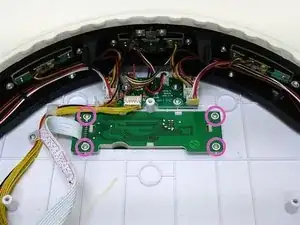

Remove the four screws that secure bObi's screen and lift the whole piece out.
-
Put the replacement screen in the open space.
-
-
-

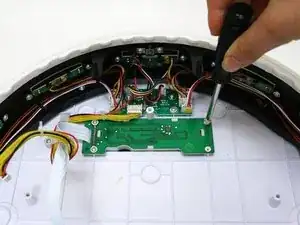

Re-install all four screws.
-
For a tutorial on closing bObi, see: Closing bObi's Cover Post-Repair
-
To reassemble your device, follow the guide for closing bObi, found here: Closing bObi's Cover Post-Repair
