Directions for opening bObi and removing the touch sensor strip under the bumper pads. For help closing bObi, see Closing bObi's Cover Post-Repair

  1. 1GvoAArbibk4rcTm
    1GvoAArbibk4rcTm
    QLlFfxfboPKlZrnR
    • Remove bObi’s front wheel to access one of the screws holding bObi together.

    • Make sure the wheel is turned closer to bObi's front touch sensors. Use your screwdriver for leverage, and the wheel will pop up and out.

    • Uninstall the larger screw that sits deeper in the wheel compartment.

  2. CZpGeablrEIsXC15
    CZpGeablrEIsXC15
    sByYDnIHVPaFdrra
    4XonlWeN6i5rXraD
    • Remove bObi's dustbin.

    • Uninstall the 2 screws close to the bin and 2 smaller screws above her main brushes.

  3. PlXT1SErYakasWKR
    PlXT1SErYakasWKR
    KXmP3ERGNicTauEK
    DcQqbN11goCwhWZI
    • Lift the brush holder. To detach completely, unplug it from bObi.

    • Remove the two screws on the dustbin contact point holder inside bObi.

    • There are 4 screws beneath the main brushes. Uninstall these, and open bObi up to expose her main circuit board.

  4. YoFKUGLaPOrvLEGv
    YoFKUGLaPOrvLEGv
    1FCZACIUR1sIX2UP
    BnjNqBsDKHNINyZY
    • Detach the two circuit plugs connecting bObi's cover to the main board and the cover will be completely removed.

  5. w6COJDAmjg5FTlge
    w6COJDAmjg5FTlge
    VLIKaOowxi6t1GLH

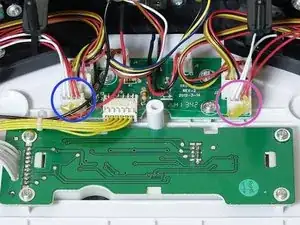

    • The sensor strips underneath bObi's 80 exterior touch sensors are attached to the cover circuit board by two wires, one red one white.

    • The circuit plug on the left communicates with bObi's right half of touch sensors.

    • The plug on the right controls bObi's left half of touch sensors.

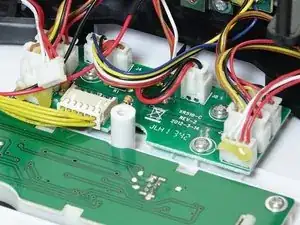

    • Remove the appropriate touch sensor's circuit plug from the cover's circuit board.

  6. hpPhmYxodK2dnM5u
    hpPhmYxodK2dnM5u
    aWwl4CoV3YCbYyrI
    nZArBillZrMvfDMl

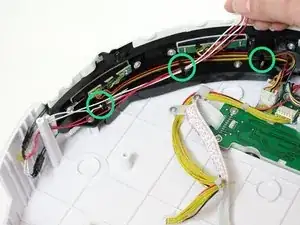

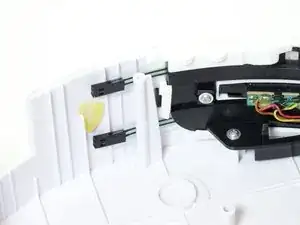

    • Feed both wires towards the end of the bumper.

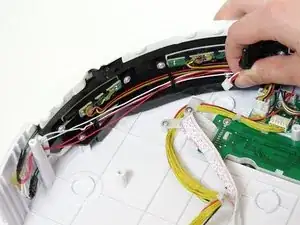

    • Continue along the inside edge of the bumper until the wires are unhooked from each holder.

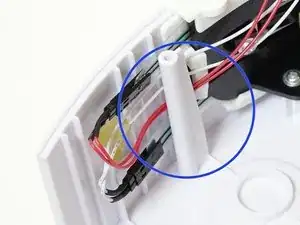

    • Then, pull both out from the post at the bumper's edge.

    • Pull each wire to the side to disconnect it from the touch sensor adapter.

  7. 5BOB65VKpDN4AgGS
    5BOB65VKpDN4AgGS
    ZENjSZMCxLWnIaAU
    qiGcWQkXgMaZvZpn

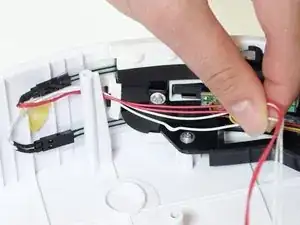

    • Plug in the white wire to the bottom touch strip connector, and the red one on top.

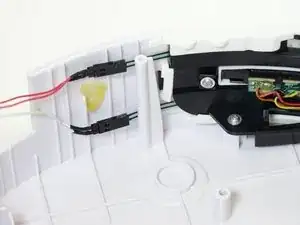

    • Tuck the wires behind the white post at the end of the bumper. Then, feed them back through the hooks.

  8. LwqI42XUBMVU43To
    LwqI42XUBMVU43To
    i4nLluuSffOLnSEj

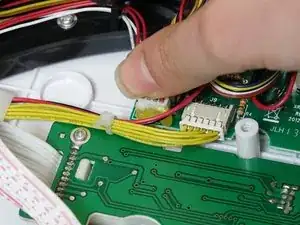

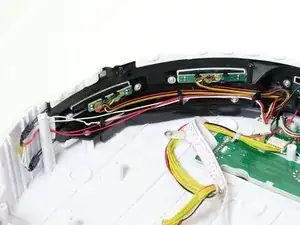

    • Firmly press the circuit plug for the replacement sensor in to the open space.

    • To put bObi back together, follow the steps in the reassembly guide: Closing bObi's Cover Post-Repair
