The how-to guide for opening bObi and replacing her UV lamp. For instructions on closing bObi when the replacement is complete, refer to Closing bObi's Cover Post-Repair

  1. 1GvoAArbibk4rcTm
    1GvoAArbibk4rcTm
    QLlFfxfboPKlZrnR
    • Remove bObi’s front wheel to access one of the screws holding bObi together.

    • Make sure the wheel is turned closer to bObi's front touch sensors. Use your screwdriver for leverage, and the wheel will pop up and out.

    • Uninstall the larger screw that sits deeper in the wheel compartment.

  2. CZpGeablrEIsXC15
    CZpGeablrEIsXC15
    sByYDnIHVPaFdrra
    4XonlWeN6i5rXraD
    • Remove bObi's dustbin.

    • Uninstall the 2 screws close to the bin and 2 smaller screws above her main brushes.

  3. PlXT1SErYakasWKR
    PlXT1SErYakasWKR
    KXmP3ERGNicTauEK
    DcQqbN11goCwhWZI
    • Lift the brush holder. To detach completely, unplug it from bObi.

    • Remove the two screws on the dustbin contact point holder inside bObi.

    • There are 4 screws beneath the main brushes. Uninstall these, and open bObi up to expose her main circuit board.

  4. YoFKUGLaPOrvLEGv
    YoFKUGLaPOrvLEGv
    1FCZACIUR1sIX2UP
    BnjNqBsDKHNINyZY
    • Detach the two circuit plugs connecting bObi's cover to the main board and the cover will be completely removed.

  5. RLUIsvmaCLGGEpWC
    RLUIsvmaCLGGEpWC
    QAxQSYngLnOkRCZH

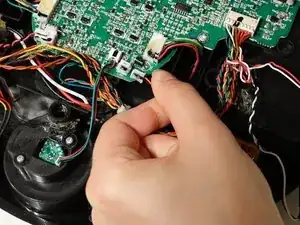

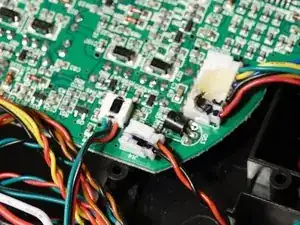

    • The UV lamp attaches to the right side of bObi’s main board. Remove the circuit plug, and break off any glue holding it in place.

  6. I4jkC5VXMGLfOsC3
    I4jkC5VXMGLfOsC3
    AwRJVbqRCshCve16
    hj1Ojgm4J6oJri2h

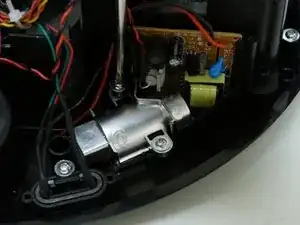

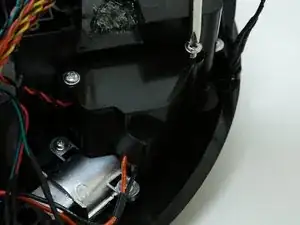

    • Remove four more screws. Two found on the UV lamp's circuit board cover and two more holding the actual lamp on bObi.

    • Lift the cover up to expose the circuit board.

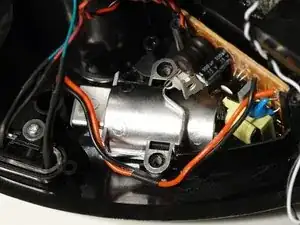

    • Slide the UV lamp's circuit board up to remove it from the holders on bObi. Then lift the whole lamp out.

  7. crGUGJtUbYBsIOOv
    crGUGJtUbYBsIOOv
    DI1XP6th1Bo2p5yF
    bhs4VxIUDCgxpkCD

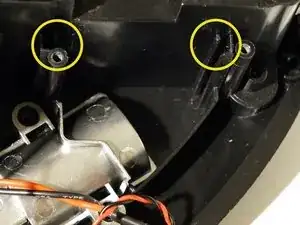

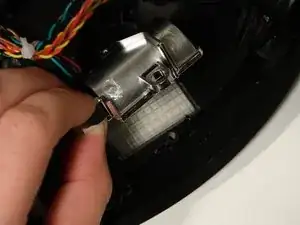

    • Lay the lamp down and reinstall the two screws securing it on bObi.

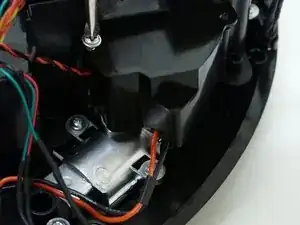

    • Slide the circuit board of the new UV lamp down into its holders inside bObi.

  8. nAEMLEHmFIMGepea
    nAEMLEHmFIMGepea
    NhtCcNCBVjwZd3xD
    CfgBiLX2GKFAI6TF

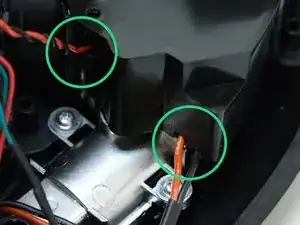

    • Replace the circuit board’s cover and screws. Make sure the wires for the UV lamp and its circuit plug sit in the indentations of the circuit board cover.

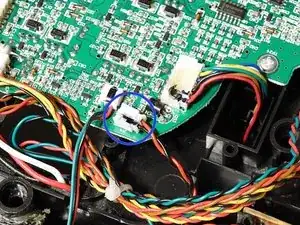

    • Attach the circuit plug to the main board and you’ll be ready to close the cover. Instructions on closing bObi can be found in the guide: Closing bObi's Cover Post-Repair
