Einleitung

  1. BZsPuQcSjf4raEkF
    • I will be showing you how to look at the motherboard of a coin counter

    • the first step is to flip it to the back to see the little screws

  2. kroNiHTNRqvJEvP6
    kroNiHTNRqvJEvP6
    nyWpirZMOwKNMrLC

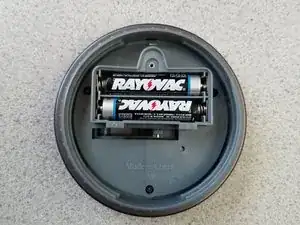

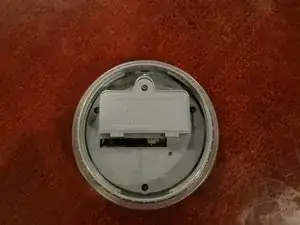

    • the second step is to remove the batteries.

    • To remove the batteries you have to take the top screw off

    • the second picture will show you how i toke out the screw in order to take out the batteries.to be safe when i get to the motherboard

  3. OgyBPqMRFVpdCNyk
    OgyBPqMRFVpdCNyk
    DxxxQhTQBDc63At4
    F1knBPDfvCGQ3DHQ

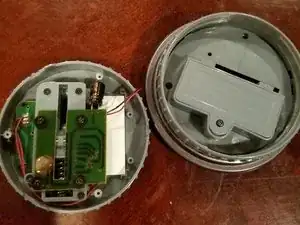

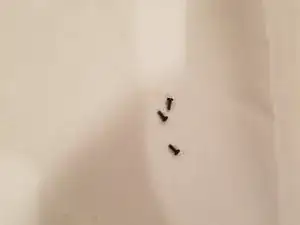

    • the third step is to take out the 3 little screws in which side of the circle

    • In total you should have 3 screws. make sure you don"t lose them in case you want to put it back together

  4. TNNWC1ALHAHVAJUR
    TNNWC1ALHAHVAJUR
    ZBubnXjgISyFKRot

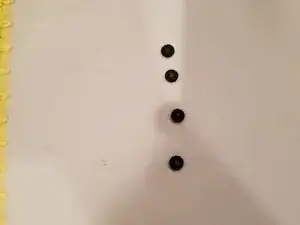

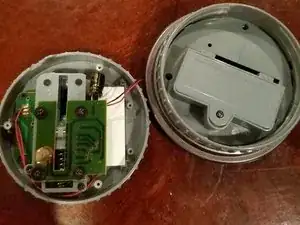

    • The fourth step is to remove the othere crews from the motherboard. You need to remove the crews in order to take out the motherboard.

    • You have to have the 4 screws if your switch the motherboard to a other one.

  5. JoW5PRpIar2sIUA6
    JoW5PRpIar2sIUA6
    SXqATIlkQgObgKxZ

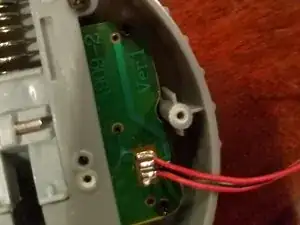

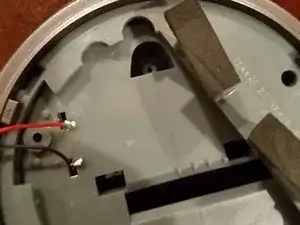

    • The 5th step is the hardest part because you have to now remove the red and black wires from both sides so then you can see the motherboard.

    • Be very careful removing or pulling the wires because it can break the other wires which will not work anymore.

  6. cYBSTkOBqgkXSaw4

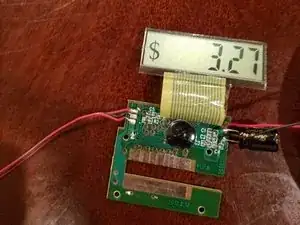

    • The last step is you got to the motherboard which was my goal. you could use the motherboard for other projects or just put it back for more a challenge.

    • My decisions was to put it back together, so then i can have more of a challenge. thank you for your time and i hoped this helped

Abschluss

To reassemble your device, follow these instructions in reverse order.
