dreamGEAR Quad Dock Pro Power Board Replacement

Geschrieben von: Jacob
  • Kommentare: 0
dreamGEAR Quad Dock Pro Power Board Replacement

Schwierigkeitsgrad

Very easy

Schritte

9

Zeitaufwand

5 - 10 Minuten

Einleitung

The Power Board is the board that charges the PS Move controllers. This is how you replace it.

  1. fWXOkYmkGGgbe6jE
    fWXOkYmkGGgbe6jE
    5YYOfLwMIIuK3EtV

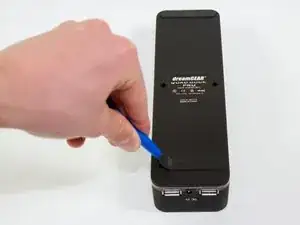

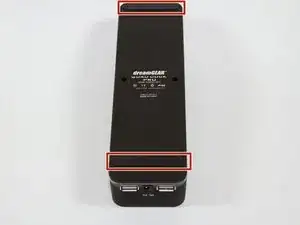

    • Remove the rubber foot pads on the bottom of the device using a plastic opening tool.

  2. xYZwFrCVpBBmHfS6
    xYZwFrCVpBBmHfS6
    jdMYOrHSGHjvXGyG

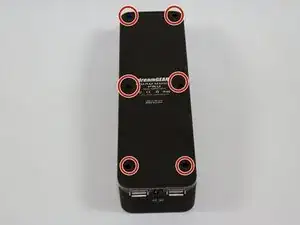

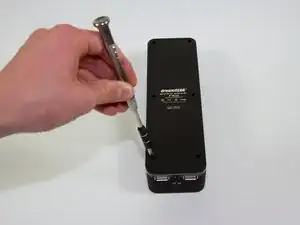

    • Remove the six 2 mm PH0 screws on the bottom of the device.

    • Four of those screws are located under the foot pads.

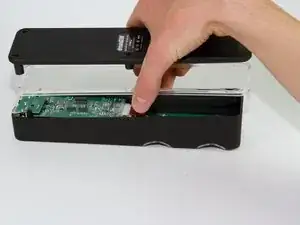

  3. CW5EChNAKIKbwTxh

    • Gently remove the bottom of the device.

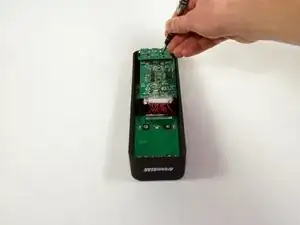

  4. S3okWpXCPoVDXtOr
    S3okWpXCPoVDXtOr
    6fQYQwJyMWyJGIbn

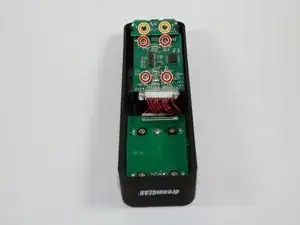

    • Remove the four 1.8 mm J1 screws.

    • Remove the two 2mm PH0 screws.

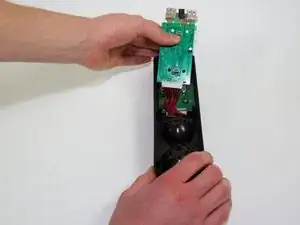

  5. 6VXuMDTcSWennQvk

    • Gently pick up the mother board

    • Pick the mother board straight up or you may risk damaging the mini-USB charging ports.

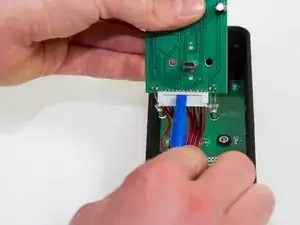

  6. HTFG12rGmqtPXACJ
    HTFG12rGmqtPXACJ
    ZrDKWbfvJAEKSkUT

    • Use a plastic opening tool or similar tool to gently pry the power ribbon cord out of its port.

  7. gLk2GbToerHDcJZX
    gLk2GbToerHDcJZX
    mi2w4rBIgicOYllF

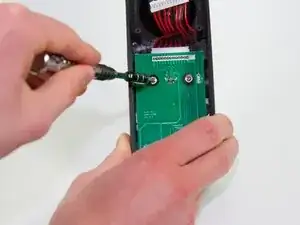

    • Remove the four 1.8 mm PH0 screws that are holding the board in.

    • When you remove these screws, the plastic cups inside the PS Move stations will fall out.

  8. wcMouYTTXrUkUNpK

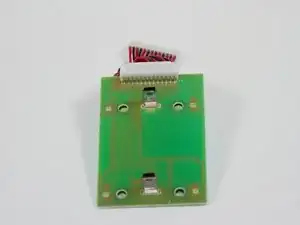

    • Pick up the board.

    • Pick the board straight up, or you risk damaging the charging ports.

  9. MGfMvpxKBYcKJBm6

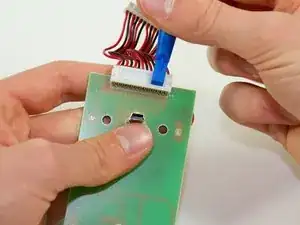

    • Using a plastic opening tool or a similar tool, gently pry the power ribbon cord out of its port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
