eMac Fan Assembly Replacement

Geschrieben von: Chris Green
  • Kommentare: 3
eMac Fan Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 - 30 Minuten

Einleitung

The fan assembly contains the AC jack, and must be removed to remove the motherboard.

  1. ruZjpXJjFDSZ3wQh
    ruZjpXJjFDSZ3wQh
    CYTmpnpUtObZ6KiL
    pGqjApJeFxmLIcB4

    • It should be noted that these guides are written based on a late-model eMac (2005, 1.42GHz, DDR). They will differ slightly from the older model eMacs that use PC-133 RAM.

    • Lay the eMac screen-down on a flat surface. I've found it convenient to use a carpeted floor because the computer is so heavy.

    • Remove the single phillips #2 screw on the RAM door, and remove the door

    • The screw is captive in the door, so don't worry about losing it.

    carpet or towel is the way to go. don’t put on bare hardwood floor or table as you may scratch it

    Duck -

  2. GXZDOZ6XKxrewVLH

    • Before starting this process it's important to note that the eMac can have some seriously dangerous voltages inside of it, thanks to the CRT display. Before working on an eMac, you should unplug it, press the power button to clear any stored charge on the motherboard, and then let it sit for 24-hours (or more) to allow the CRT to discharge.

    • You can read more about CRT safety procedures here. If you aren't experienced with working on devices featuring a CRT, it's recommended that you don't proceed any further.

    • On the bottom side of the eMac, remove the following screws:

    • A single 2.5mm hex screw

    • Two #2 phillips screws

  3. ZOfYnYGAFaodXYi6
    ZOfYnYGAFaodXYi6
    yEWBHmNJZ2GYJZl4
    2XTQdIFlcWgQKZoK

    • Remove two 2.5mm hex screws from each of the other sides of the computer.

  4. GUKXV4Tspg51vVhV
    GUKXV4Tspg51vVhV
    QQSp5WrBeiD1FMGw

    • Now, the shell can almost be separated from the computer.

    • There is a cable that connects to the power button. This must be disconnected before removing the housing completely.

    • Lift the housing enough to allow you to fit your hand through the access door, and disconnect the cable at the power button.

    What happens if you pull the shell off before does couldn’t connecting the power button and completely rip the wires right out of the quick connect,, well that’s exactly what I did and I need to know how to fix it please thank you

    Kolby Hughston -

  5. JHW5O5bJl3KuFZDD

    • Now the entire shell can be removed from the computer.

  6. l5doKYxDCX1RAiCn
    l5doKYxDCX1RAiCn
    vQxBTMfyNTkURTja
    iBRPAqdcbfvcjO2W

    • The motherboard access panel is held on by 4 phillips #2 screws.

    • Remove the screws, then use your fingers to pull on the top tabs to separate the panel from the computer frame.

  7. YtUPZrohuk5CAqrB
    YtUPZrohuk5CAqrB
    1JtJpbErU2JRAlhN
    2aYPCaSDHX1Pe3GM

    • To remove the fan assembly, several cables must be disconnected first:

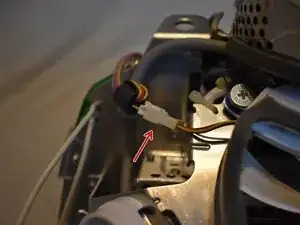

    • 3-pin fan cable

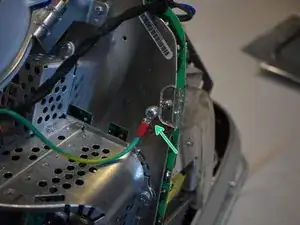

    • Ground wire, requires phillips #2 screwdriver

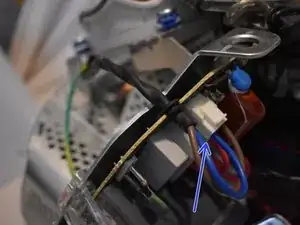

    • 2-pin AC cable to power supply

  8. m6hFH5iaoA2FFSrM
    m6hFH5iaoA2FFSrM
    5bXOasJEegBVUYrM

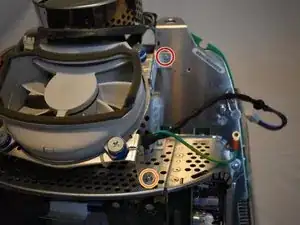

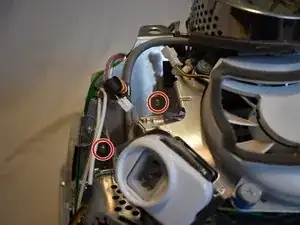

    • Now remove the following screws securing the fan assembly:

    • 3x coarse thread phillips #2

    • 1x machine thread phillips #2

  9. QKtlrkGUEBvKhSdM

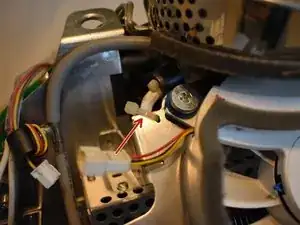

    • There may be a zip tie holding another cable to the fan assembly, cut it to remove the fan assembly.

  10. ZFC4VlxCdGuDK4vQ
    ZFC4VlxCdGuDK4vQ
    bngMTyaVfg3yWguP

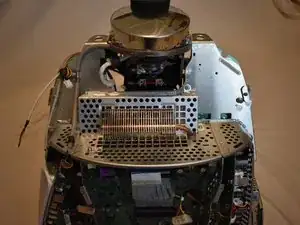

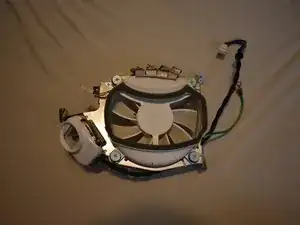

    • You should now be able to remove the fan assembly.

    • Doing this will expose more of the CRT neck, be careful not to touch this area because it can contain high voltages (and is fragile)

Abschluss

To reassemble your device, follow these instructions in reverse order.
