Einleitung
The hard drive in the eMac is pretty tough to get to, and requires disassembling most of the computer.
Werkzeuge
-
-
It should be noted that these guides are written based on a late-model eMac (2005, 1.42GHz, DDR). They will differ slightly from the older model eMacs that use PC-133 RAM.
-
Lay the eMac screen-down on a flat surface. I've found it convenient to use a carpeted floor because the computer is so heavy.
-
Remove the single phillips #2 screw on the RAM door, and remove the door
-
The screw is captive in the door, so don't worry about losing it.
-
-
-
Now, the shell can almost be separated from the computer.
-

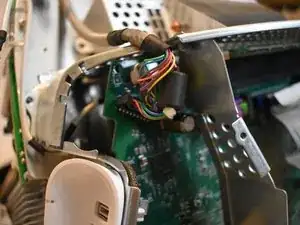

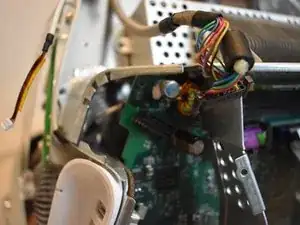

Lift the housing enough to allow you to fit your hand through the access door, and disconnect the cable at the power button.
-
-
-
The motherboard access panel is held on by 4 phillips #2 screws.
-
Remove the screws, then use your fingers to pull on the top tabs to separate the panel from the computer frame.
-
-
-

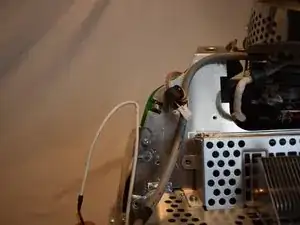

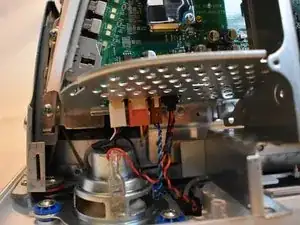

To remove the fan assembly, several cables must be disconnected first:
-
3-pin fan cable
-

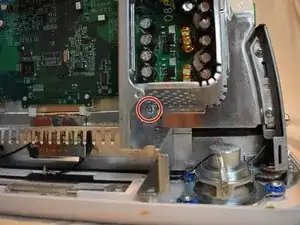

Ground wire, requires phillips #2 screwdriver
-
2-pin AC cable to power supply
-
-
-
Now remove the following screws securing the fan assembly:
-
3x coarse thread phillips #2
-
1x machine thread phillips #2
-
-
-
There may be a zip tie holding another cable to the fan assembly, cut it to remove the fan assembly.
-
-
-
There is a large display connector that must be removed. This can be done by squeezing the tabs and pulling.
-
-
-

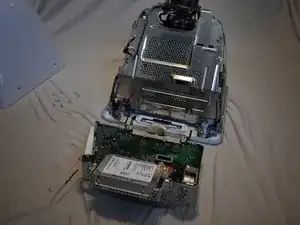

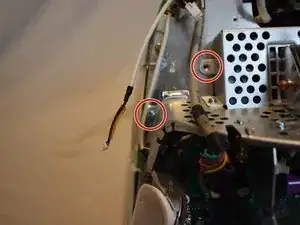

There are several phillips #2 screws that hold the eMac motherboard assembly to the rest of the computer. They will all need to be removed.
-

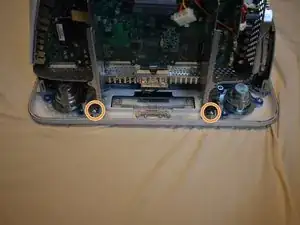

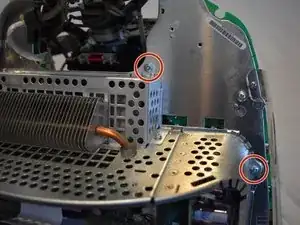

2 large ones near the drive bay door.
-
7 smaller ones scattered around
-
-
-

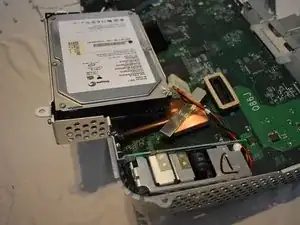

The hard drive is fastened to a caddy. In order to remove it, the caddy must be removed first.
-

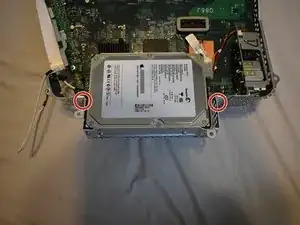

It is secured to the motherboard assembly with two phillips #2 screws. Remove them, but don't pull the drive out yet.
-
-
-

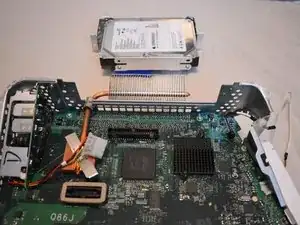

The drive is still connected with an IDE cable, which is folded under the caddy.
-

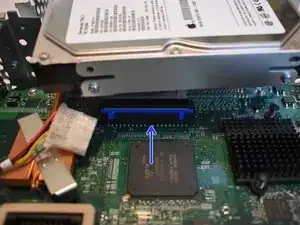

Disconnect the IDE cable from the motherboard, and lift the drive caddy out.
-
-
-

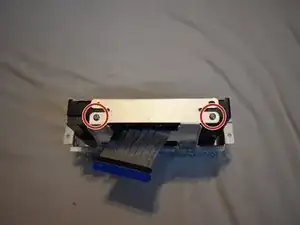

The hard drive is held in the caddy with four phillips screws. Remove them.
-
Also disconnect the IDE cable from the drive. It can now be removed from the caddy.
-
To reassemble your device, follow these instructions in reverse order.
