How to replace the PRAM Battery. Replace the battery if your date and time are resetting or your printer or internet setting are being lost.

  1. qiroLCNjpHyrEqMD
    qiroLCNjpHyrEqMD
    eVnUYd5Dfc3EPLke

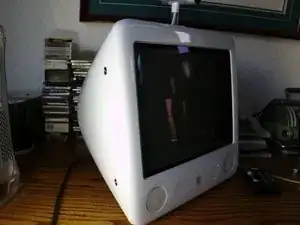

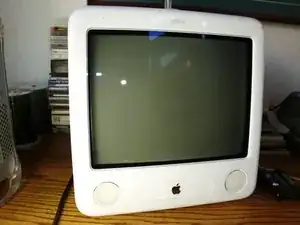

    • Lay a towel (to protect the screen) on your work area and place the unit face down with the bottom facing you.

  2. PVFwhUc3bDeF2wVe
    PVFwhUc3bDeF2wVe
    b3ya3xYvNF2ZEyIG

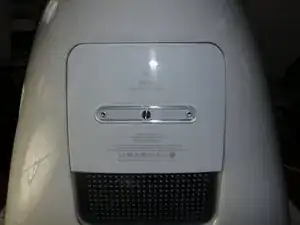

    • The access panel is held in place by one Phillips screw. Unscrew it.

    • Unplug the machine after touching the metal housing to prevent ESD (electro static discharge)

  3. ITGkm4yLGHMQMpZw
    • The battery is located just to the left and below the RAM slots.

    • Note the positive is to the right and negative to the left. There is a + sign located on the logic board to the right of the battery.

    • Care must be taken when removing the battery to prevent it dropping into the machine. It pulls straight out. Use a small instrument like a dental pick or flathead screwdriver to lift the + end out. I use a large hemostat to hold the battery.

    • After removal of the old battery and replace with a new one by pressing it into place.

    • Replace the access panel. Turn it over and plug it in. Start up and go under the Apple to System Preferences - System - Date & Time. If you have an internet connection check the box to automatically and select Apple Americas.

    • If no internet just set the date and time manually.

    • Next select the Time Zone box. Click the curser on the map to the closest city to you.

    • Next click the Clock box and select the type of display you prefer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
