Einleitung
This type of electric heater is sold in various variants and under different brand names. If they fail, it's usually the thermal cutout. This is quite easy to replace.
Werkzeuge
Ersatzteile
-
-
I have encountered this type of stove broken a number of times; each time the thermal fuse had blown.
-

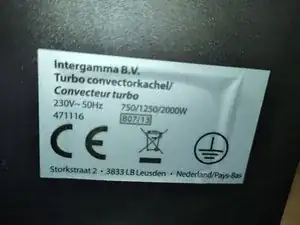

This is from Intergamma BV, the turbo convector heater 471116 B07/13, but there are a number of comparable models with the same problem, for example the Tristar KA-5911.
-
The manufacturer of the Tristar said on inquiry that the thermal fuse should be rated at 157°C.
-
-
-

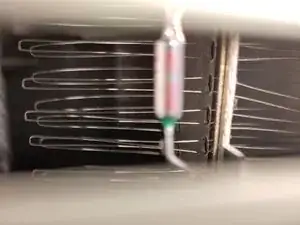

The thermal protection is located at the bottom of the radiator, usually if it has burned out its value can no longer be read.
-

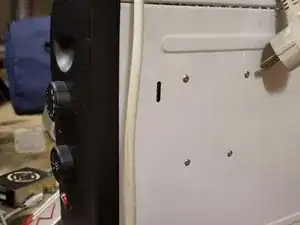

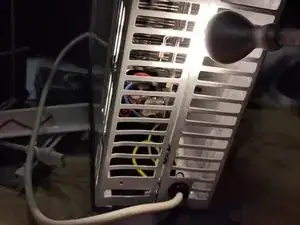

Opening is a little different for every stove, but not difficult. Usually you need to unscrew two or four screws under the legs; some require straightening of some thin steel tabs that connect two plates together.
-

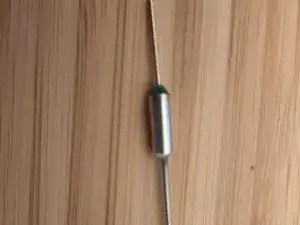

The broken thermal protection can be cut loose, and the new one can be soldered in.
-
