enTourage Pocket eDGe Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

The enTourage Pocket eDGe may experience battery failure. If you need to replace the battery of your enTourage Pocket eDGe for any reason, follow this guide.

  1. FGWLwu4xkEZF1XCX
    FGWLwu4xkEZF1XCX
    BeDPRCQPxu4POgXR
    XsOehmDFJfIIiaWB

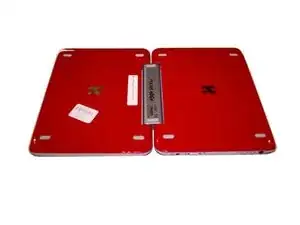

    • Make sure the device is powered off before beginning.

    • Open the Pocket Edge and place device with the screens face down. The side containing the stylus should be on the left.

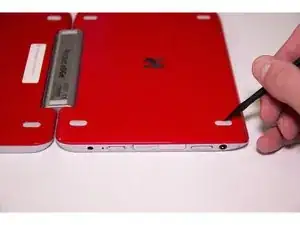

    • Remove all eight elliptical rubber tabs covering screws using your finger or spudger.

  2. F56KHIaTjStRMuws

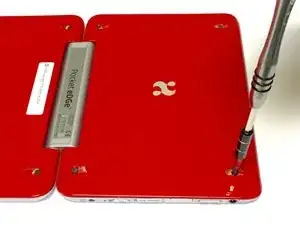

    • Using your J1 Phillips head screwdriver, remove all eight 6mm screws from the back of your device.

  3. IMRTFHlX4LTdfUhO
    IMRTFHlX4LTdfUhO
    SGaElG11ywetY2Rn
    QLdsHPuReVjZdCtx

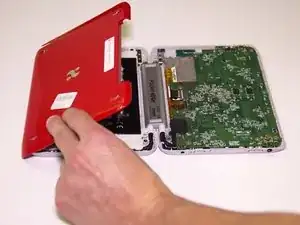

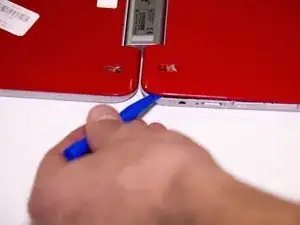

    • Using the plastic opening tool, lift the back plate from both sides of your device and remove them.

  4. EHlohCaURnuhniNf

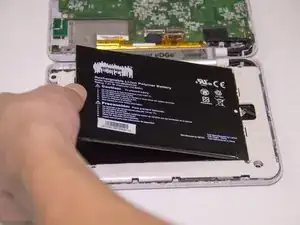

    • Locate the side containing the battery. Lift the top of the battery out using your finger and the indentation at the top.

  5. DUUDOeFIUZ1AvwIU

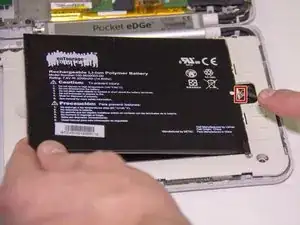

    • Carefully unplug the bottom side of the battery from the connecting plug and set the disconnected battery aside.

Abschluss

To reassemble your device, follow these instructions in reverse order.
