hp pavilion 15-cc023cl Headphone Jack Replacement

Geschrieben von: Stephanie Henry
  • Kommentare: 0
hp pavilion 15-cc023cl Headphone Jack Replacement

Schwierigkeitsgrad

Difficult

Schritte

17

Zeitaufwand

45 Minuten

Einleitung

After performing all possible software troubleshooting, if you're headphone jack still doesn't work, you will have to replace the entire motherboard because the jack is permanently attached to the motherboard.

  1. lBKfxQNH2A3IWyNI
    lBKfxQNH2A3IWyNI
    LSphQgJ21SrKdSNC

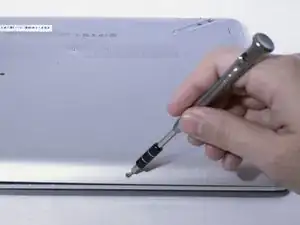

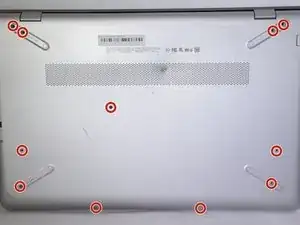

    • Use a PH000 screwdriver to unscrew the eleven 4mm Phillip head screws located on the back panel.

  2. qKyvTiQATVSB2LuA

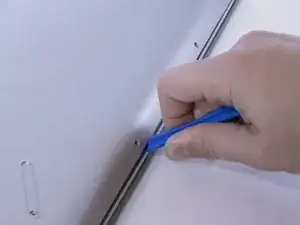

    • Using the iFixit opening tool, pry open and remove the back cover of the laptop.

    • Be gentle when applying force to the cover.

  3. NGNgmqb4CXodUj6R
    NGNgmqb4CXodUj6R
    3dQppYVdIOpXcjUd

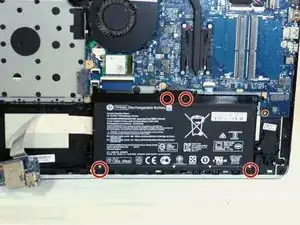

    • Use a PH000 screwdriver to unscrew the four 3.5mm Philips head screws located on the battery.

  4. df2yXIonepNAuXTA
    df2yXIonepNAuXTA
    NQZ256PEpk4gjMQC

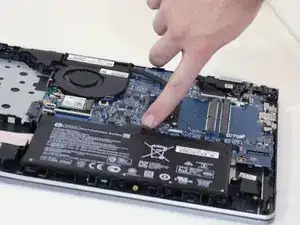

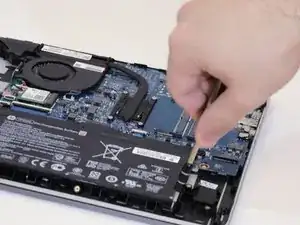

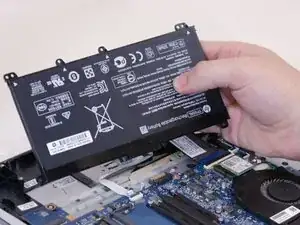

    • Disconnect the port connecting the battery and the motherboard and then remove.

  5. 1PGHKJMBKGJXrP2y

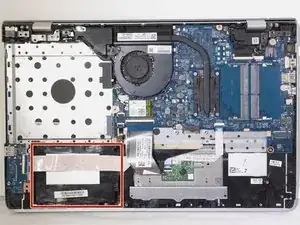

    • Use a spudger to lift the latch that holds the hard drive cable in place.

  6. qSQneMveS1KoFycL

    • Use a plastic opening tool to pry the hard drive out.

  7. cMFL6sGpIYqcGyIh

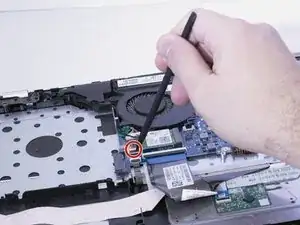

    • Disconnect the hard drive cable.

  8. W3kNP4PaWWLI2Aua

    • Lift the plastic wedges up on both sides of the hard drive.

  9. 1GwISDWNpvaRm53P

    • Locate the motherboard.

  10. EOfsgdcmcUVjoZKq
    EOfsgdcmcUVjoZKq
    HeySEi2YfmRkECkH

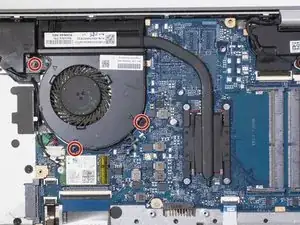

    • Use a PH0 screwdriver to unscrew the three 3 mm Phillips head screws located on the fan.

  11. sJInbTR1oAXjYLyR

    • Use a PH1 screwdriver to unscrew the four 3mm Phillips head screws located on the processor cover.

    • Disconnect the cable.

  12. 4L6WFpJyW6VswhZB

    • Disconnect the plastic arm attached to the processor and remove.

    • Disconnect the cable attaching the fan to the motherboard and remove.

  13. EFXkleJIPfHLViss

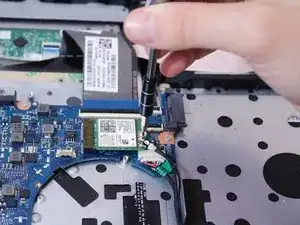

    • Use a PH1 screwdriver to unscrew one 3mm Phillips head screws on Wifi card.

    • Disconnect the Wifi card.

    • Be careful not to break any of the connectors.

  14. ROewmUrEpUZKSdgq
    ROewmUrEpUZKSdgq
    BaHU6ZOH3W1AjENU
    xGdlcoUtwKJx5xry

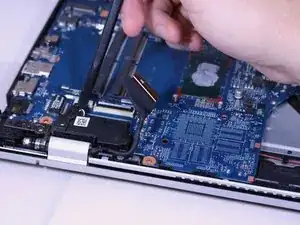

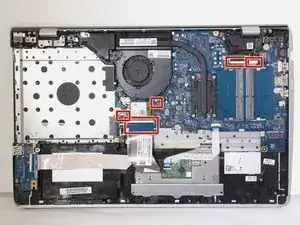

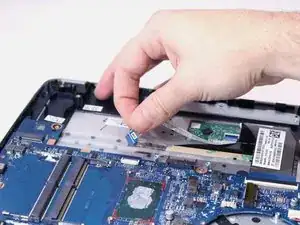

    • Disconnect the 5 cables to keyboard and speakers.

    • Be careful not to break any of the connectors.

    • You may have to pry some up with the spudger.

  15. lyAfSYNUTYgOfywk
    lyAfSYNUTYgOfywk
    3nxEtnInFKyoIPI1

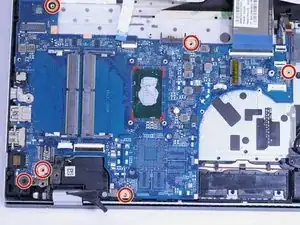

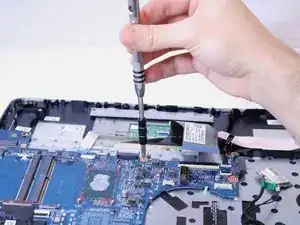

    • Use a PH1 screwdriver to unscrew six 3 mm Phillips head screws on the motherboard.

  16. 6FRv3YMU6b4QAIHG

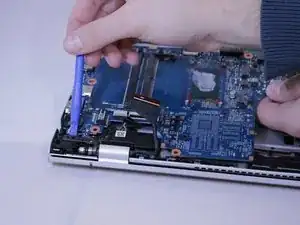

    • Use the iFixit opening tools to pry motherboard from back of laptop.

  17. OGwaVFxDWIxU1IQJ

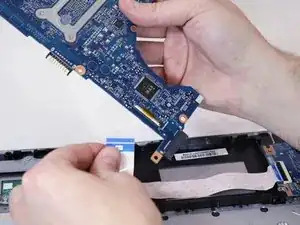

    • Disconnect SD and USB card cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
