iBUYPOWER Trace 4 9310 M.2 NVMe Drive Replacement

Geschrieben von: Kylie Facison
  • Kommentare: 1
iBUYPOWER Trace 4 9310 M.2 NVMe Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 15 Minuten

Einleitung

This guide will show you the steps on how to replace your M.2 NVMe Drive in your iBUYPOWER Trace 4 9310 desktop. The iBUYPOWER Trace 4 9310 comes with 2 SATA ports and 1 M.2 NVMe Drive port.

This guide can be completed within a few minutes, and you only need a small Phillips head screwdriver.

As a precaution, unplug and turn off your computer before working on it.

  1. S4ebZc1FFFR5tjSK

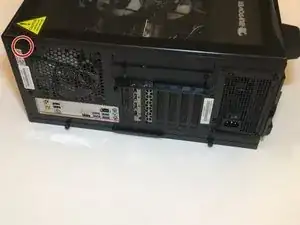

    S4ebZc1FFFR5tjSK

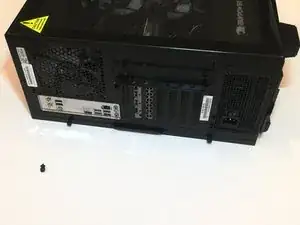

    rDPgVRZrvQe5pcVu

    • Lay the desktop on its side with the glass case facing up.

    • Remove the single screw.

  2. K45DSRvGxlSAxhAs

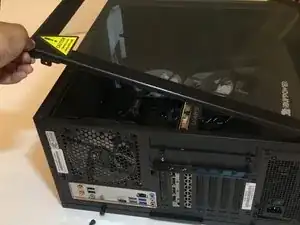

    K45DSRvGxlSAxhAs

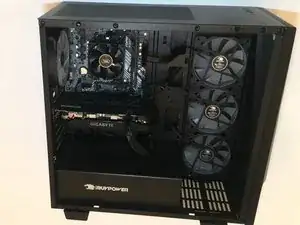

    4EHIn1kL5GtTtlVZ

    • Remove the glass side by pivoting it up with the bottom side still seated in the notches.

    • Lift the glass side out of the notches and set it to the side.

  3. wHxsKNyPfFRJVWIU
    wHxsKNyPfFRJVWIU

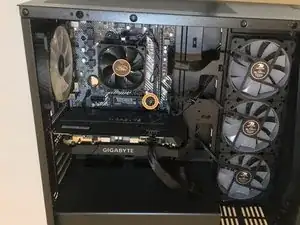

    uICltIQN55jMTGwA
    MfnHwYVZXYFMEguD

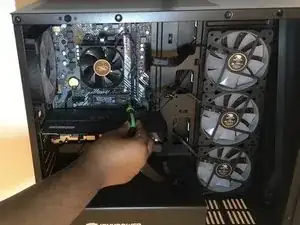

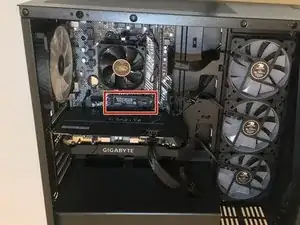

    • Locate the M.2 drive that is right above the CPU.

    • Remove the screw on the edge of the drive.

  4. lVdxOaSAjTbVOr2c

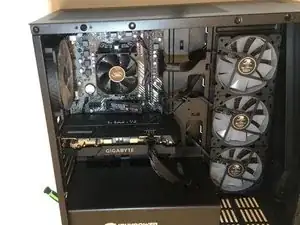

    lVdxOaSAjTbVOr2c

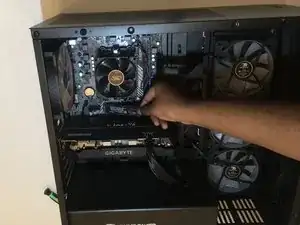

    6Tk2Fdb4M6iOoH4m

    • The drive should lift up on the edge where the screw was.

    • Pull the drive out at an angle from the motherboard.

  5. Z2wu2kPYFTTXRZZW

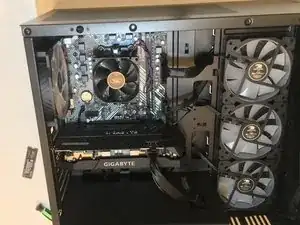

    Z2wu2kPYFTTXRZZW
    torccmIsZF6PGh4T

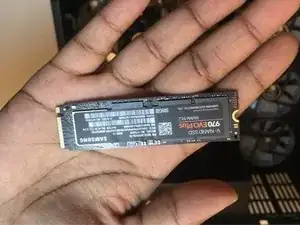

    • Line the new drive up with the slot and gently slide it in.

    • Use one finger to hold the drive down while you screw it back in.

Abschluss

To reassemble your device, follow these instructions in reverse order.
