iBook G3 12" Display Inverter Replacement

Geschrieben von: Ben Eisenman
  • Kommentare: 3
iBook G3 12" Display Inverter Replacement

Schwierigkeitsgrad

Very difficult

Schritte

19

Zeitaufwand

Keine Schätzung

Einleitung

Replace a faulty display inverter with the display attached to your iBook.

  1. hrdON2aDSgeNeU2G

    • Use a coin to rotate the battery locking screw 90 degrees clockwise.

    • Lift the battery out of the computer.

    Also unplug the computer just before taking the two steps described above.

    Ken Horner -

  2. jC32ZpNlmDsJq6Ul
    jC32ZpNlmDsJq6Ul
    x1UaUMfCNMSYNvG6

    • Use a 1.5mm hex screwdriver to remove the two hex screws on either side of the display (four screws total).

    • If you don't have a 1.5mm hex driver, you can probably get these screws out with a T6 Torx screwdriver. However, if you use a T6 Torx driver you'll be more likely to strip the screws.

  3. OmiR2keh1rpWpIow
    OmiR2keh1rpWpIow
    WgsLwJlnASFSSIVW

    • Insert the flat end of a spudger perpendicular to the face of the display into the gap between the front and rear bezels near the upper left corner of the display.

    • Rotate the spudger away from the display to pry the rear bezel off the front bezel.

  4. cT5EBDL6NEDEcI2k

    • Run your spudger along the top edge of the front display bezel to evenly separate the two bezels.

  5. IQdoYy21oPc1PYmL
    IQdoYy21oPc1PYmL
    VgJwipRQUTHWLX1U

    • Working down from the upper left corner, use the flat end of a spudger to pry the rear bezel away from the left edge of the display.

  6. xpJHSJBjK1umUiFW

    • Use the flat end of a spudger to pry the rear bezel away from the right edge of the display.

    • If necessary, pry along the bottom edge of the rear bezel to separate it from the display assembly.

  7. AJhmFapJ3U6lku4B

    • Lift the rear bezel off the display assembly.

  8. LWwYwmUoKNPUlaic
    LWwYwmUoKNPUlaic
    2XaXWMHxoD1YdLVO

    • Close the display.

    • Remove the small pieces of yellow tape securing the thin metal LCD cover to the display.

    • Remove the large piece of tape near the right display hinge.

  9. OLGIAlyGHSHcGXAD
    OLGIAlyGHSHcGXAD
    5Mw3P2BjmTnitMrs

    • Remove the tape covering the inverter cable connector.

    • Remove the piece of foil tape near the center of the thin metal LCD cover.

  10. Qj4K6UeJGL3PFhRk
    Qj4K6UeJGL3PFhRk
    vxyDJ1PQnoiZtSh6

    • Remove the Phillips screw near the right display hinge.

    • Use the tip of a spudger to remove the small spacer under the screw you just removed.

  11. 3AOXRRYfiAtvAMBW
    3AOXRRYfiAtvAMBW
    YompKfnaBNR3ZTKm

    • Pull the foil/braided pieces of tape off the aluminum frame of the clutch hinges. Leave the tape attached to the thin steel LCD cover.

    • Remove the small piece of tape holding the display data cable ground strap to the LCD cover.

  12. AHK2PAMcrRefiFdY
    AHK2PAMcrRefiFdY
    vPcMFgK3r6lOZCUr

    • Remove the two Phillips screws securing the left and right sides of the LCD to the frame of the clutch hinges (four screws total).

  13. OGRNqPLDmJpO26yK

    • Carefully remove the thin steel LCD cover.

  14. hSpaNJqWMnJMbiFj
    hSpaNJqWMnJMbiFj
    5wDBraCKKUcfVMZN

    • Remove the long piece of tape securing the display data cable to the LCD.

    • Disconnect the display data cable by pulling the cable away from the socket on the LCD.

  15. YwnsLrQlUBGcTLIm

    • Disconnect the backlight cable from the inverter.

    • It is helpful to use a spudger to push the backlight connector away from its socket while you lightly pull its cables away from the inverter.

  16. mCTVQdTGCTGuLrsI
    mCTVQdTGCTGuLrsI
    suBe6FMgqMJu1yXk
    aCGtqHfJT2khTHL5

    • Open the display.

    • Lift the LCD out of the display assembly.

  17. MHSCY5Q1eVDIOWDV

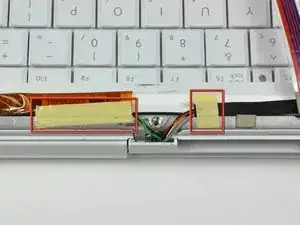

    • Remove the pieces of tape holding the inverter and the inverter cables to the clutch hinges.

    I think something is lost between step 7 and 8. Where is the LCD display gone? And, How can I disamble it?

    aldeaglobal -

    Zitat von aldeaglobal:

    I think something is lost between step 7 and 8. Where is the LCD display gone? And, How can I disamble it?

    Thanks for finding the error! It should be fixed now.

    Andrew Bookholt -

  18. EEhiFe1SCKLO3wLa

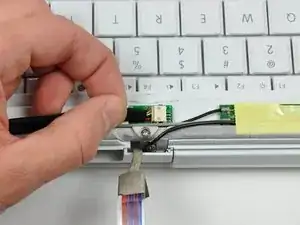

    • Disconnect the inverter cable by pulling its connector away from the socket on the inverter board.

    • The inverter board is a very thin and delicate circuit board that is easily broken. Use caution.

    • This connector tends to stick in its socket. It is helpful to push the connector with the tip of a spudger through the two small holes in the top of the socket while pulling the connector away from the socket.

    • Make sure to grasp the inverter cabling by the black tape and not the individual wires. Pulling the wires themselves will surely damage the inverter cable.

  19. gxVUXwqfbZyDwYoR
    gxVUXwqfbZyDwYoR
    NraGCiFGfFOKQkwg

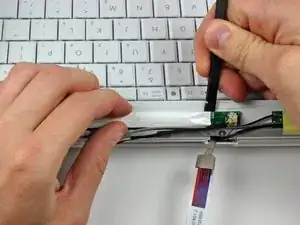

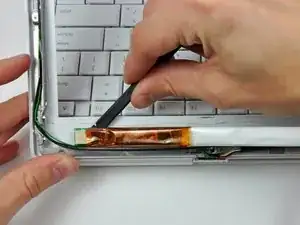

    • Insert the flat end of a spudger under the middle of the inverter board.

    • Slide the spudger to the far left and right edges to separate the inverter board from the adhesive securing it to the front bezel.

    • Remove the inverter board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
