iBook G3 14" Airport Card Replacement

Geschrieben von: iRobot
  • Kommentare: 0
iBook G3 14" Airport Card Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

Install an original Airport 802.11b card internally.

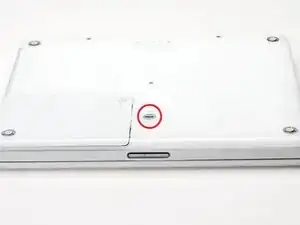

  1. F2vTAmGwLVVErr4j

    • Use a coin to rotate the battery locking screw 90 degrees clockwise.

    • Lift the battery out of the computer.

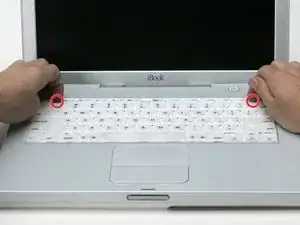

  2. IFIDSDbZ54YVe3XH

    • Pull the keyboard release tabs toward you and lift up on the keyboard until it pops free.

    • If the keyboard does not come free, use a small flathead screwdriver to turn the keyboard locking screw 180 degrees in either direction and try again.

    • Flip the keyboard over, away from the screen, and rest it face-down on the trackpad area.

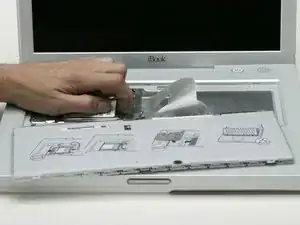

  3. LnCp6rFE2LPHBRuC

    • If your computer does not have an Airport card installed, skip to the RAM shield removal step.

    • Push the wire clasp toward the Airport card and pull it up to free it from the RAM shield.

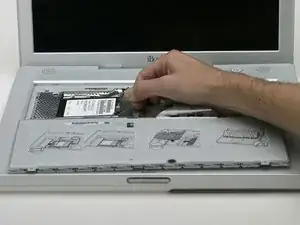

  4. MUUg45XAuk2excGY

    • Grasp the clear plastic tab on the Airport card and pull toward the right.

  5. PiatynMMCKXwNFNP

    • Hold the Airport card in one hand and use your other hand to remove the antenna cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
