iBook G3 Clamshell CD Faceplate Replacement

Geschrieben von: iRobot
  • Kommentare: 3
iBook G3 Clamshell CD Faceplate Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

Replace or change the CD drive faceplate.

  1. SFNXXLIPAVtTfoBc

    • Use a coin to turn both battery locking screws 90 degrees to the left.

    • Remove the battery cover.

    • Remove the battery from the computer by pulling up on the plastic tab.

  2. 6UIEQBwGsK2ZFE1V

    • Use a straightened paperclip to manually eject the CD-ROM tray.

  3. A6JyCFDUE6PJNdrf

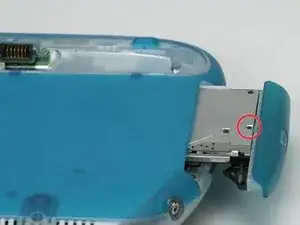

    • Remove the single black Phillips screw from the center of the CD-ROM bezel.

  4. uEKMEkmXFce63uNW

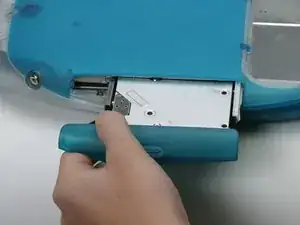

    • Grasp the CD-ROM bezel and rotate it upward to remove it from the drive.

    If you rotate the bezel upward as described- you SNAP OFF THE TAB THAT YOU REMOVED THE SCREW FROM, which is what ATTACHES the bezel to the drive!!!. THANKS!

    quayd -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

iRobot

Mitglied seit: 25/09/09

0 Reputation

2 Kommentare

There are two small black phillips screws which ALSO need to be removed ...... on some models. Although appearing identical, these covers are "similar" but NOT interchangeable between models of CD-Rom.

John Foster -

Help I've broke my drive cover and it won't go back on how do I fix that

Mr. Yee Macinuwm -
