iDea USA CT 1020 Screen Replacement

Geschrieben von: Nathanael Carlson
  • Kommentare: 1
iDea USA CT 1020 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

25 Minuten

Einleitung

Replace the screen correctly and completely. First by removing the backing plate. Then removing the electrical ribbon connections. Next, remove the camera and battery. Then Remove the screws holding the screen and the motherboard in place. Lastly remove the screen.

  1. cAGtROLAyCl1VfkG

    • Start by powering off the device.

    • Place the device on a clean surface with the screen facing down.

  2. y4bAbLrQuSys1Lgp
    y4bAbLrQuSys1Lgp
    fRvHowvAHQoGqLWL

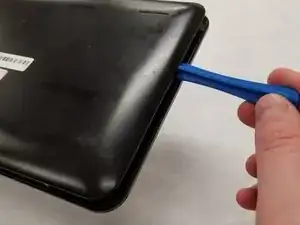

    • Gently apply pressure to the back of the device where the backing case and screen meet.

  3. LKIPPdLmsaRP21mT
    LKIPPdLmsaRP21mT
    gqmVEkTN6eGJWLih

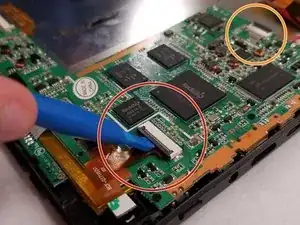

    • Using a spudger or an iFixit opening tool, lift and release the camera assembly ZIF tabs.

    • Gently pull the ribbon cable free.

    • Repeat this for the other tab.

  4. Zet4hGVDPUZGL31r
    Zet4hGVDPUZGL31r
    aiW5GMyuw5FFjl1t
    V4JL3LD6NfMyC1KV

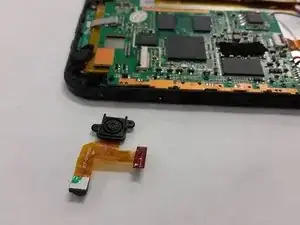

    • Remove the disconnected camera by simply pulling it out of its socket.

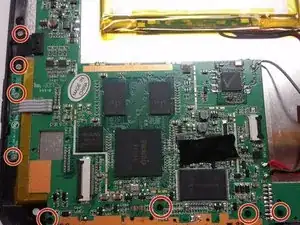

    • Remove eight 25mm JIS #00 screws securing the motherboard.

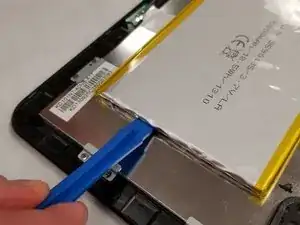

    • The battery is glued to the back of the screen. Gently pry the battery off the screen, being careful not the bend the battery.

  5. Awlnm6NBDJFjOgDM

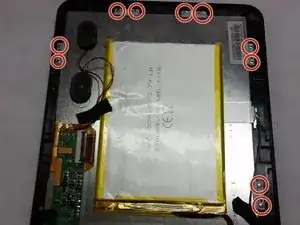

    • Remove ten 25mm JIS #00 screws securing the screen.

  6. T5HIXoCQHgiNA6DU
    T5HIXoCQHgiNA6DU
    HfWJA2Jy6JNZPpOK

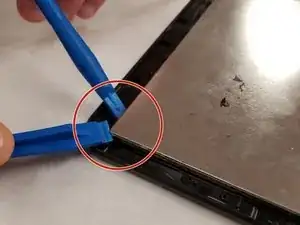

    • Wedge the edges of the opening tools into the gap between the screen and the screen casing.

    • Be very careful while prying the screen from its casing to avoid damage.

Abschluss

To reassemble your device, follow these instructions in reverse order.
