iDea USA CT702 Button Replacement

Geschrieben von: Daniel Brandt
  • Kommentare: 0
iDea USA CT702 Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

This guide demonstrates how to remove and replace the button keys of am iDea USA CT702 in order to preserve the function of the device.

  1. tSvVchAVDHeWQweK
    tSvVchAVDHeWQweK
    cQpphLNoh1uDNhUd
    QOYlLpeUEnKNR2fT

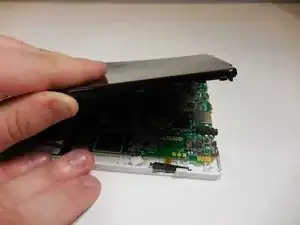

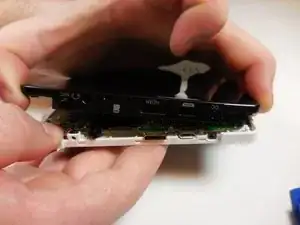

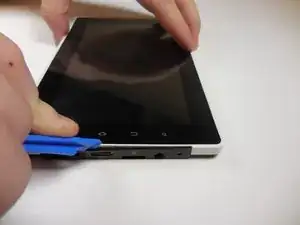

    • Place the device face up.

    • Use a plastic opening tool to gently pry open the black panel around the portholes.

  2. S2BFnf5YZqQBeKEj
    S2BFnf5YZqQBeKEj
    ZtHKZFJL1pCZKgEt
    ityYOCAdwfruEUBA

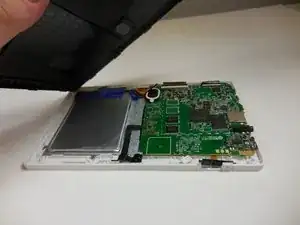

    • Pry the rest of the back off; slowly apply pressure from each side to break each clip connection.

  3. TkNaZGXOvrNwS6sf
    TkNaZGXOvrNwS6sf
    iHLNbLaSsBgxCUP1

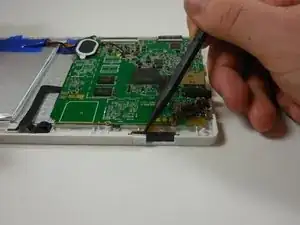

    • With a plastic spudger tool, pry the keys away from the black key mat to remove them.

    • It is easiest to start with the volume up button key and then work on freeing the next two.

  4. vcttPRniAehMMCXN
    vcttPRniAehMMCXN
    RnBsBwMsyRWOFwmo

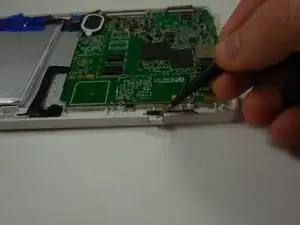

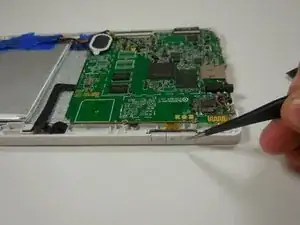

    • Replace the button keys, starting with the outer and ending with the innermost key.

    • The back of each button key has a notch that matches an indent on the black button mat. Match the notches and the indents to properly align the buttons.

    • To replace the back cover, follow the first three steps in reverse order.

Abschluss

To reassemble your device, follow these instructions in reverse order.
