iDea USA CT702 Digitizer Glass Replacement

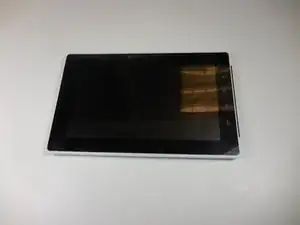

Place tablet on the table with screen facing upright.

Starting from the portholes, use plastic opening tool to pry in between the front panel and back cover.

Follow the opening along the corners and sides until all latches are unclipped.

Remove back cover completely and place it outside of the work area.

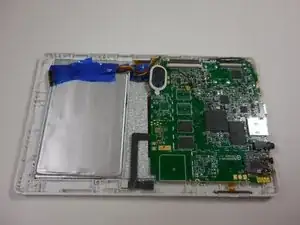

Place tablet facing down.

Locate the 4mm screws along the perimeter of the motherboard.

There should be 4 screws.

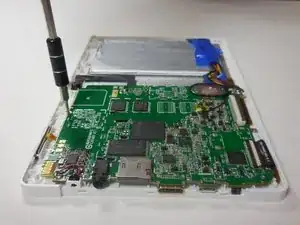

Use Philips screw driver to unscrew each one, and carefully place screws in a safe place.

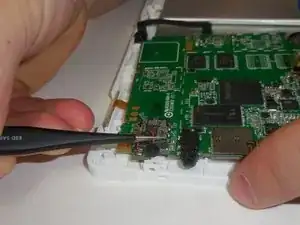

After screws are removed, gently pull up on the ribbon wire connection to release all 3 wires from the motherboard.

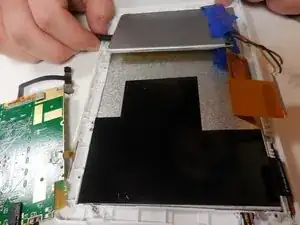

Safely remove mother board and battery from tablet by using tweezers.

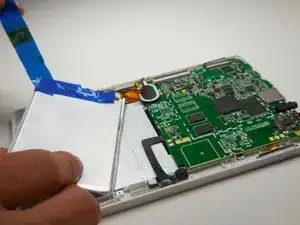

Remove tape from battery pack, and dispose.

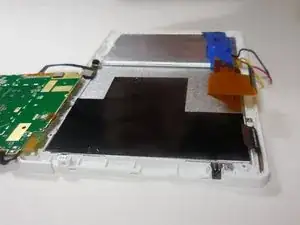

After removing the battery pack and motherboard, the touch sensor unit should be visible.

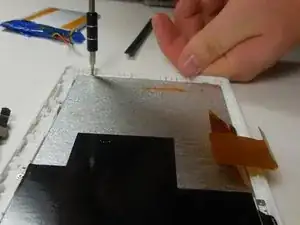

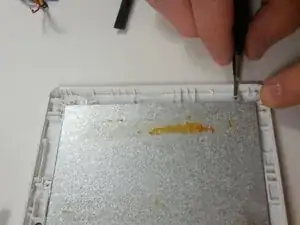

Use small Philips screw driver to unscrew all 6 of the 2mm screws.

Use fingers and prying tool to remove the touch sensor unit from frame.

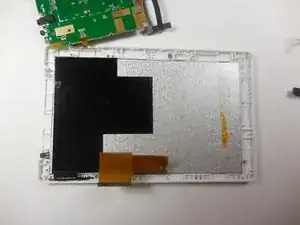

After the touch sensor is detached, only the plastic screen should remain.

Insert new touch sensor plate into the same position, aligning all screw inputs.

Insert all six of the 2mm. screws to connect the new touch sensor to the screen frame.

To continue reassembling the tablet, follow the steps in reverse.

To reassemble tablet, follow these steps in reverse order.
