iDevices iGrill Speaker Replacement

Geschrieben von: Michelle Nguyen
  • Kommentare: 0
iDevices iGrill Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

There is a small diaphragm within the device that functions as the speaker for the audio alarm. This guide contains information on how to replace it.

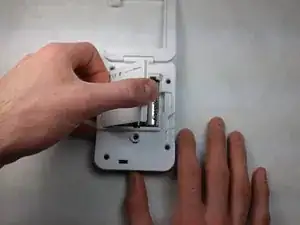

  1. KnKuxjDLWsZbIhFM

    • Remove the plastic cover from the back of the device.

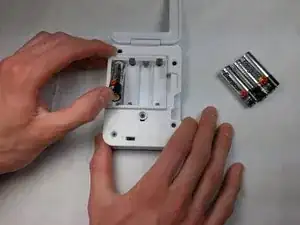

  2. p2CUxgBNYvxEGtCi

    • Remove the batteries from their positions within the device.

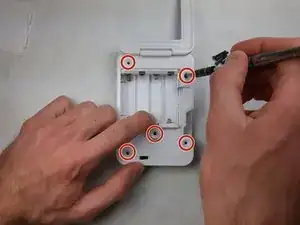

  3. TAKK1ZrpDPM4GvHm
    TAKK1ZrpDPM4GvHm

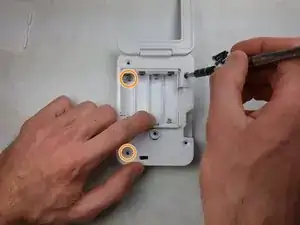

    4wlYWibiZaNW4rsY

    • Remove five black 10 mm Phillips #0 screws from the back side of the device.

    • Remove two silver-colored 5 mm Phillips from the left side of the internal cover.

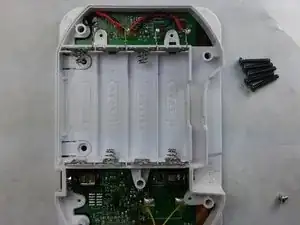

  4. dQuhsWk3F4xDYmpW

    • Separate the back cover from the main portion of the device.

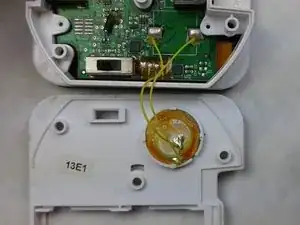

  5. cuPLRFp5PqcqtM4Z

    • Desolder the speaker wires from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
