Einleitung

This guide will describe how to replace the speaker system's iPod/iPhone input.

  1. EICJNBPBZatdYshh
    • Use your fingers to slide the battery case cover off in the direction of the arrows.

  2. PQxWhcLQTDfqShLX
    PQxWhcLQTDfqShLX
    XGh1y6wxoHdGnP5K
    XDDLuXHHCERTjppi
    • Remove the four AAA batteries. Be sure to check your nearest battery recycling point!

    • Use the detailing brush and a paper towel to remove any corrosion left by previous batteries.

  3. mBaDHeTwTxuJfibn
    mBaDHeTwTxuJfibn
    bGxTwQ5LRZ6DtGQ5
    • Unscrew the four outer 1.0 mm screws with a Phillips-Head screwdriver.

    • Screws will be magnetized in position and will require the use of tweezers to be removed.

    • Push down gently on the battery case cover and slide it in the direction the arrows indicate. Remove the batteries.

    • Unscrew the 0.6 mm screw located in the center of the battery case.

    • Keep the 1.0 mm and 0.6 mm screws separate from each other for reassembly.

  4. LOwY5cDdEeJWQhPv
    LOwY5cDdEeJWQhPv
    mVRedmsOKGr1fkWQ
    • Remove the back cover carefully; there are many wires that connect it to the device.

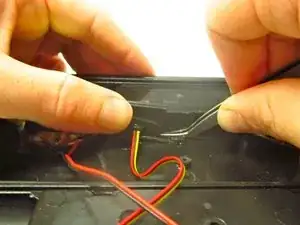

  5. ff3PjsDN1ftF1O4r
    ff3PjsDN1ftF1O4r
    1vsL6hsBrGUNmpWW
    • Locate the iPhone/iPod input that is in the center of the console.

    • Push the black plastic input stand to the left, and up, with your index finger.

    • Use tweezers to wedge the input stand out of its slot.

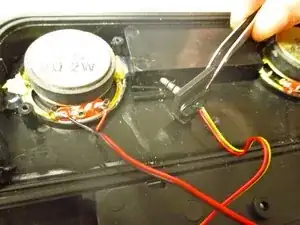

  6. W4PZh2MpArZmpUBi
    • Pull out the iPod/iPhone input with tweezers.

  7. gBguguGNjHKTAPaL
    • Gently remove the Line In chip with tweezers.

    • Note: The Line In chip is located on the left side of the device.

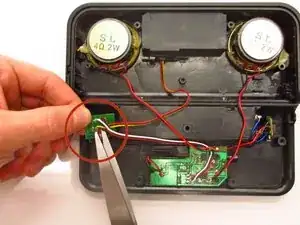

  8. QQXrH2MGnuXRuPjY
    • Use scissors to cut the black, yellow, and red wires that connect the Line In chip to the iPod/iPhone input.

    • Remove the old iPod/iPhone input and its associated wires.

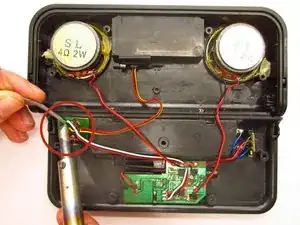

  9. eUkuUgJsG1MBh5Z2
    • Follow the instructions provided with the soldering station to preheat the gun before use.

    • Place new iPod/iPhone input wires, one by one, in their previous position on the Line In chip. Wrap a strip of soldering wire on the point of contact between the chip and input wire.

    • Use the soldering gun to melt the strip of soldering wire.

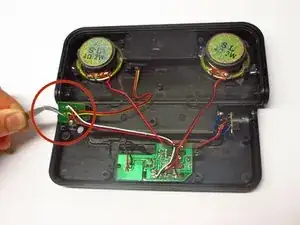

  10. J3KqgvRQwL1BnFnI
    • Use tweezers to carefully place the newly soldered Line In chip back into its original position.

  11. kZfhQyFyHPWWGUOi
    • With tweezers, insert the end of the iPod/iPhone input through its designated hole.

    • Note: The device has been rotated 90 degrees to the left in this picture.

    • With both thumbs, push in the black plastic input stand until it snaps into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
