iHome IH11 AC Power Adapter Replacement

Geschrieben von: Nick Knowles
  • Kommentare: 0
iHome IH11 AC Power Adapter Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

30 - 45 Minuten

Einleitung

Use this guide to remove the AC power adapter. For help troubleshooting click the link to our troubleshooting page iHome IH11 Troubleshooting.

  1. pyvWBXlyRYFMDW5l

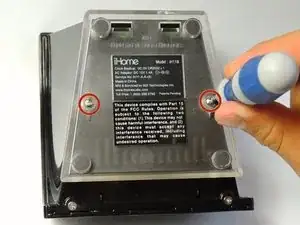

    • Unscrew the two 9.0 mm screws with the Phillips #1.

    • Remove the translucent bottom plastic piece.

  2. wGoZIMitOXYTvUEd
    wGoZIMitOXYTvUEd
    rF2qGRe6espcWaVH

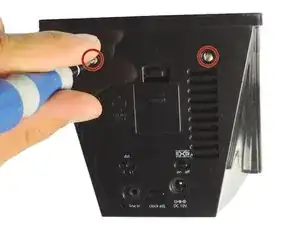

    • Remove the two 9.0mm screws on the back of the iHome with the Phillips #1 screwdriver.

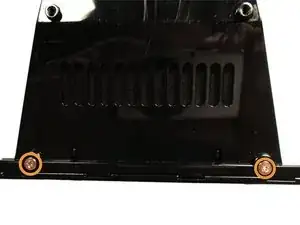

    • Repeat the previous step for the two 9.0mm screws on the bottom.

    • Carefully slide the back cover off. There are wires attached to the back cover.

  3. WCkVcU4YoAXKbnnE

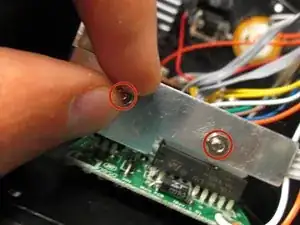

    • Remove the aluminum bracket by loosening the two nuts and removing the 8.0mm bolts with your hand.

  4. ZUuxJXbmRWqOqP5X
    ZUuxJXbmRWqOqP5X
    hGeOjKqkCdWGAxkM

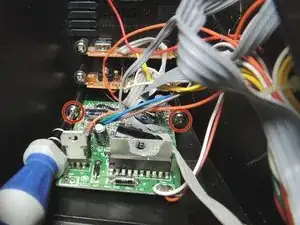

    • Remove the two 12.0mm screws that hold the motherboard with the Phillips #1 screwdriver.

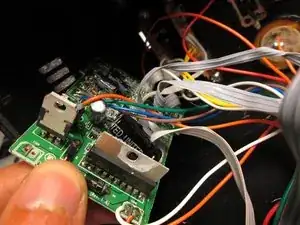

    • Slide the motherboard gently out.

  5. l542g26TQ1NVUoHQ

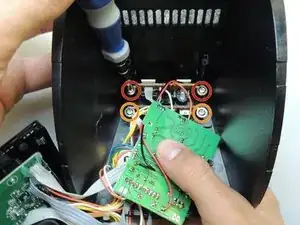

    • Remove the two 9.0 mm screws with the Phillips #1 screwdriver, then slide the circuit board for the AC adapter out.

    • Repeat the previous step by removing the two 9.0mm screws with the Phillips #1 screwdriver for the circuit board for the on/off switch.

  6. F5tNXMPFP6VCFXhh
    F5tNXMPFP6VCFXhh
    iBGtLjhsdEKKVsJY

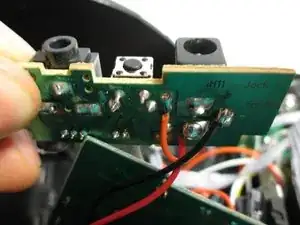

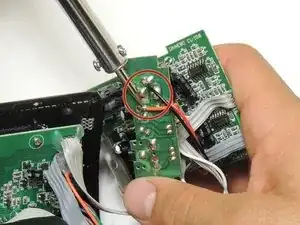

    • Unsolder the main connections holding the AC adapter to the circuit board.

    • Solder new adapter in same position with same connections.

Abschluss

To reassemble your device, follow these instructions in reverse order.
