iHome IH11 Control Buttons Replacement

Geschrieben von: Courtney Steinberg
  • Kommentare: 0
iHome IH11 Control Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

This guide will show how to install new control buttons. For help troubleshooting click the link to our troubleshooting page iHome IH11 Troubleshooting.

  1. NJt6GcPcaq2UxTqq

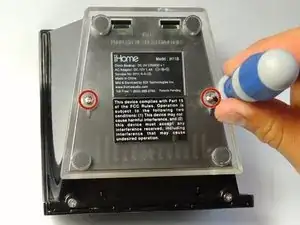

    • Unscrew the two 9.0 mm screws with the Phillips #1 screwdriver.

    • Remove the translucent bottom case.

  2. vmZsjgjbTkVemAfR
    vmZsjgjbTkVemAfR
    aZqGAAeVRsXk3aPH

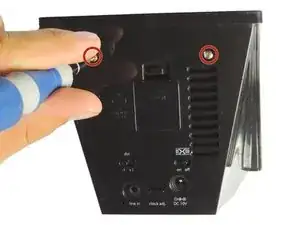

    • Remove the two 9.0mm screws on the back of the iHome with the Phillips #1 screwdriver.

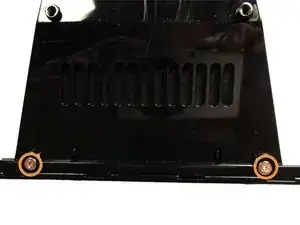

    • Repeat the previous step for the two screws on the bottom.

  3. OF33HJbmfM5DWZq3

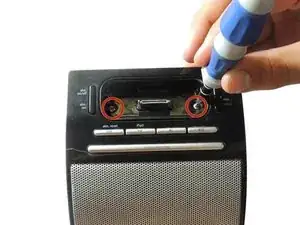

    • Remove the two 9mm screws from the top of the iHome with a Phillips #1 Screwdriver.

  4. qLpKnI3m1ooYPwVp

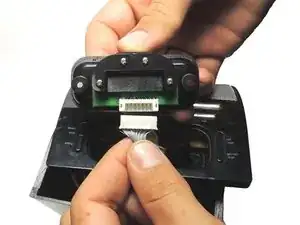

    • Pop the dock connector out of the iHome and gently pull the white plastic plug from the dock connector.

  5. RbEG5R2cUcCWEFGr

    • Carefully pull apart the device.

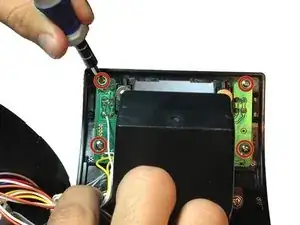

    • Remove the four screws that hold the circuit board for the buttons.

  6. cAiXlJyHhZcnJBUG

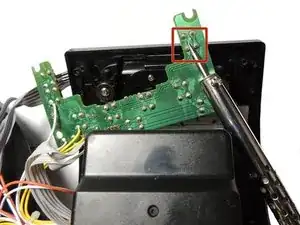

    • Desolder the four connections for the broken button.

    • Solder the new button in the place of the old one.

    • For more information about soldering, refer to the soldering device page. Soldering Skills

Abschluss

To reassemble your device, follow these instructions in reverse order.
