iHome IH11 Dock Connector Replacement

Geschrieben von: Nick Knowles
  • Kommentare: 3
iHome IH11 Dock Connector Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

Replace the dock connector on your iHome iP11, so you can play music and charge your battery once again. For help troubleshooting click the link to our troubleshooting page iHome IH11 Troubleshooting.

  1. Ah435kEnGN2mSRuM

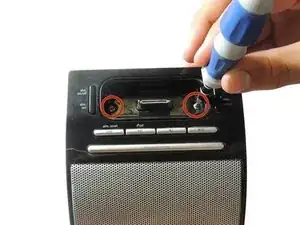

    • Remove the two 9mm screws that hold on the dock connector with a Phillips #1 Screwdriver.

  2. MENCXcvIAD6KINTe
    MENCXcvIAD6KINTe
    N4AgIOvhGZxUxjXU

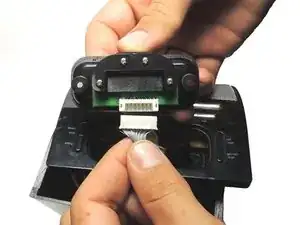

    • Pop the dock connector out of the iHome and gently pull the white plastic plug connected to the dock connector apart.

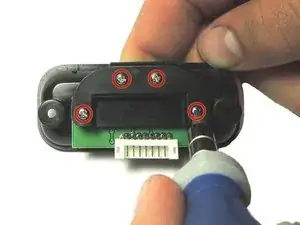

    • Remove the four 7.0mm screws with a Phillips #1 screwdriver.

  3. JKSKWNcBqHSc3WSW

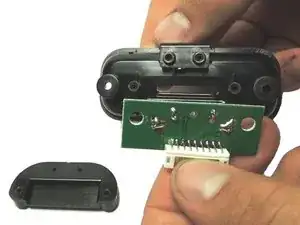

    • Remove both of the black plastic pieces. They should easily slide off of the two guide holes in the circuit board.

    • The dock connector should now be exposed. You can now simply put your new dock connector in the old one's place.

    Where can. I find the. Pin out. For this. Connector

    Roy H -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Nick Knowles

Mitglied seit: 19/04/13

21 Reputation

2 Kommentare

Where can I buy a replacement dock connector?

A Ross -

Likewise, this guide isn't much good if it uses parts that are unavailable.

CJ Shumate -
