Einleitung
This guide will show how to install a new mother board in the iHome. For help troubleshooting click the link to our troubleshooting page iHome IH11 Troubleshooting.
Werkzeuge
-
-
Unscrew the two 9.0 mm screws with a Phillips #1 screwdriver.
-
Remove the translucent bottom case.
-
-
-

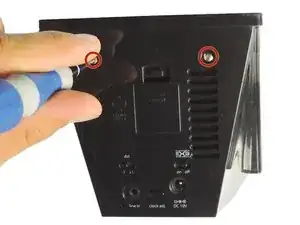

Remove the two Phillips #1 9.0mm screws on the back of the iHome.
-

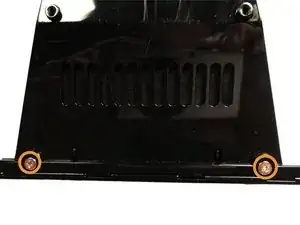

Repeat the previous step for the two 9.0mm screws on the bottom.
-
-
-

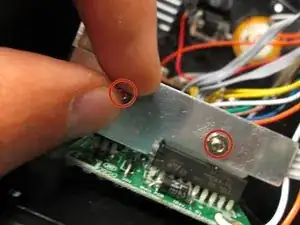

Remove the aluminum bracket by loosening the two nuts and removing the 8.0 mm bolts.
-
Pull the bracket out.
-
-
-

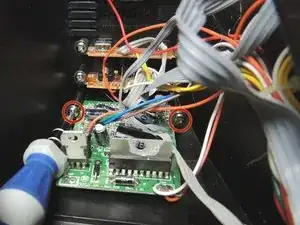

Remove the two 12.0mm screws that hold the motherboard with a Phillips #1 screwdriver.
-

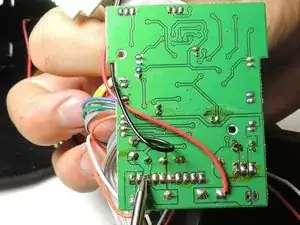

Slide the motherboard gently out.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
